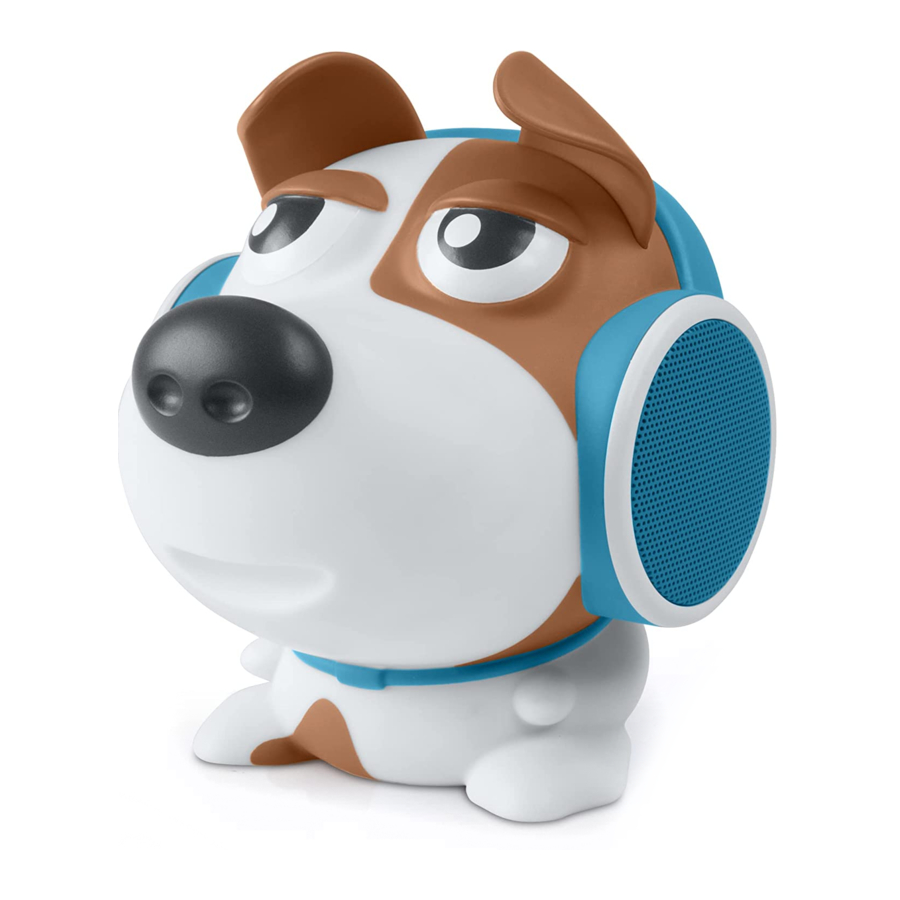

Muse M-315 DOG - Portable Bluetooth Speaker Manual

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

1. Speakers
2. Micro USB jack for charging
3. AUX IN jack
4. Power ON/OFF
5. Microphone
6. Receive call/ Transfer call/ Redial call/ End call; Play/ pause
7. Function LED indicator (blue for Bluetooth mode, red for charging)

POWER SUPPLY

The unit is powered by a built-in, lithium-polymer rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.

To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or an AC power supply.

The function LED indicator will change to red color during charging and lights off when the battery becomes fully charged.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 15 minutes, the unit will turn off automatically.

• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• When the battery is low, the sound may distort and you will hear the warning tone every 30 seconds. The unit will turn off automatically when the battery is too low to work.

OPERATION

Turning unit ON/OFF

Press to turn ON the unit. You will hear the voice "Power ON".

Long press again to turn OFF the unit. You will hear the voice "Power OFF".

Pairing a Bluetooth Device

Press to turn ON the unit. The function LED indicator will blink blue indicating it's in pairing mode. On the Bluetooth device, enable Bluetooth and select "M-315BT" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear an indication sound.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section),operate your Bluetooth device and its sound will be heard through the M-315BT's speakers.
2. Press the to pause playback. Press again to resume playback.
3. Adjust the volume via the device to which you are paired.

Note: The Bluetooth indicator will blink blue slowly during playback.

Receiving/Dialing a Phone Call

This unit is equipped with a built-in microphone, which allows you to make or end calls of a connected mobile phone through this unit. Make sure your Bluetooth-enabled mobile phone is paired with the unit. When there is an incoming call to the connected mobile phone, you will hear an incoming call alert tone from the unit.

1. Press the button to answer the incoming call.
2. Press the button again to end call.
3. To reject the incoming call, press and hold the button.
4. To transfer the sound between the mobile phone and the unit, press and hold the button during a call.
5. To redial the last number retained in the memory of the mobile phone, press the button twice.

Notes:

• Re-dialing function is unavailable if there is no dial record feature in your mobile phone.
• This unit will not operate or may operate improperly with some Bluetooth mobile phones/audio players.
• If the conversation is not clear, try to move closer to the microphone.

CONNECTING AUXILIARY SOURCE

1. Press to turn ON the unit.
2. Connect your auxiliary source (e. g. mp3 player) to the AUX IN jack on unit (cable not included). The unit will switch to AUX mode automatically.
3. Start playback of the external unit and the external audio unit's output sound will be heard through the M-315BT's speakers.
4. Adjust the volume to desired level.
5. To stop playback, disconnect the audio cable from the AUX IN jack. The unit will switch to Bluetooth mode automatically.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Power is not on; Press to turn ON the unit.
• Make sure the battery is recharged.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The audio cable is plugged in. Unplug cable if not using AUX IN function.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

RECHARGEABLE BATTERY

Battery Type: 3.7V 1000mAh Lithium-polymer Battery

Charging voltage: DC 5V 500mA

Operating Time: Approx. 6 hours at 50% volume after fully charged

Charging Time: Approx. 3.5 hours

BLUETOOTH

RF Output Power: -2.709 dBm

Bluetooth Version: V4.1

Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside the unit. Refer all servicing to qualify personnel.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

• The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in moderate climates.
• The apparatus should not be exposed to dripping or splashing.
• Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• The marking plate is located on bottom of the device.
• Under the influence of electrical fast transient or / and electrostatic phenomenon, the product may malfunction and require user to power reset.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Hereby, NEW ONE S.A.S, declares that this MUSE M-315 DOG is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
