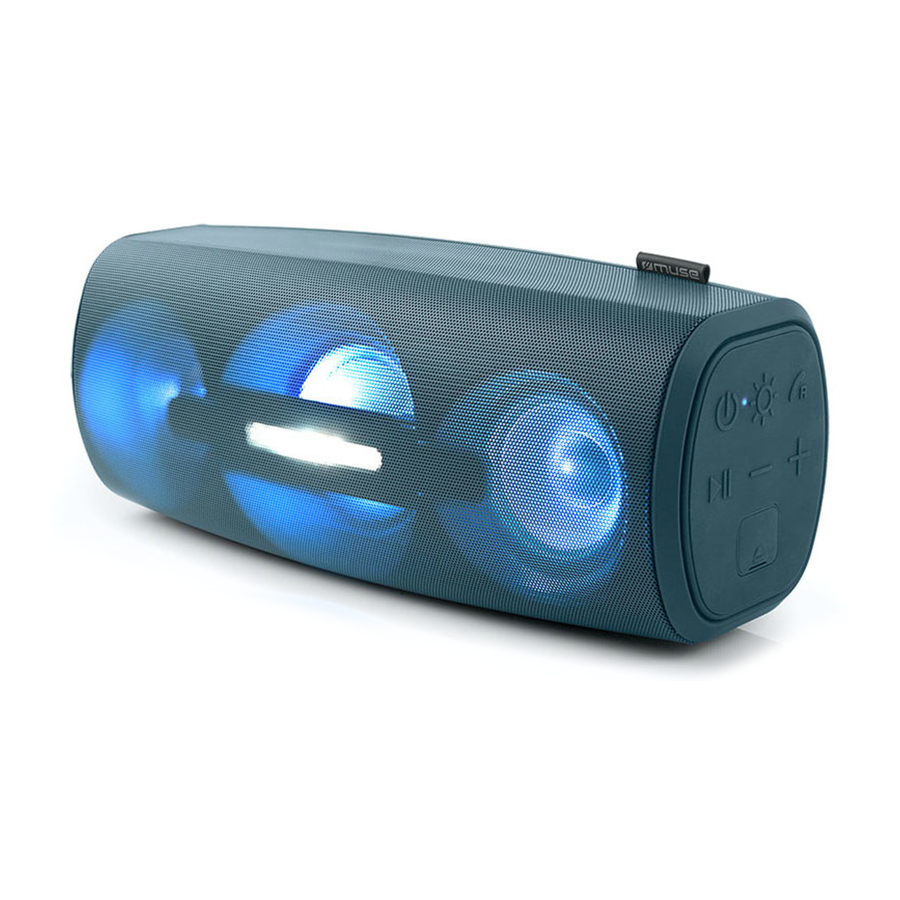

Muse M-930 DJ - Splash Proof Portable Bluetooth Speaker Manual

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

1. Power ON/OFF
2. Lighting control Button
3. Receive call/ Transfer call/ Redial call/ End call
4. : Long press to increase the volume; short press to skip to next track
5. : Long press to decrease the volume; short press to skip to previous track
6. Play/Pause Button
7. USB charge
8. Function LED indicator (blue for Bluetooth mode, green for AUX IN mode, red for charging)
9. AUX IN jack
10. DC IN
11. Handle
12. NFC tag
13. Speakers
14. Microphone

POWER SUPPLY

AC adapter:
Input: AC100-240V ~ 50/60Hz

Output: DC 15V 2.0A

Using the AC adaptor

Insert the small end of the AC adapter into the DC IN 15V jack on the rear of the unit. Insert the other end (with the 2 blades) into a conveniently located AC outlet having 110-240V ~ AC, 50/60Hz.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

Using the Built-in battery

The unit is powered by a built-in, lithium-ion rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.

To charge the internal battery, Connect the AC adapter to the DC IN 15V jack of the unit and to the mains socket. The function LED indicator will light solid red during charging and light off when the battery becomes fully charged.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 30 minutes, the unit will turn off automatically.

• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• When the battery is low, you will hear the voice "Battery low" every 30 seconds. The unit will switch to standby mode automatically when the battery is too low to work.

OPERATION

Turning unit ON/OFF

Press to turn on the unit. You will hear the voice " Power On".

Press again to turn off the unit. You will hear the voice "Power Off".

Note: Press and hold the for 5 seconds to enter into no power standby mode, the flash light will be blink. In this case, the USB charging cannot be used properly.

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

Press to turn ON the unit. The function LED indicator will blink blue indicating it's in pairing mode. On the Bluetooth device, enable Bluetooth and select "M-930DJ" from the Device List.(Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear the voice "Connected". The function LED will light solid blue.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be reestablished when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. Press to turn ON the unit. The function LED indicator will blink blue indicating it's in pairing mode.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag on unit until you hear an indication voice. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note: The operational range between the main unit and a NFC device is approximately 10 meters.

Using a Bluetooth Device

1. With a unit paired (see previous section),operate your Bluetooth device and its sound will be heard through the M-930DJ 's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Long press / buttons to adjust the volume level. You can also adjust the volume on the device to which you are paired.
4. Short press / buttons to select your desired audio file.

Receiving/Dialing a Phone Call

This unit is equipped with a built-in microphone (located at the front cabinet behind the speaker gill), which allows you to make or end calls of a connected mobile phone through this unit. Make sure your Bluetooth-enabled mobile phone is paired with the unit. When there is an incoming call to the connected mobile phone, you will hear an incoming call alert tone from the unit.

1. Press the button to answer the incoming call.
2. Press the button again to end call.
3. To reject the incoming call, press and hold the button.
4. To transfer the sound between the mobile phone and the unit, press and hold the button during a call.
5. To redial the last number retained in the memory of the mobile phone, press the button twice.

Notes:

• Re-dialing function is unavailable if there is no dial record feature in your mobile phone.
• This unit will not operate or may operate improperly with some Bluetooth mobile phones/audio players.
• If the conversation is not clear, try to move closer to the microphone. (located at the front cabinet behind the speaker gill)

Using the flash /color light

1. In standby mode, press button to turn on the color light, and multiple color change to achieve a color cycle effect. Press the button again to settle down the light, repeatedly operate to select desired color. Press and hold the to turn off the light.
   Note: The flash light cannot work in standby mode.
2. When the unit is on, repeatedly press button to select the lighting mode:
   • Both color light and flash light will be on, and change along with music.
   • Only color light will be on and change along with music.
   • Only flash light will be on and change along with music.
   • Light off.

CONNECTING AUXILIARY SOURCE

1. Press to turn ON the unit.
2. Connect your auxiliary source (e. g. mp3 player) to the AUX IN jack on unit (cable not included). The unit will switch to AUX mode automatically. The function LED indicator will change to green, indicating it's in AUX mode.
3. Start playback of the external unit and the external audio unit's output sound will be heard through the M-930DJ's speakers.
4. Adjust the volume to desired level.
5. To stop playback, disconnect the audio cable from the AUX IN jack. The unit will switch to Bluetooth mode automatically.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Power is not on; press to turn ON the unit.
• Make sure the battery is recharged.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-930DJ's volume is set to minimum; raise volume.
• The audio cable is plugged in. Unplug cable if not using AUX IN function.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

Power supply
AC adaptor:
Input: AC100-240V ~ 50/60Hz
Output: DC 15V 2.0A

RECHARGEABLE BATTERY
Battery Type: 11.1V 2200mAh Lithium-ion Battery
Charging voltage: DC 15V 2.0A
Operating Time: Approx. 8 hours at 50% volume after fully charged
Charging Time: Approx. 3.5 hours

BLUETOOTH
Bluetooth Version: V4.1
Bluetooth: 2.402-2.48GHz
RF Output Power: -2.824 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside the unit. Refer all servicing to qualify personnel.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of " dangerous voltage" inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

• The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in moderate climates.
• The apparatus should not be exposed to dripping or splashing.
• Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• The marking plate is located on back of the device.
• Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.(Waste Electrical and Electronic Equipment Directive)

Hereby, NEW ONE S.A.S, declares that this MUSE M-930 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com.

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
