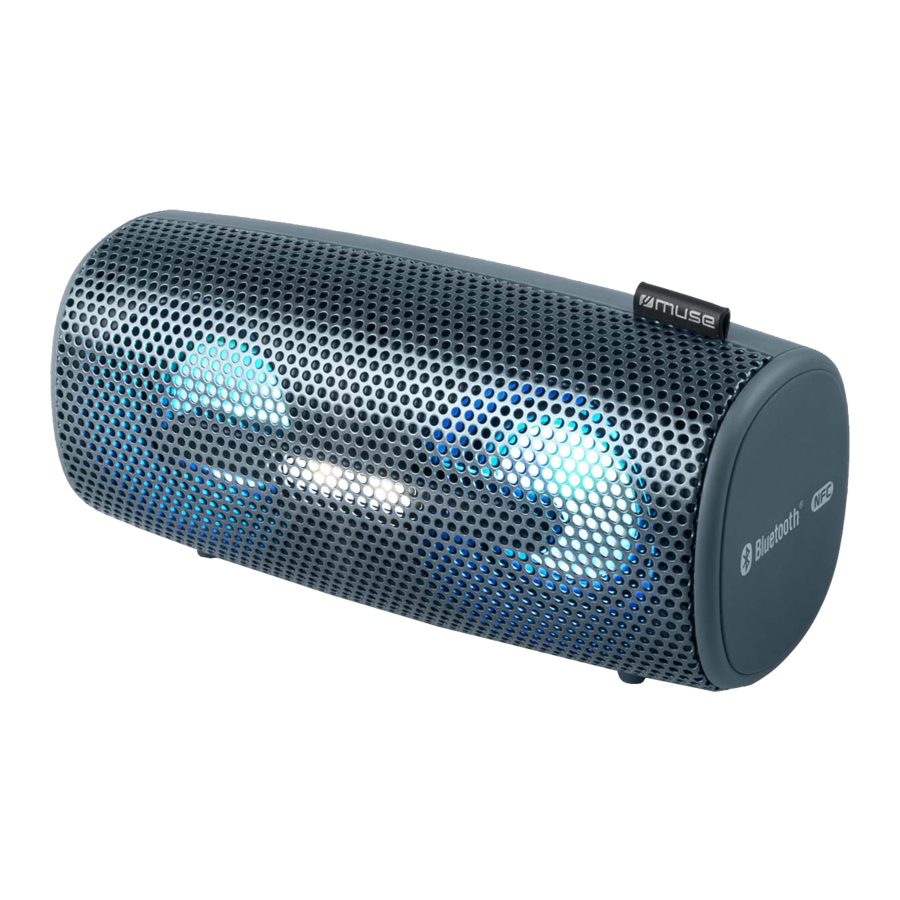

OVERVIEW

LOCATION OF CONTROLS

Power ON/OFF; Disconnect the paired Bluetooth device
Receive call/ Redial call/ End call/ Stereo pairing
Lighting control button
NFC tag
Function LED indicator (blue for Bluetooth & AUX mode, red for charging)
Microphone
Speakers
AUX IN jack
Micro USB jack for charging the built-in battery

POWER SUPPLY

The unit is powered by a built-in, lithium-ion rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.
To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or an AC power supply (not included). The function LED indicator will change to red color during charging and light off when the battery becomes fully charged.

While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F) or incinerate.
To get the longest service life of the built-in battery, charge at indoortemperature.
Attention should be drawn to the environmental aspects of battery disposal.
Do not throw batteries in fire!
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
When the battery is low, the sound may distort and you will hear the warning tone every minute. The unit will turn off automatically when the battery is too low to work.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

OPERATION

Turning unit ON/OFF
Press to turn on the unit. You will hear the voice "Bluetooth". Press and hold for 2 seconds to turn off the unit. You will hear the voice "Power Off".

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

Press to turn on the unit. The function LED indicator will blink blue rapidly indicating it is in Pairing mode.
On the Bluetooth device, enable Bluetooth and select "M-730DJ" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear the voice "Connected". The function LED indicator will blink slowly after paired successfully. If there is no pairing or pairing is not successful within 15 minutes, the unit will turn off automatically.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press button to disconnect the device, you will hear the voice "Disconnected". Then, follow the steps above to make a new connection.

On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Hereby, NEW ONE S.A.S, declares that this MUSE M-730 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

Using a Bluetooth Device

Press to turn on the unit. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-730 DJ's speaker.
Adjust the volume and select your desired track on the device which you are paired.
Press the button to pause playback. Press again to resume playback.
Note: The Bluetooth indicator will blink blue slowly during playback.

Using a NFC Device
NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

Press to turn ON the unit. The function LED indicator will blink blue indicating it's in pairing mode.
Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag of this unit. If the units are paired properly, you will hear the voice "Connected". The NFC device is connected to this unit via Bluetooth.
Select and play audio files or music on your NFC device.
To break the connection, tap the NFC device with the NFC tag on this unit again.

Note:
The operational range between the main unit and a NFC device is approximately 10 meters.

Receiving / Ending a Phone Call
This unit is equipped with a built-in microphone, which allows you to make or end calls of a connected mobile phone through this unit. Make sure your Bluetooth-enabled mobile phone is paired with the unit. When there is an incoming call to the connected mobile phone, you will hear an incoming call alert tone from the unit.

Press the button to answer the incoming call.
Press the button twice to end call.
To reject the incoming call, press button twice.
To transfer the sound between the mobile phone and the unit, press button during a call.
To redial the last number retained in the memory of the mobile phone, press the button twice.

Notes:

Re-dialing function is unavailable if there is no dial record feature in your mobile phone.
This unit will not operate or may operate improperly with some Bluetooth mobile phones/ audio players.
If the conversation is not clear, try to move closer to the microphone (located at front behind the speaker grill).

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-730 DJ to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-730 DJ.

Tips: it is suggested that the distance between the main speaker and secondary speaker is within 4 meters.

STEREO PAIRING

Turn on the two Bluetooth speakers M-730 DJ.
When both speakers are in pairing mode, press and hold button on one Bluetooth speaker which will become the main speaker (left channel) until you hear the indication voice "Searching", then it will search and connect to the secondary speaker (right channel). They will recognize the left and right channel automatically. You will hear the indication voice "Stereo Pairing" when the two speakers are connected successfully.
Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
Play your song and listen to the sound in stereo.
Press button on either speaker to pause playback. Press again to resume playback.
Press button on the main speaker to disconnect the stereo pairing.

CONNECTING AUXILIARY SOURCE

Press and hold to turn on the unit.
Connect your auxiliary source (e g. mp3 player) to the AUX IN jack on unit (cable not included). The unit will switch to AUX mode automatically. You will hear the voice "Aux in". The function LED indicator will light solid blue, indicating it's in AUX mode.
Start playback of the external unit and the external audio unit's output sound will be heard through the M-730 DJ 's speakers.
Adjust the volume and select your desired track on the external audio unit.
To stop playback, disconnect the audio cable from the AUX IN jack. The unit will switch to Bluetooth mode automatically.

USING THE FLASH /COLOR LIGHT

Once the unit is turned ON, multiple color changes and achieves a color cycle effect with flash light on. Repeatedly press button to select the lighting mode, cycling through:
Both color light and flash light will be on, and change along with music. Only color light will be on and change along with music. Only flash light will be on and change along with music. Light off. Multiple color changes and achieves a color cycle effect with flash light on.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

Power is not on; Press to turn on the unit.
Make sure the battery is recharged.

No Sound – General

External device's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

RECHARGEABLE BATTERY
Battery Type: 3.7V 1600mAh Lithium -ion Battery
Charging power: DC 5V 500mA
Operating Time: Approx. 6 hours at 50% volume after fully charged
Charging Time: Approx. 3 hours

BLUETOOTH
Bluetooth: 2.402-2.48GHz
RF Output Power: 1.007 dBm
Bluetooth Version: V5.0
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

SAFETY INSTRUCTIONS

The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
The use of apparatus in moderate climates.
The apparatus should not be exposed to dripping or splashing.
Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
Do not place objects filled with liquids, such as vases, on the apparatus.
The marking plate is located on the bottom of unit.
Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
