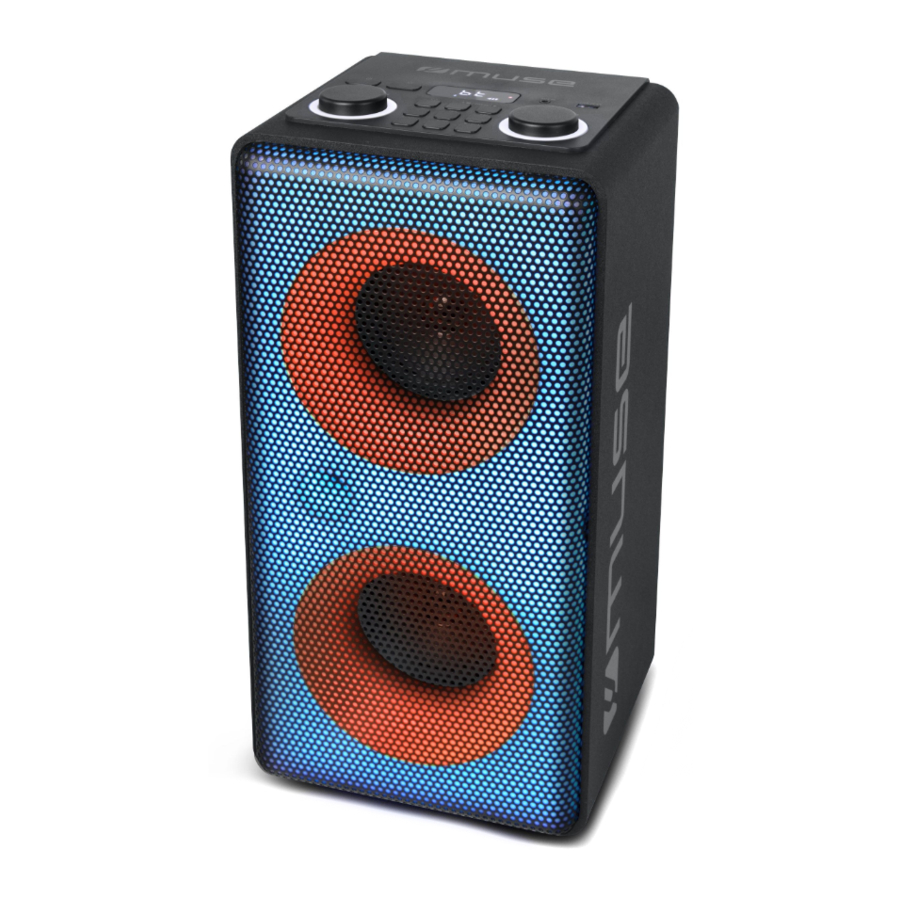

Muse M-1808 DJ - Bluetooth Party Box Speaker Manual

Table of Contents

Contents

1 LOCATION OF CONTROLS
2 POWER SUPPLY
3 TURNING UNIT ON/OFF
4 SELECTING FUNCTION
5 LISTENING TO THE RADIO
6 BLUETOOTH FUNCTION
7 STEREO PAIRING
8 USB PLAYBACK
9 PLAY MODES
10 CONNECTING AUXILIARY SOURCE
11 USING THE INPUT JACK
12 GUITAR PLAYBACK
13 SINGING THROUGH THE MICROPHONE
14 MUTE (FM AND AUX MODE ONLY)
15 COLOR LIGHT
16 TECHNICAL SPECIFICATION
17 TROUBLESHOOTING GUIDE
- 17.1 No Power
- 17.2 No Sound – General
18 IMPORTANT SAFETY INSTRUCTIONS
19 Documents / Resources
- 19.1 References
- 19.2 Download manual

LOCATION OF CONTROLS

LOCATION OF CONTROLS
Please read the instruction carefully before operating the unit.

To turn unit ON/OFF
Lighting control button
LED display
AUX IN jack (3.5MM)
USB port for MP3 playback
Repeat playback
Folder up/down; preset stations up/down
Random playback
/ Skip/Search/Tuning
To adjust mic/guitar volume
To adjust master volume
SOURCE: To select function mode: Bluetooth, FM, AUX, USB
Bluetooth pairing/Disconnect
Bluetooth connection
Play/pause
To stop playback
SCAN: Auto scan and preset radio stations
Handle
Antenna jack
INPUT jack for microphone/guitar
DC IN jack (9V 1A)
Tweeter
Loud speakers

POWER SUPPLY

Using the AC adaptor
The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

Using the Built- in battery
The unit has a built-in rechargeable battery (lithium-ion). Charge the built-in battery at least four hours before using it for the first time. The charging indicator will light red during charging and light off when battery becomes full charged.

Recharge the built-in battery when you are ready to use it again.
While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
To get the longest service life of the built-in battery, charge at indoor-temperature.
The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
The unit should not be exposed to excessive heat such as sunshine, fire or the like.
When discarding the unit, environmental problems must be considered and local rules or laws governing the disposal of such products must be strictly followed.
When the built-in battery power is low, the battery indicator will blink with a warning voice. The unit will turn off automatically when the battery is too low to work.
The unit is supplied from limited power sources.
The unit is designed with a thermal protection system. When the unit's operation temperature exceeds 45°C, it will stop charging the built-in battery automatically for protection. In this case, await the unit to cool down to resume normal.

Note: In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 10 minutes, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

Press button to turn on the unit. You will hear the voice "Power on".
Press button again to turn off the unit. You will hear the voice "Power off".

SELECTING FUNCTION

The function (BLUETOOTH/ FM/ AUX/ USB) is selected by pressing SOURCE button repeatedly.

Notes:

Once insert the USB device to the USB port of unit, it will switch to USB mode automatically.
USB mode can be selected by SOURCE button only when the USB device is connected to the unit.

LISTENING TO THE RADIO

When the unit is ON, press SOURCE button repeatedly to select FM mode. The radio indicator lights on.

Manual search

Choose your radio station with .
Adjust the volume using the .

Automatic search
Press and hold . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing .
Note: During the search operation, the sound level is automatically muted.

Auto preset
Press SCAN to start automatic preset programming. Radio frequencies will be browsed and radio stations stored automatically. When all the available radio stations are stored or all memory locations are full, the auto preset programming function will stop. You can also press SCAN button again to stop the operation. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station. Note: For best reception, extend the FM wired antenna.

Listen to station presets
Press and repeat the operation as many times as necessary to select your desired station.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will shows "". The Bluetooth indicator will start to blink rapidly, indicating it is in pairing mode.
On the Bluetooth device, enable Bluetooth and select "M-1808 DJ" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. If the unit is paired properly, you will hear the voice"Connected" and the Bluetooth indicator lights on.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press and hold the button to disconnect the device, and then follow the steps above to make a new connection.

On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1808 DJ's speakers.
Press the button to pause playback. Press again to resume playback.
Select desired track with .
Adjust the volume using the . You can also adjust the volume on the device to which you are paired.

Hereby, NEW ONE S.A.S, declares that this "MUSE M-1808 DJ" is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-1808 DJ to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-1808 DJ. Tips: it is suggested that the distance between the main speaker and secondary speaker is within 4 meters.
STEREO PAIRING

Turn on the two Bluetooth speakers M-1808 DJ. Press SOURCE button repeatedly to select Bluetooth mode for both speakers.
When both speakers are in pairing mode, press and hold button on one Bluetooth speaker which will become the main speaker (L channel), then it will search and connect to the secondary speaker. They will recognize the left and right channel automatically.
Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
Play your song and listen to the sound in stereo.
Press button on either speaker to pause playback. Press again to resume playback.
Press and hold button on the secondary speaker to disconnect the stereo pairing.

USB PLAYBACK

Connect an USB device to the USB MP3 port on unit.
Press SOURCE button repeatedly to select USB mode. The display will shows "" for a few seconds and playback will start automatically. The USB indicator lights on.
Select desired track with .
Press button to pause playback. Press again to resume playback.
Adjust the volume using the .
Press to select the first track of previous or next folder in your USB.
Press button once to stop the playback. Press to restart playback.

PLAY MODES

Repeat playback
Press button repeatedly to select a play mode. Repeat indicator will light up.

Repeat One: display shows "".
Repeat folder: display shows "".
Repeat All: display shows "".

Random playback
Press button, and display will show "" for a few seconds. It will play all tracks in random order. Press button again to cancel this function.

Notes:

The total number of MP3 files on the USB device should not exceed 999.
The device may not contain more than 99 directories.
The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
The USB socket must not be connected to the computer directly, for that may damage the unit.
There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.
If the track number is more than 999, the unit will show "999" on the LED display.

CONNECTING AUXILIARY SOURCE

Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable included).
Press SOURCE button repeatedly to select AUX mode. The display will shows "".
Start playback from your auxiliary source.
Press button to pause playback. Press again to resume playback.
Adjust the volume to desired level.
To stop playback, disconnect your auxiliary source from the AUX IN jack.

USING THE INPUT JACK

The INPUT jack of unit can be compatible with microphone set and guitar. When a guitar or microphone is connected to the INPUT jack, the display will show "" for 2 seconds. The display will show "" when disconnect from the INPUT jack.

GUITAR PLAYBACK

Press button to turn on the unit.
Plug your electronic guitar into the INPUT jack on the unit.
Start to play your guitar and the sound will be output from the unit.
Adjust the volume to desired level by rotating knob.
To stop playback, disconnect your guitar from the INPUT jack.

SINGING THROUGH THE MICROPHONE

Sing along with the music by plugging in the microphone (not supplied) into the INPUT jack on the unit.

Notes:

Rotate the directly to adjust the mic volume as desired.
If the microphone is placed near the loudspeaker, a howling effect (acoustic feedback) may occur. If this happens, place microphone away from the loudspeaker.

Tapping or dropping the microphone can permanently damage your microphone. Resist the urge to swing the microphone around by the cord.

MUTE (FM AND AUX MODE ONLY)

To turn off the sound from the speaker temporarily, press once. The display will show "". Press again to restore the sound.

COLOR LIGHT

When the unit is on, press button repeatedly to select lighting mode (mode 1/ mode 2/ off). When lighting is on, multiple color changes to achieve a color cycle effect.

TECHNICAL SPECIFICATION

AC ADAPTOR:
Input AC 100-240V 50/60Hz
Output DC 9.0V 1.0A 9.0W
RADIO FREQUENCY: FM: 87.5 -108 MHz
RECHARGEABLE BATTERY
Battery Type: 7.4V 3000mAh Lithium Ion Battery
Operating Time: Approx. 4 hours at 80% volume after fully charged
Charging Time: Approx. 5 hours
BLUETOOTH
Bluetooth Version: V5.0
Bluetooth: 2.402-2.48GHz
RF Output Power: -2.703 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

Make sure unit is connected to AC power.
Make sure the battery is recharged.

No Sound – General

External device's volume is set to minimum; raise volume.
The M-1808 DJ's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
The unit is already connected with another Bluetooth device; disconnect that device and then try again.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.
shock hazard The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.
caution The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The use of apparatus in moderate climates.
The Marking plate is located at the back of the device.
Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
Do not place naked flame sources, such as lighted candles on the apparatus.
Do not expose this appliance to dripping or splashing water.
Do not place objects filled with liquids, such as glass, vase on the device.
Do not throw batteries into fire! Respect the environment when disposing of used batteries.
Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.
The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)
