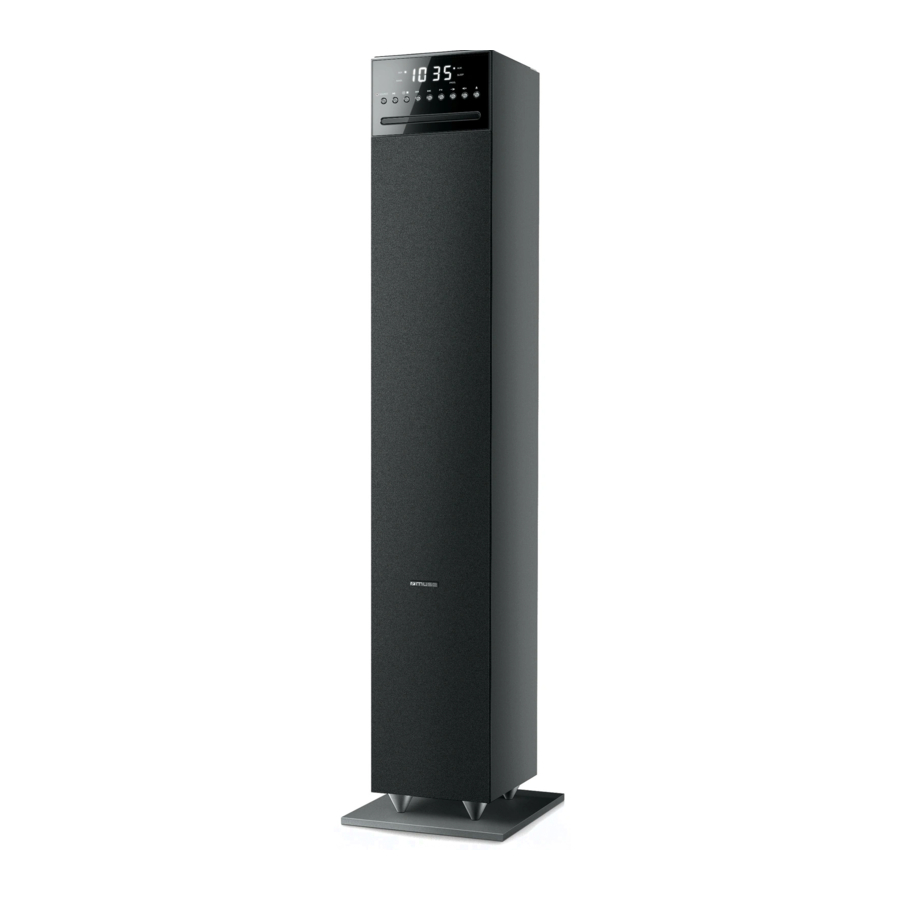

Muse M-1350 BTC, M-1350 BTCW, M-1350 DWTC - Bluetooth Speaker Manual

UNPACK THE UNIT

When you unpack your new tower, make sure that you have removed all the accessories and information papers:

• Tower speaker
• Remote control
• Aux in cable
• Installation accessories

1. Wooden base
2. Washer x 4
3. Assembly screw x 4

If you want to use your Bluetooth speaker, assembled the wooden base to the main body by the supplied screws and washers first.

LOCATION OF CONTROLS

1. LED display
2. Tweeters
3. Main speakers
4. Subwoofer
5. Bluetooth indicator
6. Remote sensor
7. / SOURCE: To turn unit on/off; To select function mode: Bluetooth, CD, FM, USB, AUX-1or AUX-2.
8. : PLAY/PAUSE
9. : Memorization / Stop playback
10. , : Skip/search /Tuning
11. P+ : Radio preset up
12. : To adjust volume
13. : To open / close the disc tray
14. CD compartment
15. USB port for charging
16. AUX IN jack (3.5mm)
17. USB port for MP3 playback
18. NFC Tag
19. FM wire antenna
20. AUDIO IN L/R RCA jacks
21. AC Power Cord
22. Random indicator
23. Repeat indicator
24. Program indicator
25. Alarm indicator
26. Sleep indicator
27. Cradle for tablet or Smartphone

CRADLE FOR TABLET OR SMARTPHONE

1. Push to lift up the cradle cover.

2. Place your tablet or smartphone on the cradle.


REMOTE CONTROL

1. To turn unit on/off
2. : To mute or restore sound
3. SOURCE: To select BLUETOOTH, CD, FM, USB, AUX-1or AUX-2 mode.
4. : To adjust volume
5. EQ button: To select desired sound effects: FLAT /CLASSIC /ROCK / JAZZ / POP
6. LD button: Loudness On/Off
7. DIMMER button: To adjust display brightness
8. AUDIO button: To adjust Bass/ Treble
9. ALARM / SLEEP button: To set alarm time; To select sleep time.
10. CLOCK / / : To set clock time; Stop playback; To preset radio station
11. To open / close the disc tray
12. : Preset up/ down; Folder up / down
13. : Skip/search /Tuning
14. / PAIRING: PLAY/PAUSE; Bluetooth pairing function
15. REPEAT button: To repeat playback
16. RANDOM button: To turn on/off random play function
17. ATS / PROGRAM: Auto scan and preset radio stations; To program playback sequences
18. 0-9, +10 buttons

INSTALLING BATTERY

Insert 2 "AAA/ UM4" batteries to the remote control prior to use. Make sure to match their polarities (+/-) to the markings inside the compartment.

Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

• Never recharge the batteries, apply heat to them or take them apart.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

POWER SUPPLY

This set operates on AC 100-240V 50/60Hz.

Connect the power cord to a convenient AC wall outlet.

Note: In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 2 hours, the unit will automatically switch to Standby mode.

SETTING TIME

1. In standby mode, press CLOCK once to enter time setting mode and the hour digits flash.
2. Press on unit or on remote control to set the hour value. Press CLOCK to confirm and minute digits flash.
3. Press on unit or on remote control to set the minute value and press CLOCK again to confirm.

AUDIO CONTROLS

LOUDNESS

Press LD button on remote control to turn on / off loudness.
Loudness on: the display shows ""
Loudness off: the display shows ""

BASS/TREBLE

Press AUDIO button on remote control to select Bass or Treble function, the corresponding icon will appear on display, then press or to set bass or treble level. Release the button to confirm the setting.

EQ

Press EQ button on remote control to toggle among the different sound effects (FLAT/ CLASSIC /ROCK / JAZZ / POP). The selection will show on display for few seconds.

TURNING UNIT ON/OFF

1. Press button to turn on the unit.
2. Long press button on unit or short press button on remote control to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: Bluetooth, CD, FM, USB, AUX-1 or AUX-2.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, Press SOURCE button repeatedly to select Bluetooth mode. The display will show " " for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly.
2. On the Bluetooth device, enable Bluetooth and select "M-1350 BTC" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication voice when pairing is successful.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

If the pairing fails, perform the following:
Press and hold the PAIRING button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-1350 BTC" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1350 BTC's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with .
4. Adjust the volume using the / Volume buttons. You can also adjust the volume on the device to which you are paired.

Note: The Bluetooth indicator will blink slowly during playback.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. When the unit is ON, Press SOURCE button repeatedly to select Bluetooth mode. The display will show "" for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag on unit until you hear an indication voice. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note: The operational range between the main unit and a NFC device is approximately 10 meters.

Hereby, NEW ONE S.A.S, declares that this MUSE M-1350 BTC/M-1350 DWTC/ M-1350 BTCW is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

LISTENING TO DISC

1. When the unit is ON, Press SOURCE button repeatedly to select CD mode. The display will show "" for a few seconds. Press to open the disc tray. Insert a disc with label side facing up. Press again to close the disc tray. (Note: If there is no disc inserted, the display will show "" ).
2. After a few seconds, the total number of track will appear on display for a few seconds and playback starts automatically.

RADIO

Listening to the radio

When the unit is ON, press SOURCE button repeatedly to select FM mode. The display will show "" for a few seconds and change to current frequency and then change to clock time.

Manual search

1. Choose your radio station with or .
2. Adjust the volume by or to the desired level.

Automatic search

Press and hold or for few seconds. The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .

Note: For a better reception in FM, extend the antenna.

Preset stations

The unit can store 30 FM stations.

Manual storage:

1. Select a radio station manually or in automatic search.
2. Press . "" appears on the screen.
3. Press P+ on unit or on remote control to select a preset channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Automatic storage

Press ATS on remote control and the unit will automatically save the first 30 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listen to the station presets

1. Press P+ on unit or on remote control to select your preset station.
2. Adjust the volume by or to the desired level.

USB PLAYBACK

1. Connect an USB device to the USB MP3 port on unit.
2. Press SOURCE button repeatedly to select USB mode. The display will show "" for a few seconds and playback will start automatically.
3. Select desired track with .

Notes:

• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAY MODES (CD/MP3)

Repeat playback

Press REP button on remote control repeatedly to select a play mode, Repeat indicator will lights up

• Repeat One: display shows "".
• Repeat folder: display shows "". (MP3 only)
• Repeat All: display shows "".

To cancel repeat playback, press REP button repeatedly until display shows " " and repeat indicator disappears.

Random playback

Press RAND button on remote control. Random indicator lights up. It will play all tracks in random order. Press RAND button again to cancel this function. Random indicator lights off.

Program playback

1. In stop mode, press PROG button on remote control. The display will show "" for a few seconds and change to "". Program indicator lights up.
2. Select the desired track with , then press PROG button to conform.
3. Repeat above steps to program up to 32 tracks for CD and 99 tracks for MP3.
4. Press to start program playback.
5. Press button on remote control once to stop the program playback. Press twice to cancel this function.

Select a folder (mp3 only)

• Press on remote control to select the first track of next folder of your current disc or USB.
• Press on remote control to select the first track of previous folder of your current disc or USB.

By number buttons +10, 0-9

Use the number buttons to input the track number, and it will start playback from the selected track automatically.
If you want to input the track number bigger than 9, use the +10, 0-9 button. Example 1: to select the 10th track, firstly press 1 then press 0
Example 2: to select the 14th track, firstly press 4 then press +10 (4+10=14)
Example 3: to select the 25th track, firstly press 5 then press twice +10 (5+10+10=25)

CONNECTING AUXILIARY SOURCE

To AUDIO IN RCA jacks

1. Connect your auxiliary source (e.g. DVD player) to the AUDIO IN L/R jacks on back of unit with RCA audio cable (cable not included).
2. Press SOURCE button repeatedly to select AUX 1 mode. The display will show "" for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUDIO IN L/R jacks.

To 3.5mm AUX IN jack

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable included).
2. Press SOURCE button repeatedly to select AUX 2 mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

SETTING THE ALARM

Setting the alarm

In standby mode, press ALM once to enter alarm setting mode. The display will show "".

1. Press on unit or on remote control to enter alarm setting mode. "" appears on display. Press ALM to confirm and the hour digits flash.
2. Press on unit or on remote control to set the hour value. Press ALM to confirm and minute digits flash.
3. Press on unit or on remote control to set the minute value and press ALM again to confirm. The alarm indicator remains on.

Note: The alarm indicator will blink when the alarm time is reached.

NOTES:

• The alarm will wake up to the previous mode (Bluetooth, CD, FM, USB, AUX1 or AUX2) when the alarm time is reached. Select your desired wake-up mode before the unit is turned off.
• If there is no audio input from your selected wake-up source when the alarm time is reached, it will switch to FM mode automatically after approximate one minute.
• If the wake-up source is FM mode, select your desired radio station before the unit is turned off.

Stopping the Alarm

• Alarm stop
  Press . The alarm will sound again the next day at the same time. Alarm indicator remains on.
• Alarm Cancellation
  1. In Standby mode, press ALM to enter alarm setting mode.
  2. Press / on unit or / on remote control to select "" and press ALM again to cancel the alarm permanently. The alarm indicator lights off.

SLEEP FUNCTION

In sleep mode, the unit will turn off automatically after a specified time.
You can select duration in minutes before the unit turns off automatically.

1. Press SLEEP on remote control repeatedly to select 90-60-45-30-15-10 or 5 minutes of listening. The SLEEP Indicator lights up.
2. To cancel the sleep function, repeatedly press SLEEP button until "00" is displayed. The SLEEP indicator lights off.

Note:

1. Sleep time can only be set when the unit is turned ON.
2. Press SLEEP button to check the remaining sleep time.

DIMMER

Press DIM button on remote control to select the brightness of the screen: high, low or off.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A ) for recharging your mobile device (e.g. Smartphone, tablet, etc. )
Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

MAINTENANCE

Cleaning

Disconnect the unit from the mains supply before cleaning.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Notes on disc

* Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
* Do not place more than one disc in the disc compartment.
* Do not try to open the disc compartment during playing.
* Do not touch the lens. Doing so may cause malfunction.
* If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.

• Before transporting the unit, remove the disc from the disc compartment.

TECHNICAL SPECIFICATION

GENERAL

POWER SUPPLY: AC 100-240V 50/60Hz
Consumption: 60W

BLUETOOTH

Bluetooth Version: V4.1
Bluetooth: 2.402-2.48GHz
RF Output Power: -3.208 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

RADIO

FM 87.5-108MHz
Specifications are subject to change without notice.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Make sure unit is connected to AC power.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-1350 BTC's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

Documents / Resources

References

• MUSE Electroménager - Découvrez la collection ! - MUSE

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Muse M-1350 BTC, M-1350 BTCW, M-1350 DWTC - Bluetooth Speaker Manual
