OVERVIEW

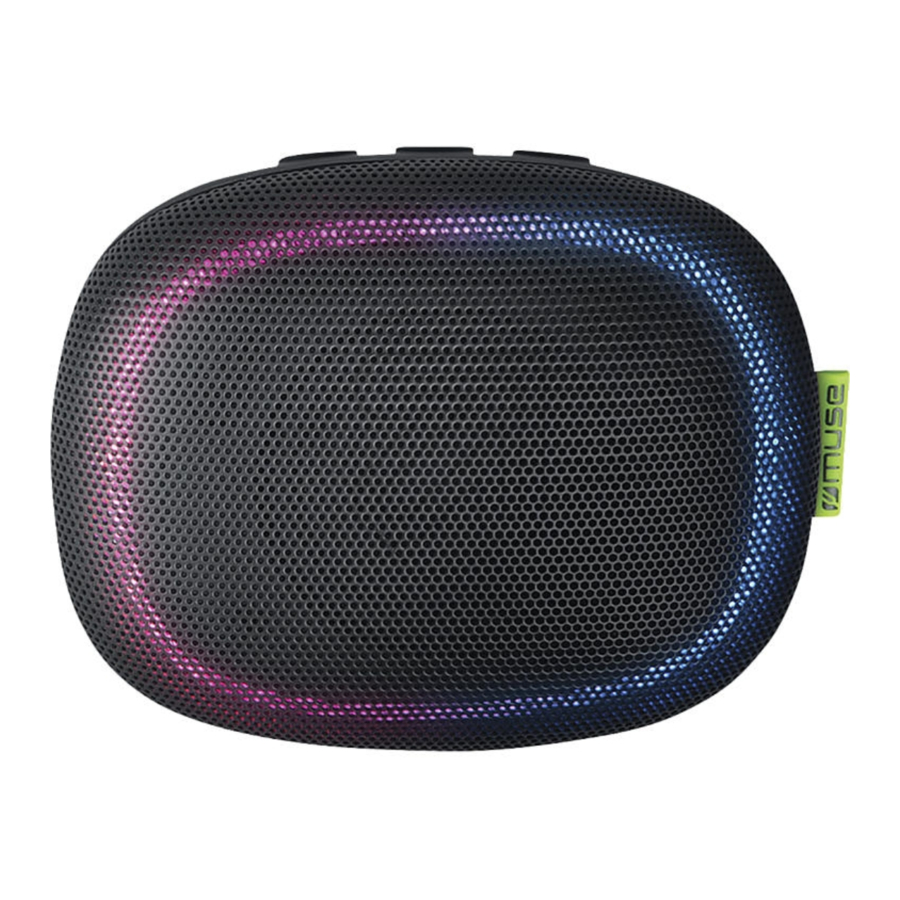

Overview
Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

Power ON/OFF
Receive call/ Redial call/ End call/ Stereo pairing
Lighting control button
Function LED indicator (blue for Bluetooth & AUX mode, red for charging)
Microphone
Speaker
AUX IN jack
Micro USB jack for charging

POWER SUPPLY

The unit is powered by a built-in, Li-polymer rechargeable battery. Charge the built-in battery for at least four hours before using the device for the first time.

To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or an AC power supply (not included).

The function LED indicator will change to red color during charging and light off when the battery becomes fully charged.

While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F) or incinerate.
To get the longest service life of the built-in battery, charge at indoor-temperature.
Attention should be drawn to the environmental aspects of battery disposal.
Do not throw batteries in fire!
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
When the battery is low, the sound may distort and you will hear the warning tone every minute. The unit will turn off automatically when the battery is too low to work.

OPERATION

Turning unit ON/OFF
Press and hold to turn on the unit. You will hear the voice "Bluetooth".
Press and hold for 2 seconds to turn off the unit. You will hear the voice "Power Off".

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

Press and hold indicator will blink blue rapidly indicating it is in Pairing mode.
On the Bluetooth device, enable Bluetooth and select "M-330 DJ" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, you will hear the voice "Connected". The function LED indicator will blink slowly after paired successfully. If there is no pairing or pairing is not successful within 15 minutes, the unit will turn off automatically.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, press button to disconnect the device, and then follow the steps above to make a new connection.

On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Hereby, NEW ONE S.A.S, declares that this MUSE M-330 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

Using a Bluetooth Device

Press and hold to turn on the unit. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-330 DJ's speaker.
Adjust the volume and select your desired track on the device which you are paired.
Press the button to pause playback. Press again to resume playback.
Note: The Bluetooth indicator will blink blue slowly during playback.

Receiving / Ending a Phone Call
This unit is equipped with a built-in microphone, which allows you to make or end calls of a connected mobile phone through this unit. Make sure your Bluetooth-enabled mobile phone is paired with the unit. When there is an incoming call to the connected mobile phone, you will hear an incoming call alert tone from the unit.

Press the button to answer the incoming call.
Press the button twice to end call.
To reject the incoming call, press button twice.
To redial the last number retained in the memory of the mobile phone, press the button twice.

Notes:

Re-dialing function is unavailable if there is no dial record feature in your mobile phone.
This unit will not operate or may operate improperly with some Bluetooth mobile phones/ audio players.
If the conversation is not clear, try to move closer to the microphone.

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-330 DJ to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-330 DJ.
STEREO PAIRING

Turn on the two Bluetooth speakers M-330 DJ.
When both speakers are in pairing mode, press and hold button on one Bluetooth speaker which will become the main speaker, then it will search and connect to the secondary speaker. They will recognize the left and right channel automatically.
Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
Play your song and listen to the sound in stereo.
Press button on either speaker to pause playback. Press again to resume playback.

CONNECTING AUXILIARY SOURCE

Press and hold to turn on the unit.
Connect your auxiliary source (e g. mp3 player) to the AUX IN jack on unit (cable not included). The unit will switch to AUX mode automatically. The function LED indicator will light solid blue, indicating it's in AUX mode.
Start playback of the external unit and the external audio unit's output sound will be heard through the M-330 DJ's speakers.
Adjust the volume and select your desired track on the external audio unit.
To stop playback, disconnect the audio cable from the AUX IN jack. The unit will switch to Bluetooth mode automatically.

USING THE COLOR LIGHT

When the unit is off, press button to display the multiple color light automatically for a few seconds.
When the unit is on, multiple color changes and achieve a color cycle effect. Press the button to settle down the light, repeatedly operate to select desired color. Press and hold the to turn off the light.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:
No Power

Power is not on; Press and hold to turn on the unit
Make sure the battery is recharged.

No Sound – General

External device's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

You have not activated the Bluetooth function of your device.
Refer to the user manual of your device to activate Bluetooth function.
The unit is already connected with another Bluetooth device; disconnect that device and then try again.

SPECIFICATIONS

RECHARGEABLE BATTERY
Battery Type: 3.7V 500mAh Li-Polymer Battery
Charging power: DC 5V 500mA
Operating Time: Approx. 6 hours at 50% volume after fully charged
Charging Time: Approx. 3 hours

BLUETOOTH
Bluetooth: 2.402-2.48GHz
RF Output Power: -3.014 dBm
Bluetooth Version: V4.2
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)
Specifications are subject to change without notice.

SAFETY INSTRUCTIONS

The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
The use of apparatus in moderate climates.
The apparatus should not be exposed to dripping or splashing.
Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation.
Do not place objects filled with liquids, such as vases, on the apparatus.
The marking plate is located on the bottom of unit.
Under the influence of electrical fast transient or/and electrostatic phenomenon, the product may malfunction and require user to power reset.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)
