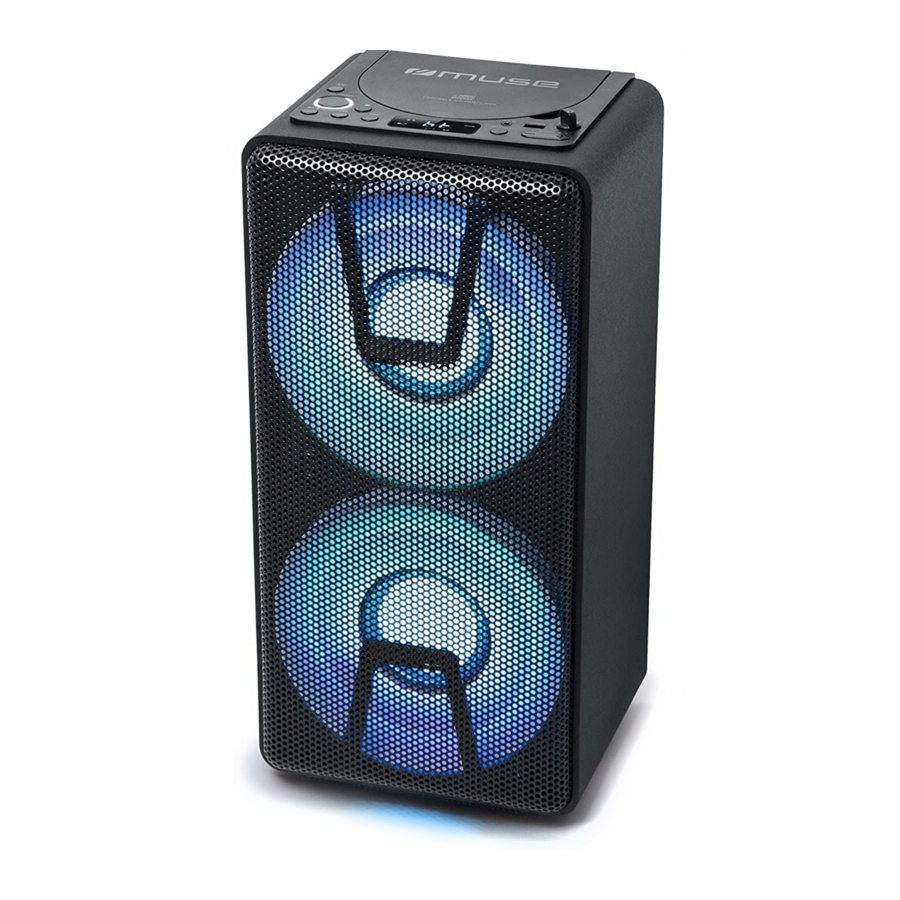

Muse M-1820 DJ - Bluetooth Party Box Speaker With CD Manual

Please read the instruction carefully before operating the unit.

LOCATION OF CONTROLS

1. CD compartment
2. Lighting control button
3. : To turn unit ON/OFF
   SOURCE: To select function mode: Bluetooth, CD, USB, AUX.
4. : Play/Pause
   : Bluetooth pairing / Disconnect Bluetooth connection
5. Skip/search
6. : To stop playback
7. : Skip/search
8. Bluetooth indicator
9. Charging indicator
10. Repeat indicator
11. LED display
12. Play/ Pause indicator
13. PROG. Program indicator
14. AUX IN jack (3.5MM)
15. repeat button
    PROG. Program button
    Stereo pairing
16. USB port for MP3 playback
17. : To adjust master volume
18. : To adjust the MIC volume
19. Handle
20. MIC jack
21. DC IN jack 9V 1A
22. Tweeter
23. Loud speaker

POWER SUPPLY

Using the AC adaptor

The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V ~ 50/60Hz and should only be connected to a mains supply within these parameters.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

Using the Built-in battery

The unit has a built-in rechargeable battery (lithium-ion). Charge the built-in battery before using it for the first time. The charging indicator will light red and will be off after fully charge.

• Recharge the built-in battery when you are ready to use it again.
• While using the built-in battery, the environmental temperature should be 5°C (41°F) to 35°C (95°F).
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• The unit should not be exposed to excessive heat such as sunshine, fire or the like.
• When discarding the unit, environmental problems must be considered and local rules or laws governing the disposal of such products must be strictly followed.
• When the built-in battery power is low, "" will show on display.

Note:
In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 30 minutes, the unit will automatically switch to Standby mode.

TURNING UNIT ON/OFF

Press and hold button to turn on or turn off the unit.

SELECTING FUNCTION

The function (BLUETOOTH/ AUX/ CD/ USB) is selected by pressing SOURCE button repeatedly.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show "". The Bluetooth indicator will start to blink rapidly. indicating it is in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "M-1820DJ" from the Device List.(Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use "0000". Some Bluetooth devices will ask you to accept the connection. If the unit is paired properly, the Bluetooth indicator will light on with an indication voice.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

If the pairing fails, perform the following:

Press and hold the button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-1820DJ" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-1820DJ's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with / .
4. Adjust the volume using the . You can also adjust the volume on the device to which you are paired.

STEREO PAIRING

This function makes it possible for you to get stereo surround sound quality. It requires two Bluetooth speakers M-1820DJ to realize the real Bluetooth radio channel wireless separation, therefore, you've got to purchase two M-1820DJ.

Tips: it is suggested that the distance between the main speaker and secondary speaker is within 4 meters.

1. Turn on the two Bluetooth speakers M-1820DJ.
2. When both speakers are in pairing mode, press / PROG. button on one Bluetooth speaker which will become the main speaker (L channel), then it will search and connect to the secondary speaker. They will recognize the left and right channel automatically.
3. Connect your main speaker to Bluetooth enabled device (e.g. smart phone).
4. Play your song and listen to the sound in stereo.
5. Press button on either speaker to pause playback. Press again to resume playback.
6. Press and hold button on main speaker to disconnect the stereo pairing.

LISTENING TO DISC

1. When the unit is ON, press SOURCE button repeatedly to select CD mode. The display will show "" for a few seconds.
2. Open the CD door. Insert a disc with label side facing up.
3. Close the CD door. (Note: If there is no disc inserted, the display will show "").
4. After a few seconds, the total number of track will appear on display for a few seconds and playback starts automatically. indicator will light up.

USB PLAYBACK

1. Connect an USB device to the USB MP3 port on unit.
2. Press SOURCE button repeatedly to select USB mode. The display will show "" for a few seconds and playback will start automatically.
3. Select desired track with / .

Notes:

• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.
• If the track number is more than 99, the unit will show "99" on the LED display.

PLAY MODES (CD/MP3)

Repeat playback

Press button repeatedly to select a play mode. Repeat indicator will light up.

• Repeat One: display shows "".
• Repeat folder: display shows "". (MP3 only)
• Repeat All: display shows "".

To cancel repeat playback, press button repeatedly until display shows "" and repeat indicator disappears.

Program playback

1. In stop mode, press PROG. button. The display will show "P-" for a few seconds then "01" (program memory number) and change to "01". ("01" is for program track 01) Program indicator lights up.
2. Select the desired track with / , then press PROG. button to conform.
3. Repeat above steps to program up to 32 tracks for CD and 99 tracks for MP3.
4. Press to start program playback.
5. Press button once to stop the program playback. Press again to cancel this function.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable included).
2. Press SOURCE button repeatedly to select AUX mode. The display will show "".
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

SINGING THROUGH MIC JACK

Sing along with the music by plugging in the microphone (not supplied) into the MIC jack on the unit.

Notes:

• Rotate the directly to adjust the mic volume as desired.
• If the microphone is placed near the loudspeaker, a howling effect (acoustic feedback) may occur. If this happens, place microphone away from the loudspeaker.

Tapping or dropping the microphone can permanently damage your microphone. Resist the urge to swing the microphone around by the cord.

COLOR LIGHT

1. In standby mode, press button to turn on the color light, and multiple color change to achieve a color cycle effect. Press the button again to settle down the light, repeatedly operate to select desired color. Press and hold the to turn off the light.
2. When the unit is on, press button to turn on or turn off the color light.

TECHNICAL SPECIFICATION

POWER SUPPLY: AC100-240V ~ 50/60Hz
Consumption: 9.0W

RECHARGEABLE BATTERY
Battery Type: 7.4V 1500mAh Lithium Ion Battery
Operating Time: Approx. 5 hours at 50% volume after fully charged
Charging Time: Approx. 3 hours

BLUETOOTH
Bluetooth Version: V5.0
Bluetooth: 2.402-2.48GHz
RF Output Power: -0.698 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

TROUBLE SHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Make sure unit is connected to AC power.
• Make sure the battery is recharged.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-1820DJ's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

CD MAINTENANCE

Cleaning

Disconnect the unit from the mains supply before cleaning.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Notes on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
• Do not try to open the disc compartment during playing.
• Do not touch the lens. Doing so may cause malfunction.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK, DO NOT OPEN

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

The Caution mark is located at the back of the device.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.

This compact disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT marking is located at the back of unit.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

Hereby, NEW ONE S.A.S, declares that this MUSE M-1820 DJ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
