Check and clear of the fault history

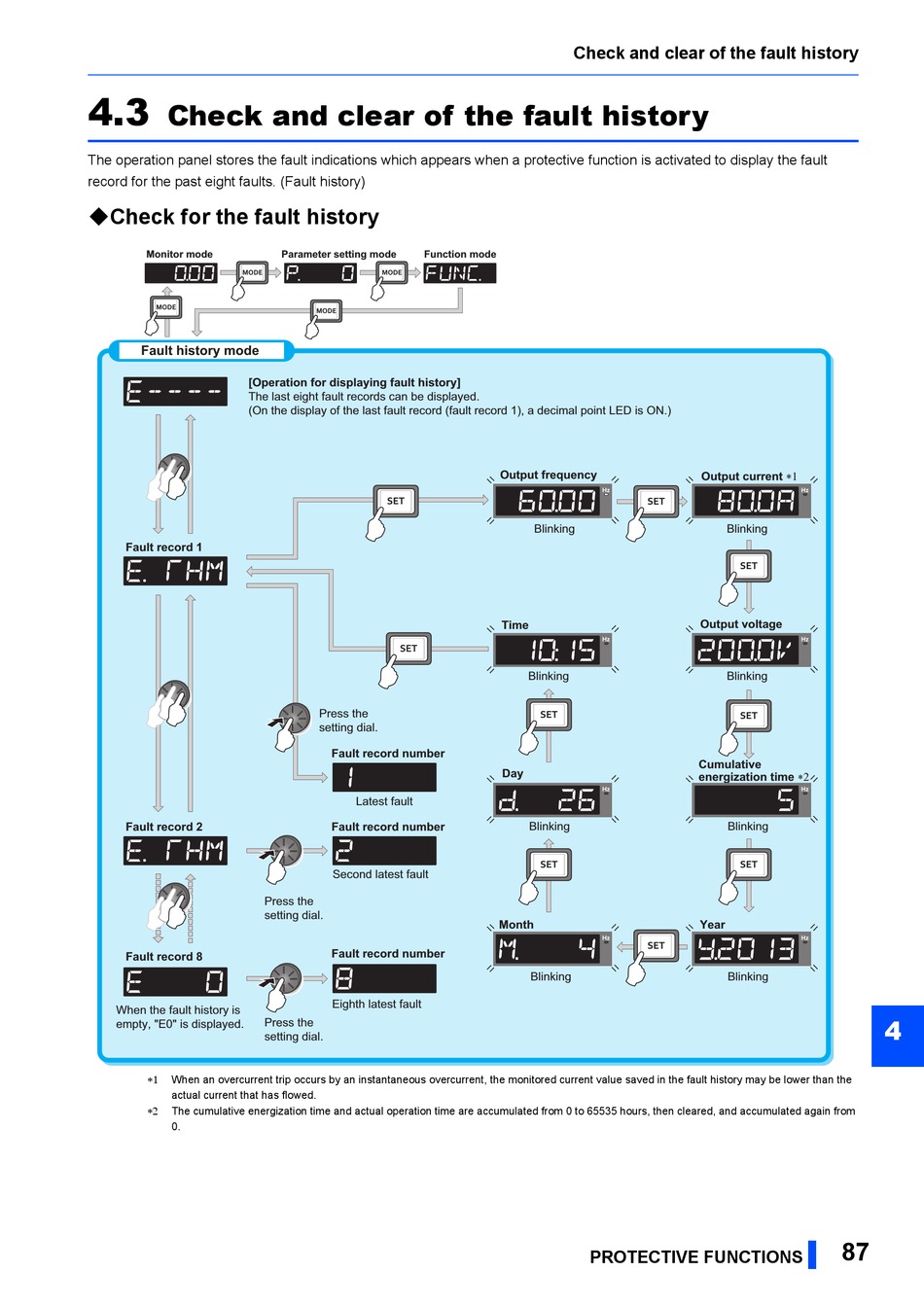

The operation panel stores the fault indications which appears when a protective function is activated to display the fault
record for the past eight faults. (Fault history)
Check for the fault history
Monitor mode
Fault history mode
[Operation for displaying fault history]
The last eight fault records can be displayed.
(On the display of the last fault record (fault record 1), a decimal point LED is ON.)
Fault record 1
Fault record 2
Fault record 8
When the fault history is
empty, "E0" is displayed.

When an overcurrent trip occurs by an instantaneous overcurrent, the monitored current value saved in the fault history may be lower than the
actual current that has flowed.

The cumulative energization time and actual operation time are accumulated from 0 to 65535 hours, then cleared, and accumulated again from
0.
Parameter setting mode Function mode
Press the
setting dial.
Fault record number
Latest fault
Fault record number
Second latest fault
Press the
setting dial.
Fault record number
Eighth latest fault
Press the
setting dial.
Check and clear of the fault history
Output frequency
Blinking
Time
Blinking
Day
Blinking
Month
Blinking
