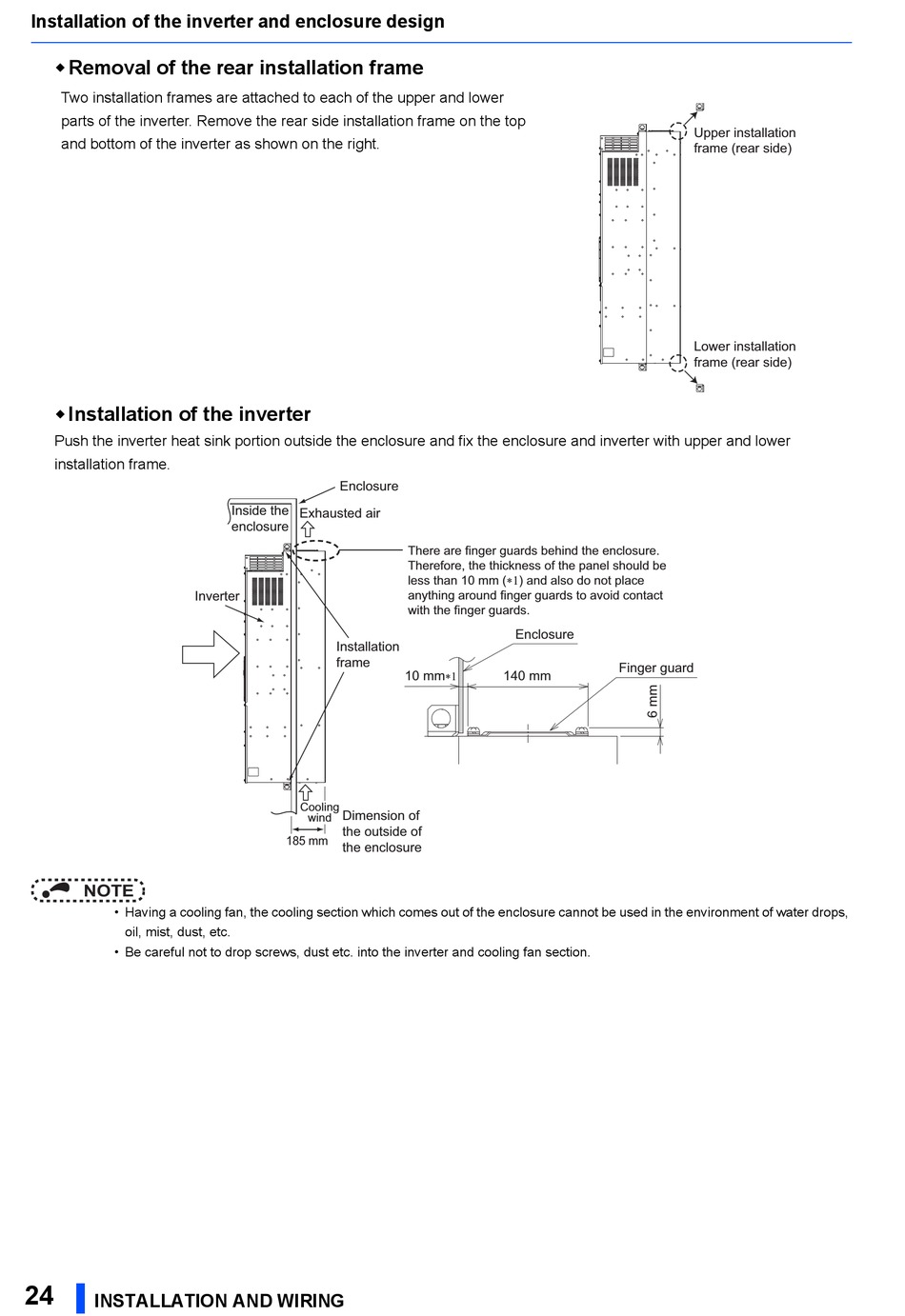

Installation of the inverter and enclosure design
 Removal of the rear installation frame
Two installation frames are attached to each of the upper and lower
parts of the inverter. Remove the rear side installation frame on the top
and bottom of the inverter as shown on the right.
 Installation of the inverter
Push the inverter heat sink portion outside the enclosure and fix the enclosure and inverter with upper and lower
installation frame.
Inverter
NOTE
• Having a cooling fan, the cooling section which comes out of the enclosure cannot be used in the environment of water drops,
oil, mist, dust, etc.
• Be careful not to drop screws, dust etc. into the inverter and cooling fan section.
24
INSTALLATION AND WIRING
Enclosure
Inside the
Exhausted air
enclosure
Installation
frame
Cooling
Dimension of
wind
the outside of
185 mm
the enclosure
There are finger guards behind the enclosure.
Therefore, the thickness of the panel should be
less than 10 mm (∗1) and also do not place
anything around finger guards to avoid contact
with the finger guards.
Enclosure
∗1
10 mm 140 mm
Upper installation
frame (rear side)
Lower installation
frame (rear side)
Finger guard
