2.7.2
PU connector

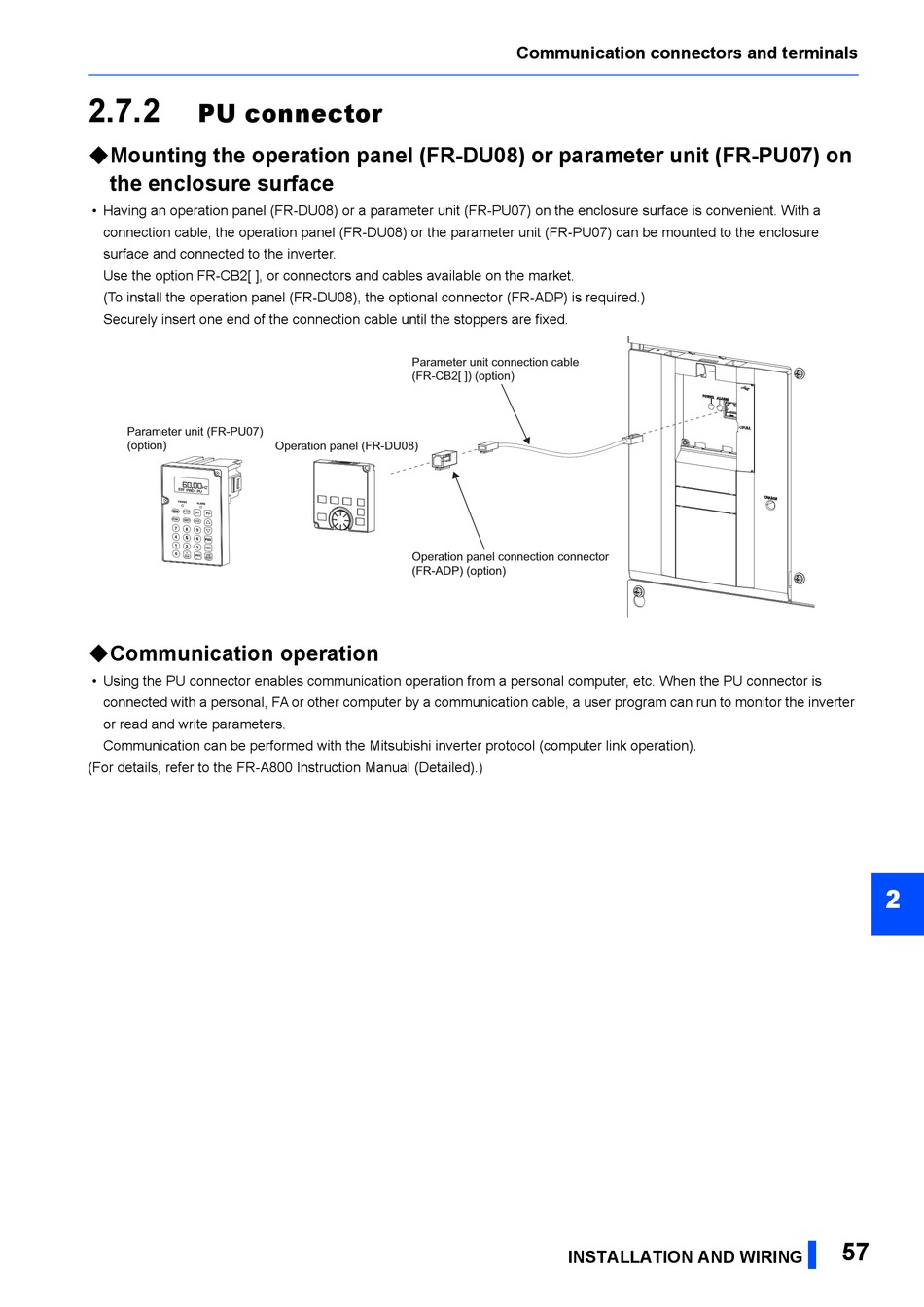

Mounting the operation panel (FR-DU08) or parameter unit (FR-PU07) on
the enclosure surface
• Having an operation panel (FR-DU08) or a parameter unit (FR-PU07) on the enclosure surface is convenient. With a
connection cable, the operation panel (FR-DU08) or the parameter unit (FR-PU07) can be mounted to the enclosure
surface and connected to the inverter.
Use the option FR-CB2[ ], or connectors and cables available on the market.
(To install the operation panel (FR-DU08), the optional connector (FR-ADP) is required.)
Securely insert one end of the connection cable until the stoppers are fixed.
Parameter unit (FR-PU07)
(option)
Communication operation
• Using the PU connector enables communication operation from a personal computer, etc. When the PU connector is
connected with a personal, FA or other computer by a communication cable, a user program can run to monitor the inverter
or read and write parameters.
Communication can be performed with the Mitsubishi inverter protocol (computer link operation).
(For details, refer to the FR-A800 Instruction Manual (Detailed).)
Parameter unit connection cable
(FR-CB2[ ]) (option)
Operation panel (FR-DU08)
Operation panel connection connector
(FR-ADP) (option)
Communication connectors and terminals
