The Wireless Arming Station - Pyronix RINS1902-2 User Manual

Wireless Alarm System: User Manual

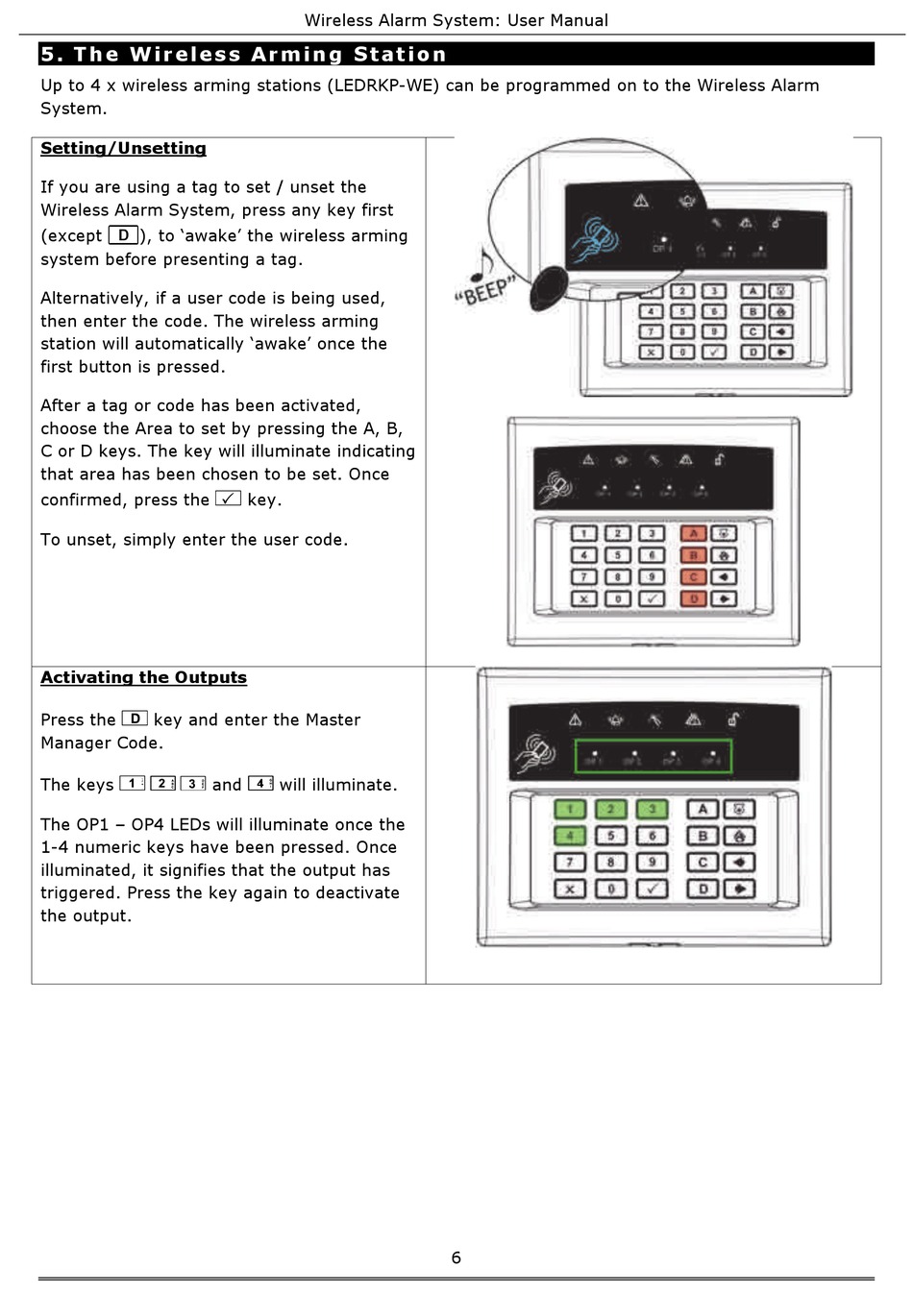

5 . T h e W i r e l e s s A r m i n g S t a t i o n
Up to 4 x wireless arming stations (LEDRKP-WE) can be programmed on to the Wireless Alarm
System.
Setting/Unsetting
If you are using a tag to set / unset the
Wireless Alarm System, press any key first
(except ), to 'awake' the wireless arming
system before presenting a tag.
Alternatively, if a user code is being used,
then enter the code. The wireless arming
station will automatically 'awake' once the
first button is pressed.
After a tag or code has been activated,
choose the Area to set by pressing the A, B,
C or D keys. The key will illuminate indicating
that area has been chosen to be set. Once
confirmed, press the t key.
To unset, simply enter the user code.
Activating the Outputs
Press the D key and enter the Master
Manager Code.
The keys 1 2 3 and 4 will illuminate.
The OP1 – OP4 LEDs will illuminate once the
1-4 numeric keys have been pressed. Once
illuminated, it signifies that the output has
triggered. Press the key again to deactivate
the output.
6
