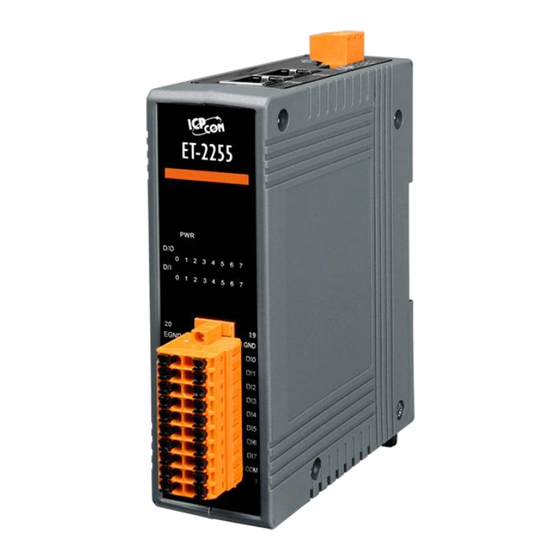

ICP DAS USA ET-2255 Series Quick Start Manual
Hide thumbs
Also See for ET-2255 Series:
- User manual (125 pages) ,
- Quick start manual (8 pages) ,
- User manual (99 pages)
Advertisement
Quick Links
Packing List
In addition to this guide, the package includes the following items:
(P)ET-2255 / (P)ET-2255-32 X 1
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
(P)ET-2255 Series
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
P1
Quick Start
v1.3, May 2023
Quick Start x1
Advertisement
Related Manuals for ICP DAS USA ET-2255 Series
Summary of Contents for ICP DAS USA ET-2255 Series
- Page 1 Quick Start (P)ET-2255 Series v1.3, May 2023 Packing List In addition to this guide, the package includes the following items: (P)ET-2255 / (P)ET-2255-32 X 1 Quick Start x1 Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
- Page 2 Connecting the Power and Host PC Make sure your PC has workable network settings. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 3 may not work. (Please contact with your system Administrator) Connect both the (P)ET-2255 and your PC to the same sub network or the same Ethernet switch.
- Page 3 Wiring the DI and DO for Self-test A tip for insert/remove the wire to the connector. 2. While holding the Continue holding the screwdriver in place, screwdriver in place insert/remove the wire into 1. Use the blade of the the terminal block.
- Page 4 Configuring Network Setting 1) Run the eSearch Utility. eSearch Utility download link: https://www.icpdas.com/en/download/index.php?nation=US&kind1=&mo del=&kw=esearch 2) Click the “Search Servers” to search your (P)ET-2255. 3) Double-click your (P)ET-2255 to configure the settings. Factory Default Settings of (P)ET-2255: IP Address 192.168.255.1 Subnet Mask 255.255.0.0...
- Page 5 Testing your Ethernet I/O Module Click “Search Servers” button again to ensure the (P)ET-2255 is working well with new configuration, than click the name of (P)ET-2255 to select it.。 Click the “Web” button to log in to the web configuration pages.(Or enter the URL address of the (P)ET-2255 in the address bar of the browser.) For the first time using the module, you have to change the password and click the “Submit”...
- Page 6 Enter the new password in the “Login password” field and click the “Submit” button. The “Home” page allows for a simple test to verify the Digital Input and Output functionality. In the “Digital I/O” section, click the “DO0” button to turn it ON (Red). Verify that the DI0 status is ON(green).
