What's in the box?
The package includes the following items:
ET-2251 Module x 1
Related Information
ET-2200 Series Product Page:
Documentation & Firmware:
NS-205/MDR-20-24 Product Page (optional):
Technical support:

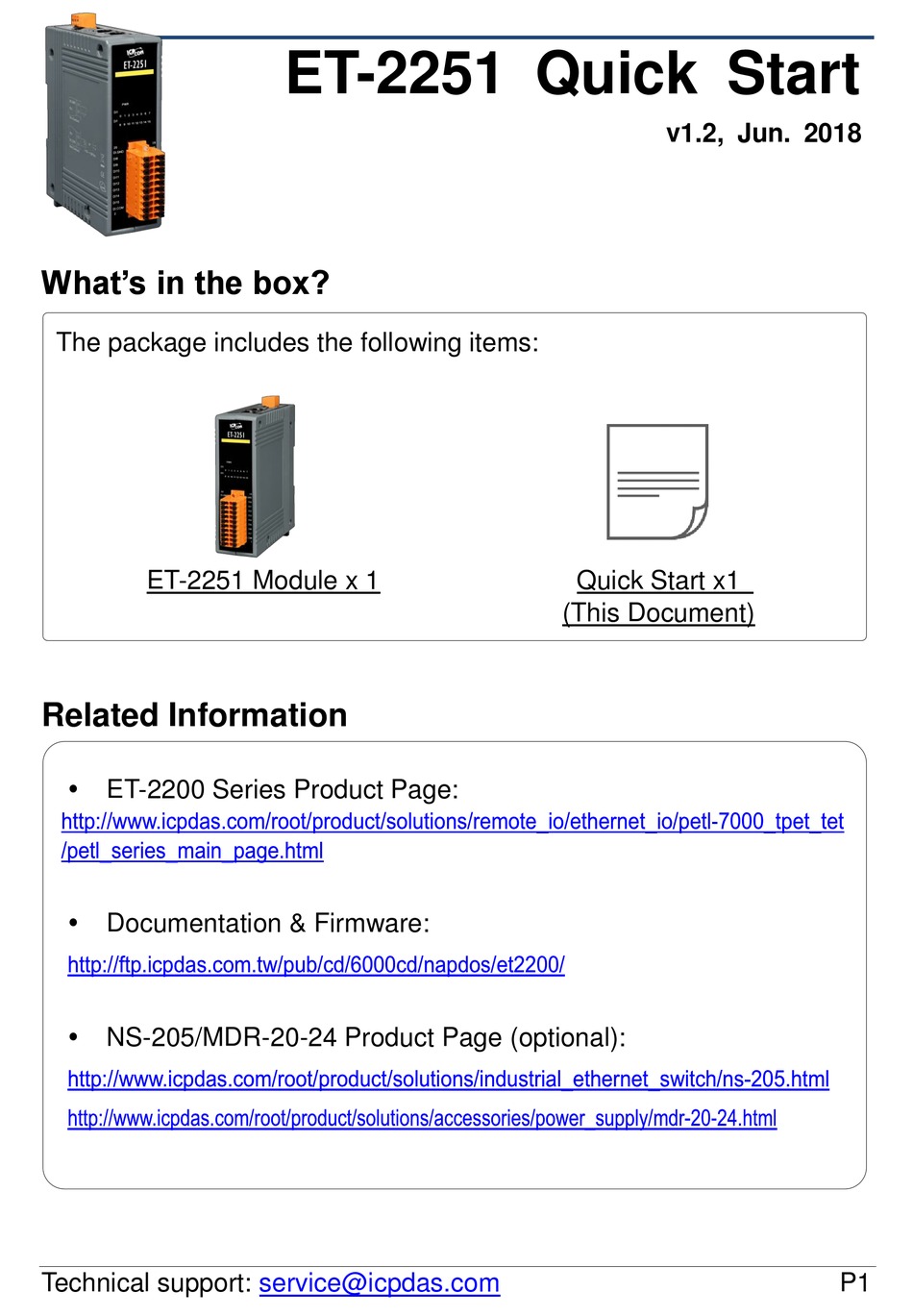

ET-2251 Quick Start
service@icpdas.com
v1.2, Jun. 2018
Quick Start x1
(This Document)
P1
Advertisement
Related Manuals for ICP DAS USA ET-2200 Series
Summary of Contents for ICP DAS USA ET-2200 Series
- Page 1 Jun. 2018 What’s in the box? The package includes the following items: ET-2251 Module x 1 Quick Start x1 (This Document) Related Information ET-2200 Series Product Page: Documentation & Firmware: NS-205/MDR-20-24 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Connecting the Power and Host PC Make sure your PC has workable network settings. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 5 may not work. (Please contact with your system Administrator) Connect both the ET-2251 and your PC to the same sub network or the same Ethernet switch.
- Page 3 Pin Assignments & Wiring Note Pin Assignments: Wire Connections: Digital Input/ Readback as 1 Readback as 0 Counter Close to GND Open +S5 V +S5 V Dry Contact +5 ~ +50 V OPEN or <1 V 7.5K 7.5K Sink To other channels DI.COM...
- Page 4 Wiring the DI and DO for Self-test A tip for connecting the wire to the connector A tip for removing the wire from the connector 1) Connect the DI0 pin (Pin17) to the DI.GND pin (Pin19). Technical support: service@icpdas.com...
-
Page 5: Modbus Address
Modbus Address (0xxxx) DO address: Bits Begin Access Points Description Range address Type Point Clears the status of all high 32 (0x20) 1: Clear latched DI channels Clears the status of all low 33 (0x21) 1: Clear latched DI channels 0: Disable Enables the high and low 1: Enable... -
Page 6: Configuring Network Settings
Configuring Network Settings 1) Run the eSearch Utility. The eSearch Utility is located at: http://ftp.icpdas.com/pub/cd/6000cd/napdos/software/esearch/ 2) Click the “Search Servers” to search your ET-2251. 3) Double-click your ET-2251 to configure the settings Factory Default Settings of ET-2251: IP Address 192.168.255.1 Subnet Mask... - Page 7 Testing your Ethernet I/O Module 1) Wait 2 seconds and click “Search Servers” button again to ensure the ET-2251 is working well with new configuration. 2) Click the name of ET-2251 to select it. 3) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the ET-2251 in the address bar of the browser.) ...
- Page 8 5) In the “Home” page allows a simple test to be performed to verify the Digital Input functionality. 6) In the “Digital I/O” section, verify that status for the both DI0 is ON (green). Technical support: service@icpdas.com...
