What's in the box?
The package includes the following items:
ECAT-2610
CA-0915 Cable
Related Information
ECAT Series Product Page:
KA-52F Series (optional) Power Supply Page:
User Manual\QuickStart\Datasheet:
Technical support:
ECAT-2610 Quick Start
Quick Start
(This Document)
service@icpdas.com
v1.0, October 2017
Software Utility CD
P1
Advertisement
Related Manuals for ICP DAS USA ECAT-2610
Summary of Contents for ICP DAS USA ECAT-2610

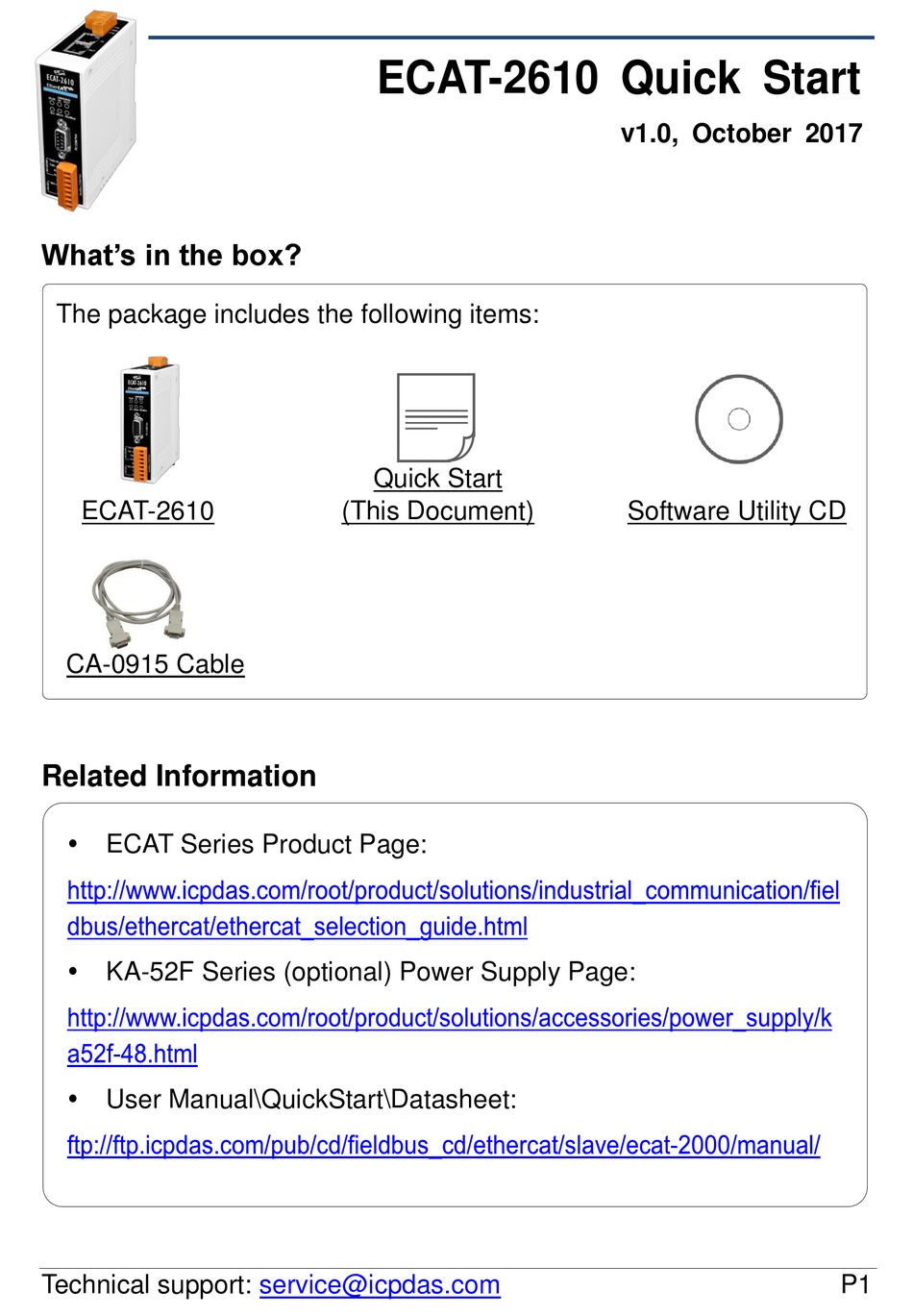

- Page 1 ECAT-2610 Quick Start v1.0, October 2017 What’s in the box? The package includes the following items: Quick Start ECAT-2610 (This Document) Software Utility CD CA-0915 Cable Related Information ECAT Series Product Page: KA-52F Series (optional) Power Supply Page: ...
- Page 2 Connect the Host positive terminal on a 12 - 48 V device to the IN port on power supply, and connect the ECAT-2610 module. GND- pin to the negative terminal. Attaching an ESC directly to an office network will result in network flooding, since the ESC will reflect any frame –...
- Page 3 The latest ESI file (ICPDAS ECAT-2610.xml) can be downloaded from ICP DAS website at http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethercat/slave/ecat-2000/software/ Install the ESI file Copy the “ICPDAS ECAT-2610.xml” file to the Master Tools installation folder, as indicated in the table below. Software Default Path Beckhoff EtherCAT Configuration C:\EtherCAT Configurator\EtherCAT Beckhoff TwinCAT 3.X...
- Page 4 Click OK to start scanning and click OK to activate the free run mode 4) Verifying the status of ECAT-2610 Module In the right-hand of the windows, check In000 is 0x80 and In001 is 0xC0 ECAT-2610 is now shown in the...
