ICP DAS USA ET-7000 series Quick Start Manual

Hide thumbs Also See for ET-7000 series:

Advertisement

Quick Links

Download this manual
Quick Start Manual
Version 1.02
Feb 2009

Advertisement

loading

Related Manuals for ICP DAS USA ET-7000 series

Summary of Contents for ICP DAS USA ET-7000 series

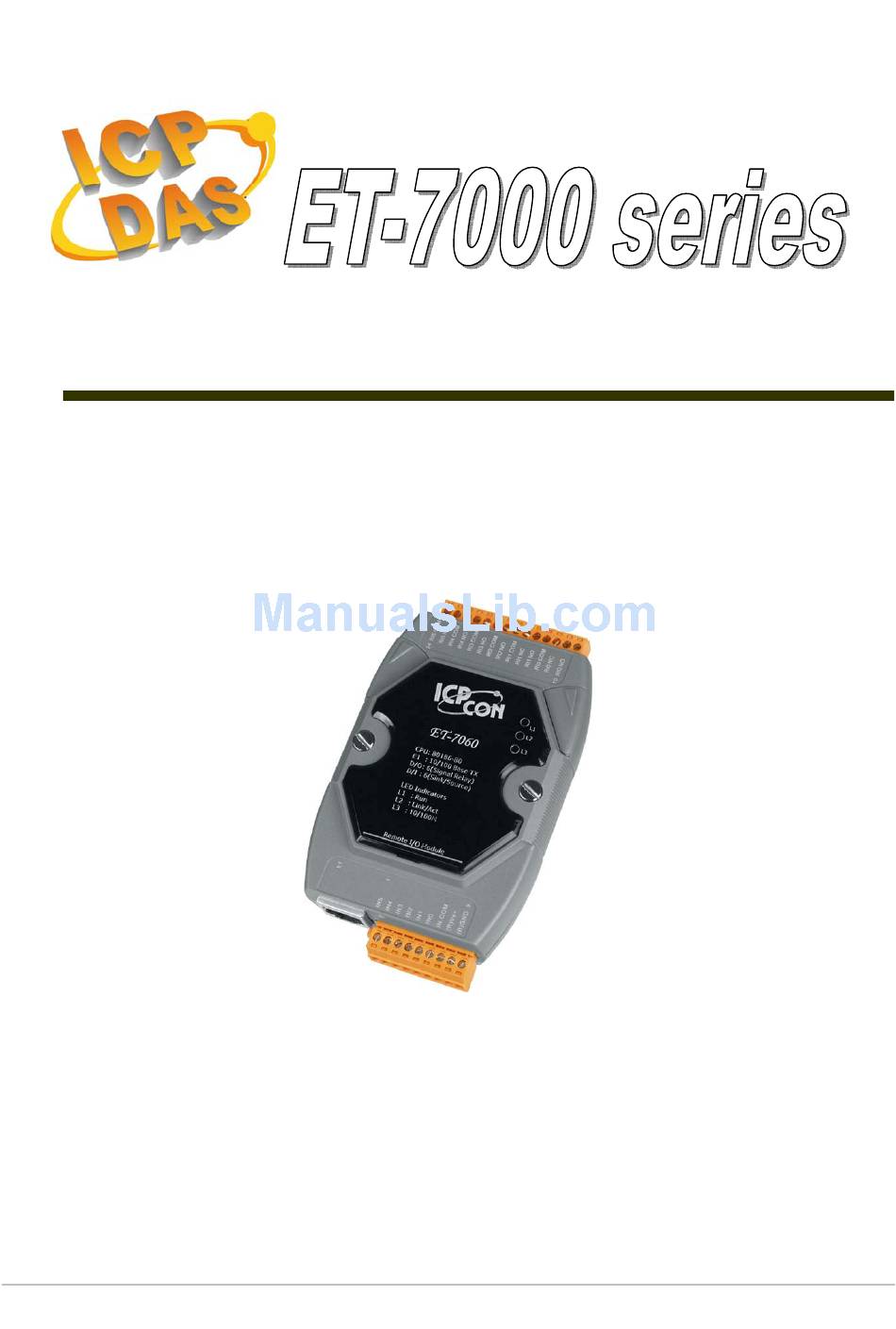

  • Page 1 Quick Start Manual Version 1.02 Feb 2009...

  • Page 2: Package Checklist

    ET7000 Quick Start Package checklist The package includes the following items: One ET-7000 hardware module One Quick Start Manual One software utility CD One screw driver Note: If any of these items are missed or damaged, contact the local distributors for more information. Save the shipping materials and cartons in case you want to ship in the future.
  • Page 3 1. Preparation View of the Module Connector J1 Indicators Connector J2 Ethernet Port...
  • Page 4 ET7000 Quick Start Din-Rail Mounting Mounting the ET-7000 Snap the ET-7000 on to the DIN-rail Snap the ET-7000 off from the DIN-rail...
  • Page 5 ET7000 Quick Start Connecting Link the ET-7000 and host PC direct or link the the ET-7000 ET-7000 into the same Ethernet as host PC. into the Ethernet Ethernet cable Ethernet cable...
  • Page 6 ET7000 Quick Start Apply power 1. Check Init/Normal switch is on Normal position. to the ET-7000 2. Apply power (+Vs, GND) to the ET-7000, +Vs can be range from +10V to +30V DC. 3. Check that the L1 LED (“RUN”) periodically ON for 0.5 seconds and then OFF for 0.5 seconds.

  • Page 7: Ethernet Configuration

    2. Ethernet Configuration Configuring the network settings correctly is the most important procedure prior to using ET-7000 controller. The following settings must be configured: Networking settings: IP, Mask, and Gateway of ET-7000. Item Default IP Address 192.168.255.1 Subnet Mask 255.255.0.0 Gateway 192.168.0.1 Installing MiniOS7 utility...
  • Page 8 ET7000 Quick Start Please follow the steps below: 1. Double Click the “Setup.exe” to start installing. 2. Click on “Next” when the Welcome window opens. 3. Click on “Next” to install program files in the default directory, or select an alternative location by pressing “Browser…”. 4.
  • Page 9 ET7000 Quick Start Search -- Search the devices 1. Run the MiniOS7 utility as follow 2. Click the Search on the main menu to scan the modules on the Ethernet network.
  • Page 10 ET7000 Quick Start 3. The Search Progress will show on the bottom of the “MiniOS7 Scan” windows. Users can press button to cancel the search. 3. Choose the found module in the table and Press button to configure IP settings.
  • Page 11 ET7000 Quick Start 4. The current settings of the module will show on the dialog below, and the user can change the value on each item and then press the “Set” button to take effect of the settings. Click the “Set” button will cause the ET-7000 to reboot to make the settings effectively.
  • Page 12 ET7000 Quick Start 3. Connect the ET-7000 -- by web browser 1. Start up the web browser (Internet Explorer, Mozilla or Firefox), input the URL address of the ET-7000 (such as http://10.0.8.13) and then press “Enter” key to link the ET-7000. 2.
  • Page 13 ET7000 Quick Start The brief description of the Web page configuration function is listed on six main functions of the tree structure.

  • Page 14: Technical Support

    Technical Support If you have problems about using the ET-7000 series modules, please contact ICP DAS Product Support. Email: Service@icpdas.com When requesting technical support, be prepared to provide the following information about your system: 1. Module name and serial number: The serial number can be found printed on the barcode label attached to the cover of the module.
