Summary of Contents for ICP DAS USA Compact PAC i-8000 Series

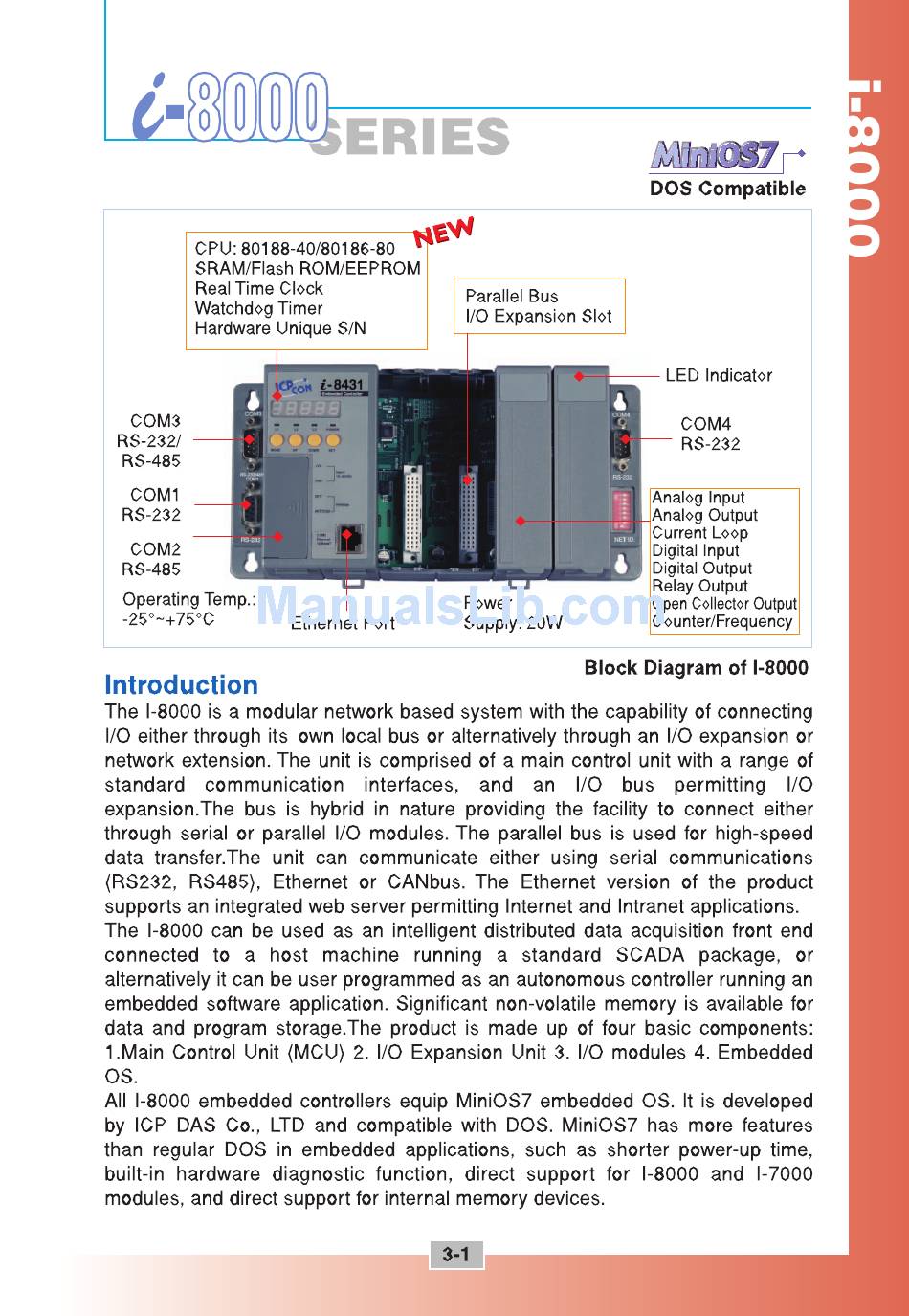

  • Page 1 Compact PAC...
  • Page 2 Compact PAC -8000 SERIES Solution for Internet/Intranet...
  • Page 3 Compact PAC -8000 SERIES Connecting I-841X/881X to Host-PC Configuration A Configuration B...
  • Page 4 Compact PAC -8000 SERIES Configuration C Configuration D...
  • Page 5 -8000 Main Control Unit (MCU) SERIES 1. Main Control Unit (MCU): The MCU is the powerhouse of the I-8000. Each MCU is comprised of a central processor module (CPM), a power supply, and a four (4) or eight (8) slot backplane for either 4 or 8 Parallel I/O modules.
  • Page 6 -8000 Main Control Unit (MCU) SERIES Main Control Unit Description Model 80188 Flash (Note1) 40MHz I-8410 256KB Note 6 I-8810 I-8411 512KB Note 6 I-8811 I-8417 ISaGRAF 512KB Note 6 I-8817 I-8418 80186 Matlab 512KB 80MHz I-8818 I-8420 80186 512KB 80MHz I-8820 I-8421...
  • Page 9 Modbus/TCP PAC...

  • Page 10: Hardware Specifications

    -8000 Modbus/TCP PAC SERIES Default firmware features Supports Modbus/TCP communication protocol to access I/Os that plugged in slots. Supports VxComm technique for every COM port of controllers. Supports 8K and 87K DI/DO/AI/AO modules. Please refer detail list in Modbus Utility on-line help. Automatically scan I/O modules.
  • Page 11 -8KE4 Features Supports DCON communication protocol to access I/Os that plugged in slots. Supports VxComm technique for every COM port of controllers. Supports 8K and 87K DI/DO/AI/AO modules. Automatically scan I/O modules. You can plug I/O modules in any slot. Don't mind the slot order, it's doesn't mater Allowed a maximum of 8 host PCs access simultaneously.
  • Page 12 Intelligent CANopen Remote -8000 I/O Devices SERIES Why CANopen ? CANopen, a kind of network protocols, is based on the intelligent field bus (CAN bus). It was developed as a standardized network system with highly flexibility, and provides several standardized communication objects real-time configuration...
  • Page 14 Intelligent DeviceNet Remote -8000 I/O Devices SERIES Why DeviceNet? DeviceNet is one kind of the network protocols based on the CAN bus and mainly used in industrial automation, such as injection molding machinery, textile machinery, printing or packaging machines, etc. It is a low level network that provides connections between simple industrial sensors/actuators and higher level devices.
  • Page 17 -8000 ISaGRAF PAC SERIES Ordering Information: I-8417: ISaGRAF PAC I-8417-G: I-8417 with Gray color Ordering Information: I-8437: ISaGRAF PAC I-8437-G: I-8437 with Gray color Ordering Information: I-8817: ISaGRAF PAC I-8817-G: I-8817 with Gray color Ordering Information: I-8837: ISaGRAF PAC I-8837-G: I-8837 with Gray color Specifications &...

  • Page 18: Software Required

    -8000 Matlab PAC SERIES I-8438/8838 is the ICP DAS MATLAB PAC solution built in Ethernet and series interface with I/O expansion slots for Matlab development environment. For this application there are over 20 I/O bridges and system-level Simulink Blocksets have been developed. By using Simulink development environment and these Matlab Driver’s blocksets, control algorithm can be easily constructed and verified without writing any code.
  • Page 19 -8000 Matlab PAC SERIES Ordering Information: I-8438-G: Matlab PAC Ordering Information: I-8838-G: Matlab PAC COMMON Specifications CPU:80186,80MHz Specifications & Features Except CPU, the hardware of I-8438 is the same as I-8431. The IO bridge for I-8000 is included Except CPU, the hardware of I-8838 is the same as I-8831.
  • Page 20 -87K I/O Expansion Unit SERIES 2. I/O Expansion Unit: The I/O expansion units are used to extend the number of I/O modules. Each expansion unit consists of a Power supply and a Back Plane with 4, or 5 or 8 or 9 Serial I/O Expansion Slots.
  • Page 21 -87K I/O Expansion Unit SERIES Ordering Information: I-87K4: I/O Expansion unit with 4 I/O slots I-87K4-G: I-87K4 with Gray color Ordering Information: I-87K5: I/O Expansion unit with 5 I/O slots I-87K5-G: I-87K5 with Gray color Ordering Information: I-87K8: I/O Expansion unit with 8 I/O slots I-87K8-G: I-87K8 with Gray color Ordering Information: I-87K9: I/O Expansion unit with 9 I/O slots...
  • Page 22 -8000 I/O Modules SERIES 3. I/O Modules There are two types of I/O modules, Parallel and Serial. The parallel modules are high-speed modules and have to be installed in the Main Control Unit. The Serial I/O Modules can be installed in either the Parallel or Serial I/O expansion slots. Parallel I/O Modules ( 8K series Modules) Features: High speed A/D: 100K samples/second...
  • Page 23 -8000 Parallel I/O Modules SERIES 8K Digital I/O Module Selection Guide Model I-8037 I-8040 Digital input — Channels 16 open Digital source Output — isolation Channels 3750V LED Display Safe Value — Power-on — Preset Value Dual — — Watchdog Availability Model I-8052...

  • Page 24: Digital Modules

    -8000 Parallel I/O Modules SERIES I-8037 I-8037-G I-8040 I-8040-G I-8041 I-8041-G I-8042 I-8042-G 8K Digital Modules I-8037 / I-8037-G (Gray color) 16-channel Isolated Open-source Output Module Digital output channels : 16 Digital output : Open-source Digital output : Output 100mA / 30V(Max) Isolation: 3750 Vrms Power consumption: 0.5W I-8040 / I-8040-G (Gray color)
  • Page 25 -8000 Parallel I/O Modules SERIES I-8048 I-8048-G I-8050 I-8050-G I-8051 I-8051-G 8K Digital Modules I-8048 / I-8048-G (Gray color) 8-channel Digital Input with Interrupt Module Parallel I/O Module Digital Input Channels: 8 Input Signal: isolated or non-isolated by Jumper Logic High level: Isolated: 4V ~30V Non-Isolated TTL: 2V ~ 5V Logic Low level:...
  • Page 26 -8000 Parallel I/O Modules SERIES I-8052 I-8052-G I-8053 I-8053-G I-8054 I-8054-G I-8055-G I-8055 8K Digital Modules I-8052 / I-8052-G (Gray color) 8-channel Isolated Digital Input Module Digital input channels: 8 Differential input: Logical level 0: +1V max. Logical level 1: +3.5V~30V Isolation: 5000 Vrms.
  • Page 27 -8000 Parallel I/O Modules SERIES I-8056 I-8056-G I-8057 I-8057-G I-8058 I-8058-G 8K Digital Modules I-8056 / I-8056-G (Gray color) 16-channel Non-isolated Open-collector Output Module Digital output channels: 16 O.C. output: 125mA/channel, 30V Power consumption: 0.7W I-8057 / I-8057-G (Gray color) 16-channel Isolated Open-collector Output Module Digital output channels: 16...
  • Page 28 -8000 Parallel I/O Modules SERIES 8K Relay Module Selection Guide Model I-8060 I-8063 Digital input — isolation Channels 3750V Digital Form C Form C Output Channels LED Display Safe Value Power-on Preset Value Dual — — Watchdog Availability I-8064 I-8065 I-8066 —...

  • Page 29: Relay Modules

    -8000 Parallel I/O Modules SERIES I-8060 I-8060-G I-8063-G I-8063 I-8064-G I-8064 I-8065 I-8065-G 8K Relay Modules I-8060 / I-8060-G (Gray color) 6-channel Relay Output Module Digital output channels: 6 Form C relay Contact Rating: AC: 125V @0.6A; 250V @0.3A DC: 30V @2A; 110V @0.6A Power consumption: 2.2W I-8063 / I-8063-G (Gray color) 8-channel Isolated Digital I/O Module...
  • Page 30 -8000 Parallel I/O Modules SERIES I-8066 I-8066-G I-8068 I-8068-G I-8069 I-8069-G 8K Relay Modules I-8066 / I-8066-G (Gray color) 8-channel SSR-DC Output Module Digital output channels: 8 Form A SSR Contact Rating: DC: 3~30 Vdc @1.0A Max. load current: 1.0A Power consumption: 0.8W I-8068 / I-8068-G (Gray color) 8-channel Relay Output Module...

  • Page 31: Memory Modules

    -8000 Parallel I/O Modules SERIES I-8072 I-8072-G I-8073 I-8073-G I-8074W-G I-8077 I-8077-G 8K Memory Modules I-8072 / I-8072-G (Gray color) Printer Port & Xsocket Card Support Printer port Support two Xsocket Power Consumption: 0.3W I-8073 / I-8073-G (Gray color) MultiMediaCard(MMC) module MultiMediaCard socket : 1 Digital input Channels :4 Logical level 0 : +1V max.
  • Page 32 -8000 Parallel I/O Modules SERIES I-8080 I-8080-G I-8081W-G I-8082W-G 8K Counter/Frequency Modules I-8080 / I-8080-G (Gray color) 8-channel SSR-DC Output Module Digital output channels: 8 Form A SSR Contact Rating: DC: 3~30 Vdc @1.0A Max. load current: 1.0A Power consumption: 0.8W I-8081W-G (Gray color) 8-channel Counter/Frequency Module Counter channels: 8-ch up or 4-ch up/down...
  • Page 33 -8000 Parallel I/O Modules SERIES I-8090 I-8090-G I-8091-G I-8091 I-8093-G 8K Motion Modules I-8090 / I-8090-G (Gray color) 3-axis Encoder Input Module Channels: 3 Encoder type: single-ended or differential Logical level: TTL and COMS compatible Accept inputs from incremental or quadrature encoders Maximum quadrature input frequency: 1MHz Encoder input modes: Quadrature, Up/Down,...

  • Page 34: Analog Input/Output Modules

    -8000 Parallel I/O Modules SERIES I-8017H I-8017H-G I-8017HS-G I-8024-G I-8024 8K Analog Input/Output Modules I-8017H / I-8017H-G (Gray color) 8-channel Isolated Analog Input Module Analog Input Channels: 8 Resolution: 14-bit Input Type: Differential Input Range : ±10V, ±5V, ±2.5V, ±1.25V, ±20mA (need 125Ω...
  • Page 35 -8000 Parallel Communication Modules SERIES 8K RS-232/RS-422/RS-485 Modules I-8112 I-8112-G I-8114 I-8114-G I-8142 I-8142-G I-8142i I-8142i-G I-8144 I-8144-G I-8112: 2-channel RS-232 Module RS-232 channels: 2 Modem control TXD, RXD, RTS, CTS, DSR, DTR, DCD, RI, GND Transmission speed: 115.2K bps Shared Interrupt I-8114: 4-channel RS-232 Module...
  • Page 36 -87K Serial Modules SERIES 87K Digital I/O Modules Selection Guide Module I-87040 Digital Input Channels Isolation Digital Output – Channels Channels Counter Input 100Hz Frequency Safe Value – Power-on – Preset Value Dual Watchdog Timer Availability Module I-87054 Digital Input Isolation Channels (3750V)
  • Page 37 -87K Serial Modules SERIES 87K Relay Modules Selection Guide Module I-87063 I-87064 Digital Input Isolation Channels (3750V) Channel Channel Digital Output Relay Channels Form C x 4 250V/5A DC 30V/5A Channels Counter Input 100Hz Frequency Safe Value Power-on Preset Value Dual Watchdog Timer Availability...
  • Page 38 3-38...
  • Page 39 I-87054-G I-87054 I-87054 / I-87054-G (Gray color) 16-channel Isolated Digital I/O Module Digital input channels: 8 On state: +3.5V~30V Off state: +1V max. Digital output channels: 8 O.C. output: 375mA/channel, 30V Power Consumption: 0.3W 3-39...

  • Page 40: Digital Modules

    -87K Serial Modules SERIES I-87055 I-87055-G I-87057 I-87057-G I-87058-G I-87058 I-87063-G I-87063 87K Digital Modules I-87055 / I-87055-G (Gray color) 16-channel Digital I/O Module Digital input channels: 8 On state: +1V max. Off state: +3.5V~30V Digital output channels: 8 O.C. output: 100mA/channel Power Consumption: 0.5W I-87057 / I-87057-G (Gray color) 16-channel Isolated Open Collector...
  • Page 41 -87K Serial Modules SERIES I-87064 I-87064-G I-87065 I-87065-G I-87066 I-87066-G I-87068 I-87068-G I-87069 I-87069-G 87K Digital Modules I-87064 / I-87064-G (Gray color) 8-channel Power Relay Output Module I-87065 / I-87065-G (Gray color) 8-channel SSR-AC Output Module I-87066 / I-87066-G (Gray color) 8-channel SSR-DC Output Module Digital Output channels: 8 Form A (Normal open)
  • Page 42 -87K Serial Modules SERIES 87K Analog Input Module Selection Guide I-87005W Module Resolution 16 bit Input 8 diff. channel Sampling 8 Hz rate (total) Voltage – Analog input Input Current – input Sensor Thermistor (2-wire) input Input Linear – scaling 8 (open Digital Output Channels...
  • Page 43 -87K Serial Modules SERIES 87K Analog Input Module Selection Guide I-87017RC Module Resolution 16/12 bit Input 8 diff. channel Sampling 10/60 Hz rate (total) Voltage – Analog input Input +/-20mA Current 4-20mA input 0-20mA Sensor – input Input Linear – scaling Digital Output –...
  • Page 45 I-87016W-G I-87005W-G I-87017R-G I-87016W-G (Gray color) Accuracy: +/-0.1% I-87017R-G (Gray color) 8-channel Analog Input Modulewith High Over Voltage Protection Analog Input Channels: 8 diff. Input Type: mV, V, mA (requires optional external 125Ω resistor) Input Impedance: >1M Ohms Sampling Rate: 10Hz (Total) Accuracy: +/-0.1% C.M.R: 86dB Overvoltage Protection: 240VRMS...
  • Page 46 I-87017RC-G I-87017ML-G I-87017RC-G (Gray color) 8-channel Current Input Module Analog Input Channels: 8 diff. Input Type: +/-20mA, 0-20mA, 4-20mA (built-in 125Ω resistor) Sampling Rate: Normal mode: 10Hz (total) Fast mode: 60Hz (total) Accuracy: Normal mode: +/-0.1% Fast mode: +/-0.5% C.M.R.: 86dB Common Voltage: 200VDC Isolation: 3000VDC Power Consumption: 1.2W...
  • Page 47 I-87018R-G I-87019R-G I-87018R-G (Gray color) 8-channel Analog Input Module Analog Input Channels: 8 diff. Input Type: mV, V, mA (requires optional external 125Ω resistor), Thermocouple (J/K/T/E/R/S/B/N/C/L/M/L2) Input Impedance: >1M Ohms Sampling Rate: 10Hz (Total) Accuracy: +/-0.25% C.M.R.: 150dB @50/60Hz N.M.R.: 100dB @50/60Hz Overvoltage Protection: 240Vrms Isolation: 3000VDC Power Consumption: 1W...

  • Page 48: Analog Output Modules

    -87K Serial Modules SERIES I-87022 I-87022-G I-87024 I-87024-G I-87026 I-87026-G I-87082 I-87082-G 87K Analog Output Modules I-87022 / I-87022-G (Gray color) 2-channel Isolated Analog Output Module Analog Output channels: 2 Voltage Output: 0-10V Current Output: 0~20mA/4~20mA Resolution: 12 bits Power-on pre-set value Safe value Channel to channel isolation Power Consumption: 2.4W...
