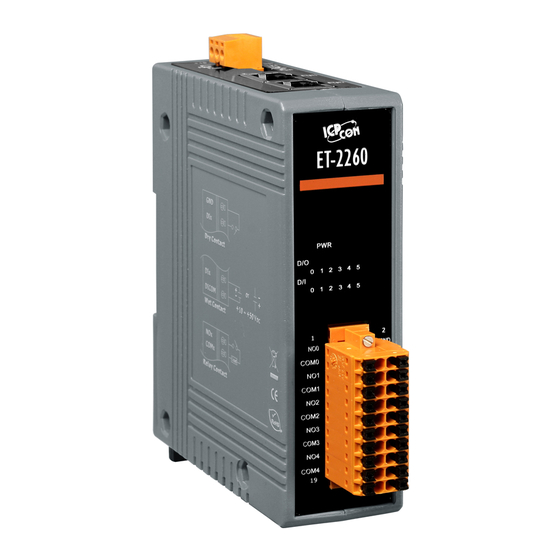

ET-2200 Series Ethernet I/O
Modules User Manual
Ethernet I/O Module
W
ARRANTY
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year from
the date of delivery to the original purchaser.
W
ARNING
ICP DAS assumes no liability for damages consequent to
the use of this product. ICP DAS reserves the right to
change this manual at any time without notice. The
information furnished by ICP DAS is believed to be accurate
and reliable. However, no responsibility is assumed by ICP
DAS for its use, nor for any infringements of patents or
other rights of third parties resulting from its use.
C
OPYRIGHT
Copyright © 2020 by ICP DAS. All rights are reserved.
T
RADEMARK
Names are used for identification only and may be
registered trademarks of their respective companies.
C
U
ONTACT
S
If you have any questions, please feel free to contact us via
email at:
service@icpdas.com
Ver. 1.5.0, Jun. 2020
S
UPPORT
This manual relates to the following
modules:
ET-2242, ET-2242U, ET-2251, ET-2254,
ET-2254P, ET-2255, ET-2255U, ET-2260,
ET-2261, ET-2261-16 and ET-2268
