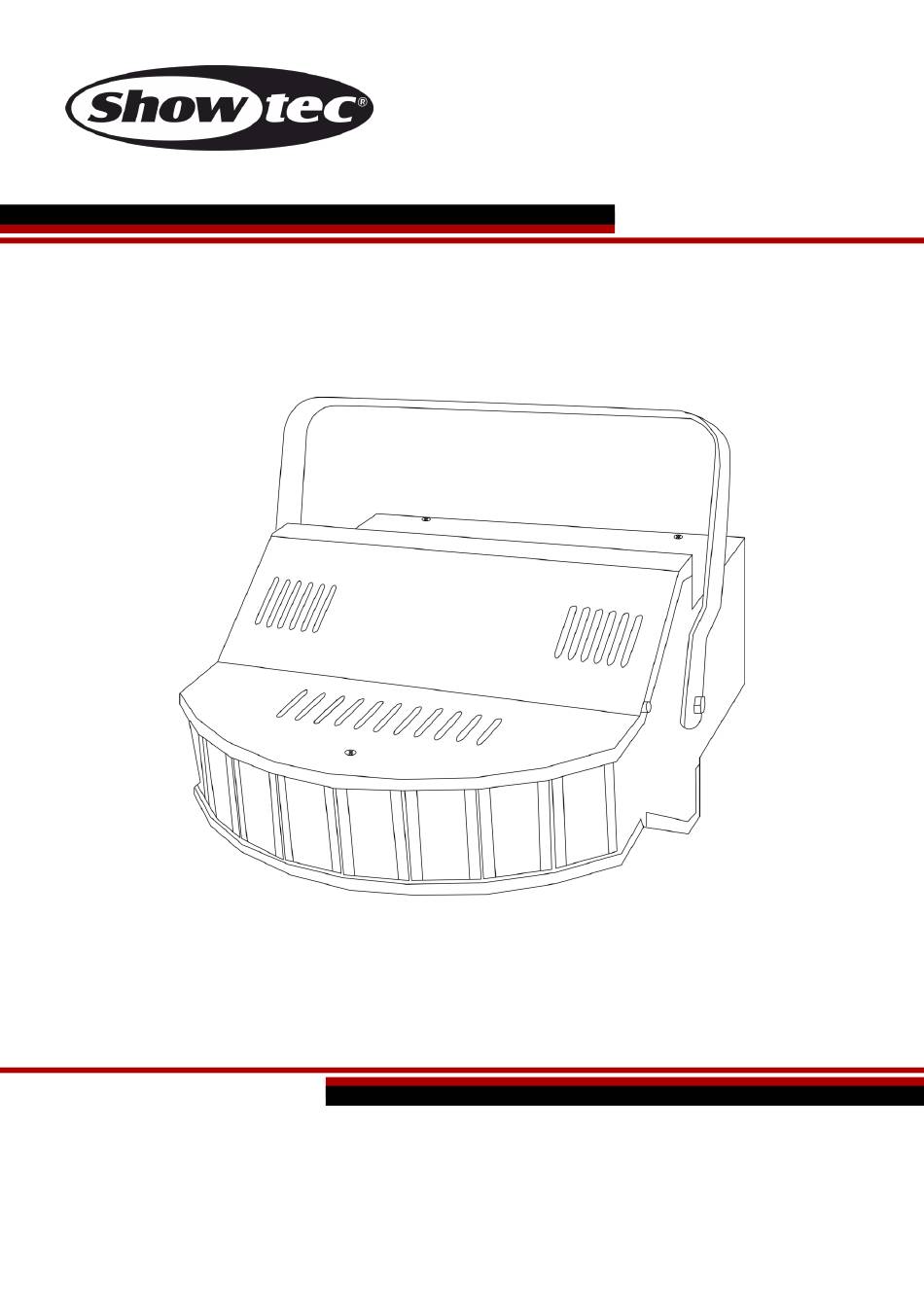

- Page 1 MANUAL ENGLISH Derby LED Ordercode: 43041 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Derby LED Table of contents Warning ....................................2 Unpacking Instructions ..............................2 LED Expected Lifespan ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................5 Claims ....................................5 Description of the device .............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Derby LED • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 4 Leave the device switched off until it has reached room temperature. • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Derby LED Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 6: Connection With The Mains
Derby LED Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL... -
Page 7: Description Of The Device
Derby LED Description of the device Features The Showtec Derby LED is a light fixture with high output and great effects. Music activated colourchanger effect Plug & Play Power supply: AC 100-240V - 50/60 Hz Power consumption: 30W ... -
Page 8: Backside
Derby LED Backside Fig. 02 02) Safety eye 03) Audio Sensitivity 04) Fuse 1A/250V 05) Built-in microphone 06) Ground/Earth connection 07) Power cable 100-240V Installation Remove all packing materials from the Derby LED. Check if all foam and plastic padding is removed. Connect all cables. -
Page 9: Sound-Controlled
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 04) The electric power supply cables must not show any damages or material fatigue. The Showtec Derby LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 10: Troubleshooting
Response: Suspect three potential problem areas as: the power supply, the lamp, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Derby LED to your Showtec dealer. 03) The fuse. Replace the fuse. See page 8 for replacing the fuse. -
Page 11: Dimensions
Derby LED Dimensions Ordercode: 43041... - Page 12 ©2017 Showtec...
