- Page 1 MANUAL ENGLISH Compact Power Lightset MKII Ordercode: 30268 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Compact Power Lightset MKII Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories .............................. -
Page 3: Warning
Compact Power Lightset MKII Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Compact Power Lightset MKII To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. Please consider that damages caused by manual modifications to the device are not subject to warranty.
-
Page 5: Operating Determinations
● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Connection With The Mains
Compact Power Lightset MKII Procedure ● If the Compact Power Lightset is lowered from the ceiling or high joists, professional trussing systems have to be used. ● Use a clamp to mount the Compact Power Lightset, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Compact Power Lightset MKII Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

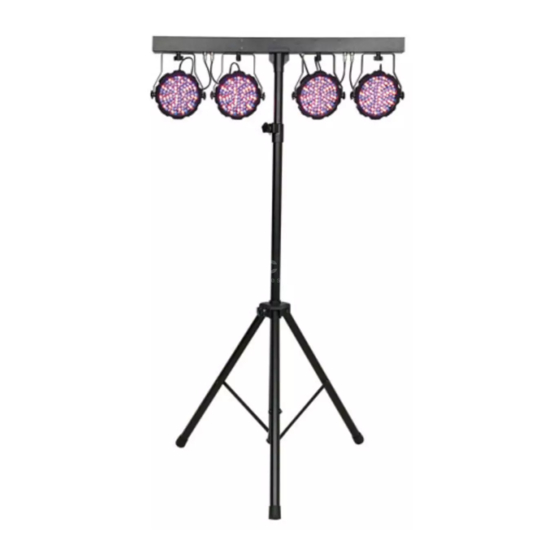

Features The Showtec Compact Power Lightset MKII is a T-bar with 4 LED spots on a light stand, packed in a hard case and a stand. It is a plug and play set that offers internal chase programs but also can be controlled by DMX or with the included footswitch. -
Page 9: Backside
DMX signal connector (OUT) 3-pin Installation Remove all packing materials from the Compact Power Lightset MKII. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
Compact Power Lightset MKII Control Modes There are 6 modes: Built-in programs Auto Run Static Color Sound-controlled Master/Slave DMX-512 (2, 3, 4, 7, 8, 14 or 15 CH) One Compact Power Lightset (Auto Run, Built-in programs, Static Color) 01) Fasten the effect light onto firm trussing or place it on the floor. -
Page 11: Multiple Compact Power Lightsets (Dmx512 Mode)
Compact Power Lightset MKII Multiple Compact Power Lightsets (DMX512 Mode) 01) Fasten the effect light onto firm trussing or place it on the floor. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 12: Fixture Linking
Compact Power Lightset MKII Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Compact Power Lightset MKII Control Panel A. LED Display B. Mode button C. Setup Button D. Up Button E. Down Button Fig. 04 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) -
Page 14: Menu Overview
Compact Power Lightset MKII Menu overview Ordercode: 30268... -
Page 15: Main Menu Options
Compact Power Lightset MKII Main Menu Options Auto run DMX address/DMX configuration Slave mode Sound-controlled mode Static Color Built-in programs 1. Auto Run Program With this menu you can activate the Auto run mode of the Compact Power Lightset. 01) Press the Mode button on the device until the display shows 02) Press the Setup button to enter the submenu. -
Page 16: Slave Mode
Compact Power Lightset MKII 3. Slave mode With this menu you can set the device as a Slave. 01) Press the Mode button until the display shows 02) If the device has not been set to slave, it is automatically classified as a master device. All slave devices will follow the master movement. -
Page 17: Footswitch
Compact Power Lightset MKII 07) If you choose , press the Setup button to scroll between the speed, fade time, strobe frequency or choose colors from segment 1 or 2: Footswitch 7. Footswitch Function (footswitch (30269) included !) 01) Step on the Auto Run pedal to enter the auto running mode. -
Page 18: Dmx Channels
Compact Power Lightset MKII DMX Channels 3 channels Channel 1 – Red Dimmer intensity 0-255 Gradual adjustment Red from 0-100% Channel 2 – Green Dimmer intensity 0-255 Gradual adjustment Green from 0-100% Channel 3 – Blue Dimmer intensity 0-255 Gradual adjustment Blue from 0-100% 4 channels Channel 1 –... - Page 19 Compact Power Lightset MKII Channel 3 – Blue Dimmer intensity (CH8 must be set between 1-255 0-255 Gradual adjustment Blue from 0-100% Channel 4 – Red Dimmer intensity (CH8 must be set between 1-255 0-255 Gradual adjustment Red from 0-100% Channel 5 –...
-
Page 20: Channels
Compact Power Lightset MKII 14 channels Channel 1 – Red Dimmer intensity (CH14 must be set between 1-255 0-255 Gradual adjustment Red from 0-100% Channel 2 – Green Dimmer intensity (CH14 must be set between 1-255 0-255 Gradual adjustment Green from 0-100% Channel 3 –... - Page 21 Compact Power Lightset MKII Channel 6 – Blue Dimmer intensity (CH14 must be set between 1-255 0-255 Gradual adjustment Blue from 0-100% Channel 7 – Red Dimmer intensity (CH14 must be set between 1-255 0-255 Gradual adjustment Red from 0-100% Channel 8 –...
-
Page 22: Channels
Compact Power Lightset MKII Channel 11 – Green Dimmer intensity (CH14 must be set between 1-255 0-255 Gradual adjustment Green from 0-100% Channel 12 – Blue Dimmer intensity (CH14 must be set between 1-255 0-255 Gradual adjustment Blue from 0-100% Channel 13 –Strobe (CH1- CH11 or CH12 and CH14 must be set between 1-255... -
Page 23: Channels
Compact Power Lightset MKII Channel 2 – Speed built-in programs (CH1 must be set between 80-239 0-255 Gradual speed adjustment, from slow to fast Channel 2 – Sound-controlled (CH1 must be set between 240-255 0-255 Sound sensitivity from less sensitivity to high sensitivity 15 channels Channel 1 –Control mode... - Page 24 Compact Power Lightset MKII Channel 7 – Red Dimmer intensity (CH1 must be set between 0-9, CH2 between 1-255 0-255 Gradual adjustment Red from 0-100% Channel 8 – Green Dimmer intensity (CH1 must be set between 0-9, CH2 between 1-255...
- Page 25 Compact Power Lightset MKII Channel 12 – Blue Dimmer intensity (CH1 must be set between 0-9, CH2 between 1-255 0-255 Gradual adjustment Blue from 0-100% Channel 13 – Red Dimmer intensity (CH1 must be set between 0-9, CH2 between 1-255...
-
Page 26: Channels
Compact Power Lightset MKII 7 channels Channel 1 – Red Dimmer intensity (CH7 must be set between 1-255 0-255 Gradual adjustment Red from 0-100% Channel 2 – Green Dimmer intensity (CH7 must be set between 1-255 0-255 Gradual adjustment Green from 0-100% Channel 3 –... -
Page 27: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Showtec Compact Power Lightset MKII requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. - Page 28 Compact Power Lightset MKII Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in. fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 29: Product Specifications
Compact Power Lightset MKII Product Specifications Model: Showtec Compact Lightset MKII Input Voltage: 100-240V AC, 50/60Hz Power Consumption DMX linking: 30pcs Fuse: 1A/250V Dimensions T-bar + 4 parcans: 1140 x 235 x 60 mm (LXWXH) Weight T-bar + 4 parcans:... -
Page 30: Dimensions
Compact Power Lightset MKII Dimensions T-bar + 4 parcans Stand Weight stand: 2,9 kg Ordercode: 30268... - Page 31 Compact Power Lightset MKII Footh controller Weight: 1,6 kg Weight: 2,8 kg Ordercode: 30268...
- Page 32 ©2018 Showtec...
