Summary of Contents for SHOWTEC Shogun Club G-40

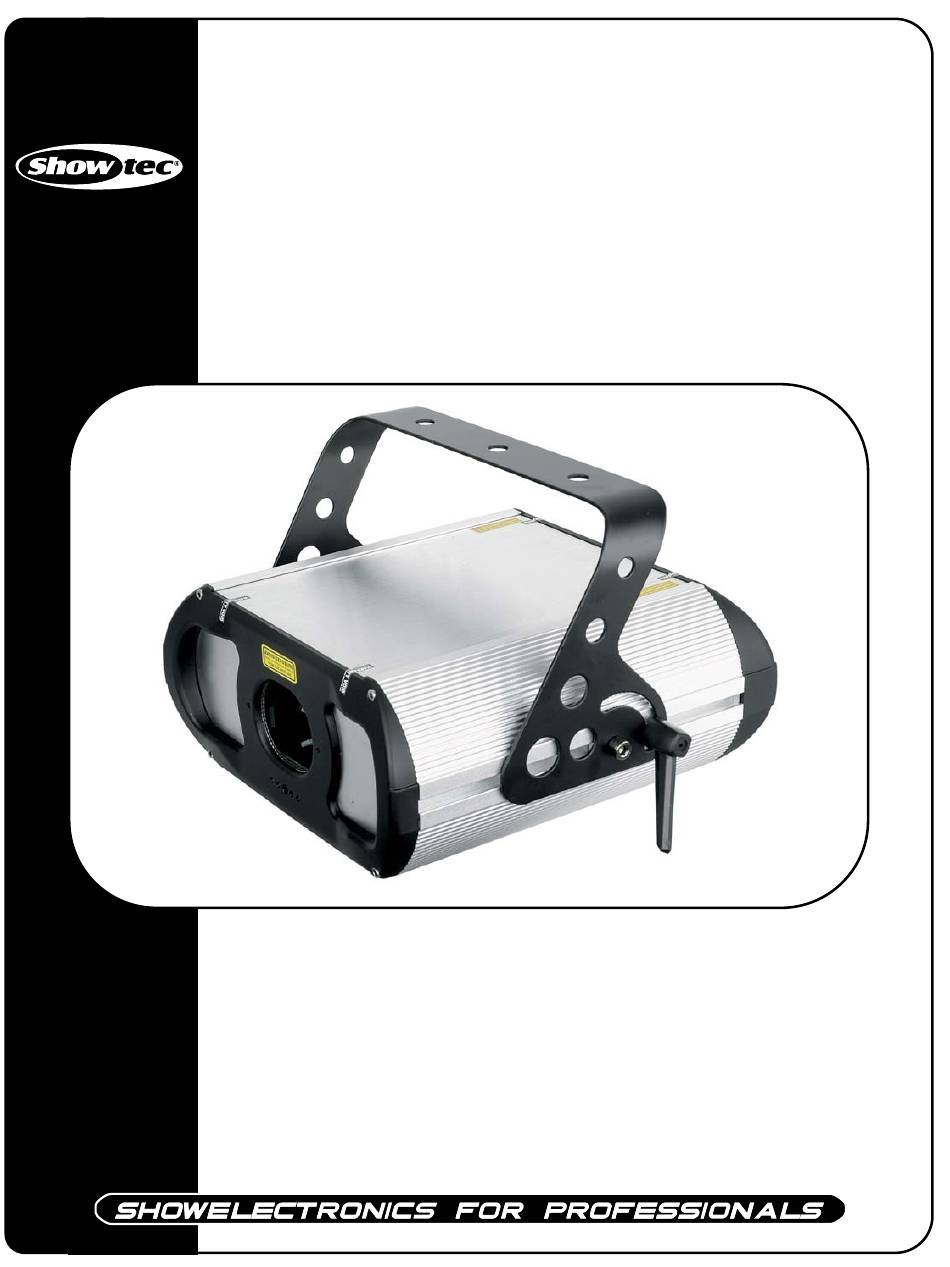

- Page 1 Shogun Club G-40 ORDERCODE 32020...
- Page 2 SHOGUN Club G-40 DMX-Kanalzuordnung und Werte Kanal 1 Kanal 2 Kanal 3 Betriebsmodus Strahlmodus Muster/Bilder/Texte Auswahl Wert Funktion Wert Funktion Wert Funktion 0-63 0-63 Normal 0 Text WELCOME 64-127 Auto Durchlauf 64-127 Schnell Unterbrochen 1 Muster Stern in Strichkreis 128-255...
- Page 3 SHOGUN Club G-40 DMX-Kanalzuordnung und Werte Kanal 3 Kanal 3 Muster/Bilder/Texte Auswahl Muster/Bilder/Texte Auswahl Wert Funktion Wert Funktion 65 Muster Dreieck unterbrochen oft 130 Bild Maus 3 66 Muster Dreieck unterbrochen 18 mal 131 Bild Maus 4 67 Muster Dreieck unterbrochen 3 mal Mitte...
- Page 4 SHOGUN Club G-40 DMX-Kanalzuordnung und Werte Kanal 3 Muster/Bilder/Texte Auswahl Wert Funktion 195 Muster Mini Stern 1 196 Muster Mini Stern 2 197 Muster Explosion 1 198 Muster Explosion 2 199 Muster Rotor 200 Muster Kreis groß unterbrochen oft 201 Bild...
- Page 5 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Shogun Club G-40 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 6: Table Of Contents
Showtec Showtec Shogun Club G-40 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Set Up and Operation..............……..……………………………….… One Shogun G-40 Stand-alone mode.........……………..……………………………….. One Shogun G-40 Sound-Active.………..…....………………………………………….…. One Shogun G-40 Auto Mode.…………...…......………………………………………….…. Multiple Shoguns G-40 Master-Slave...…..………………………………………..…………. -
Page 7: Warning
WARNING CAUTION ! EYEDAMAGES !!! NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!! NEVER PROJECT A SINGLE LASER POINT !!! CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to:... - Page 8 The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 9: Operating Determinations
Product Classification and Manufacturing Label Identification Laser Classification: Class IIIB Laser medium: wavelength 532 nm / Green Output: 40mW Cooling: TE Cooling CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or binoculars within a distance of 100mm may pose an eye hazard. This laser product is a Class IIIB laser and has an Interlocked housing. -
Page 10: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used. •... -
Page 11: Description
Description of the device Features The Showtec Shogun Club G-40 is a laser effect with a high output and great effects. • 40 mW green laser (532nm) • DMX-control via standard DMX-controller • 64 Patterns • 10K closed loop scanning pair •... -
Page 12: Backside
Backside Fig. 3 6) Dip Switches 10) Power ON/OFF Remote Interlock Connector DMX signal connector (OUT) 8) Sound Sensitivity control 12) IEC Power Connector / Fuse 2A / 250V 9) Key System DMX signal connector (IN) Remote Interlock Connector: Use a DB9 connector to connect to the Remote Interlock, which stops the beam being emitted once the connection loop has been opened. -
Page 13: One Shogun G-40 Stand-Alone Mode
One Shogun G-40 (Stand-alone) There are 4 possibilities: Stand Alone Sound-active mode (Master) Auto Mode (Master) 1. Fasten the Shogun onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Plug the cord into a proper electric power supply socket. FUNCTION DMX DIPSWITCH CHART Sound Active... -
Page 14: Multiple Shoguns G-40 Dmx Control
(DMX Control) 1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the Showtec Shogun bracket). Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the Shoguns and other devices. -
Page 15: Dmx Dipswitch Setting
DMX products must have their own "address" to receive DMX signals. Addresses on the Showtec Shogun Club G-40 are set by flipping the appropriate DMX dip switches. A standard DMX address for a Showtec Shogun G-40, which has 10 channels is as follow: Shogun G-40 Address Value DMX Dip Switches "ON"... -
Page 16: Dmx Quick Reference Chart
DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Switch Position DMX Address... -
Page 17: Dmx Channels
DMX Channels Channel 1 –Mode 0-63 DMX Control Sound Active 64-127 DMX Control Auto Run 128-191 Manual Select Sound Active 192-255 Manual Select Auto Run Channel 2 –Close Laser 0-63 Close Beam 64-127 Fast cut Beam 128-191 No cut Beam 192-255 Close Laser Channel 3 –Pattern Select... -
Page 18: Maintenance
Maintenance The Showtec Shogun Club G-40 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Carefully wipe both mirrors clean with glass cleaner and a soft cloth. -
Page 19: Troubleshooting
Response: Suspect three potential problem areas: the power supply, the laser, the fuse. 1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The laser. Return the device to your Showtec dealer. 3. The fuse. See page 13 for replacing the fuse. -
Page 20: Product Specifications
Product Specification Model: Showtec Shogun Club G-40 Voltage: 240V-50Hz (CE) Fuse: 2A / 250V Dimensions: 390x285x135mm (LxWxH) Weight: 5 kg Operation and Programming DMX Channels: 10 Signal input 3-pin XLR male Signal output 3-pin XLR female DMX-control via standard DMX-controller...
