Preparation
Advanced Preparations:
•
Be familiar with the controls of the range hood by reading
through Range Hood Operations, Page 12.
•
Place the range hood on a flat, stable surface. Connect the
range hood to a designated standard outlet (120-Volt, 60Hz,
AC only) and turn on the range hood. Verify all operations
of the range hood by referring to Range Hood Operations,
Page 12.
•
Place all supplied parts and required hardware on a flat, stable surface and verify
the existence of all supplied parts listed on Page 4.
•
Carefully remove the white plastic protective coat from the range hood.
Preparations:
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
•
Decide the location of the venting pipe from the hood to the outside. Refer to
•
A straight, short vent run will allow the hood to perform more efficiently.
•
Try to avoid as many transitions, elbows, and long run as possible. This may reduce the performance of the
hood.
•
IMPORTANT: Peel white plastic protective coat off the hood, if any.
•
Use silver tape or duct tape to seal joints between pipe sections.
•
For installing under the cabinet with recessed bottom, attach 4-inch wide wood filler strips (not provided) on
each side. Refer to Figure 1.
•
Using references in
hood exhaust under the cabinet.
CAUTION: If moving the cooking range is necessary to install the hood, turn OFF the power on an elec-
tric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.
•
Puncture the knockout holes (for mounting under the cabinet) on the hood as shown in Figure 2.
•
If necessary, attach two rubber stands with 3M adhesive tapes to the back corners of the hood.
•
Attach ducting transition to hood exhaust with included 10 round head screws as shown in Figure 3.

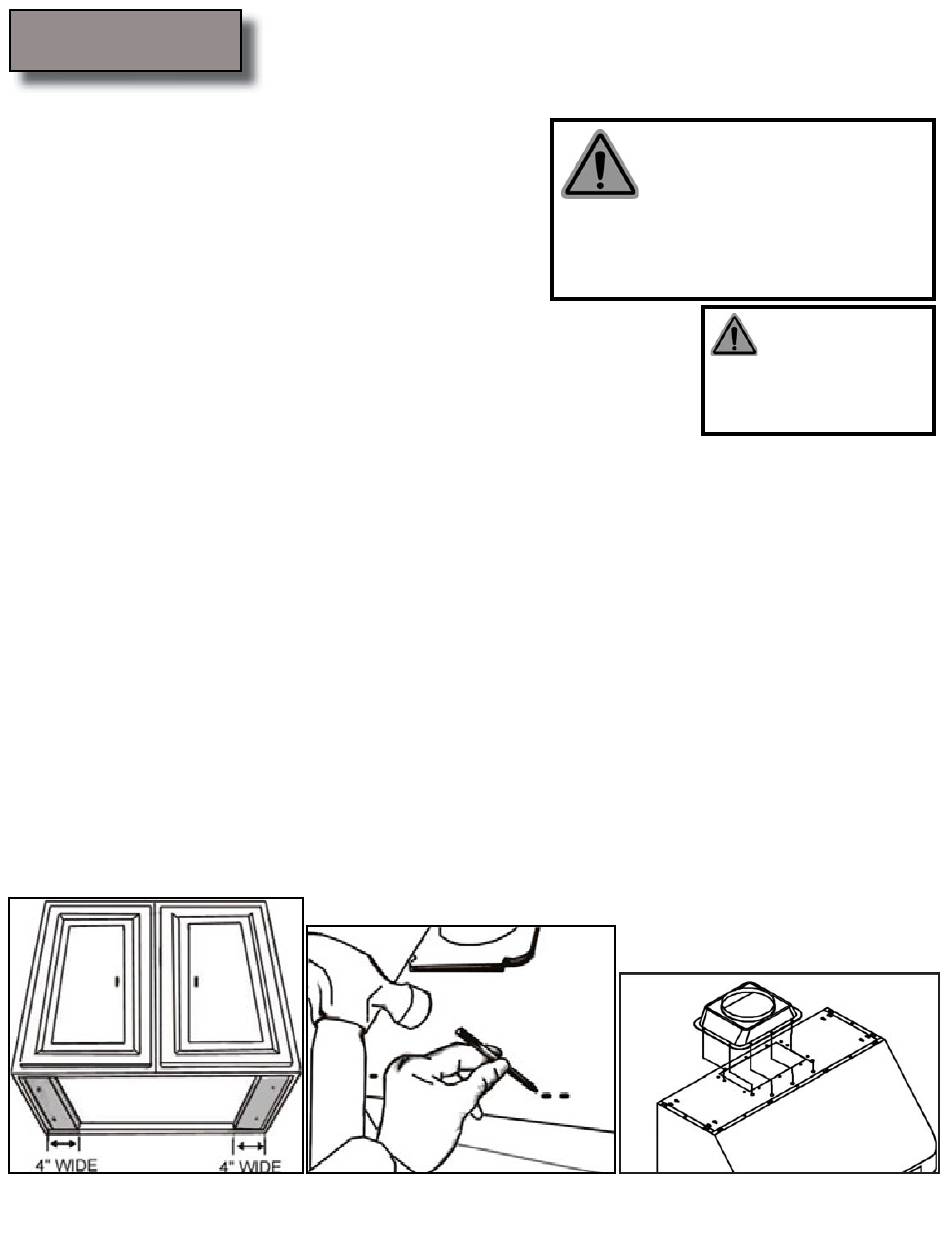

Figure 1
Measurements and Diagrams on Page 16, create access opening for electrical wires and
Require three or more person to move and
install this range hood. Spinal or other bodi-
ly injuries could occur if it is not followed.
Figure 2
WARNING
Excessive Weight
WARNING
Severe Injury
Rotating fan can cause severe
injury. Stay clear of fan when
motor is running.
Venting Methods on Page 7.
Figure 3
