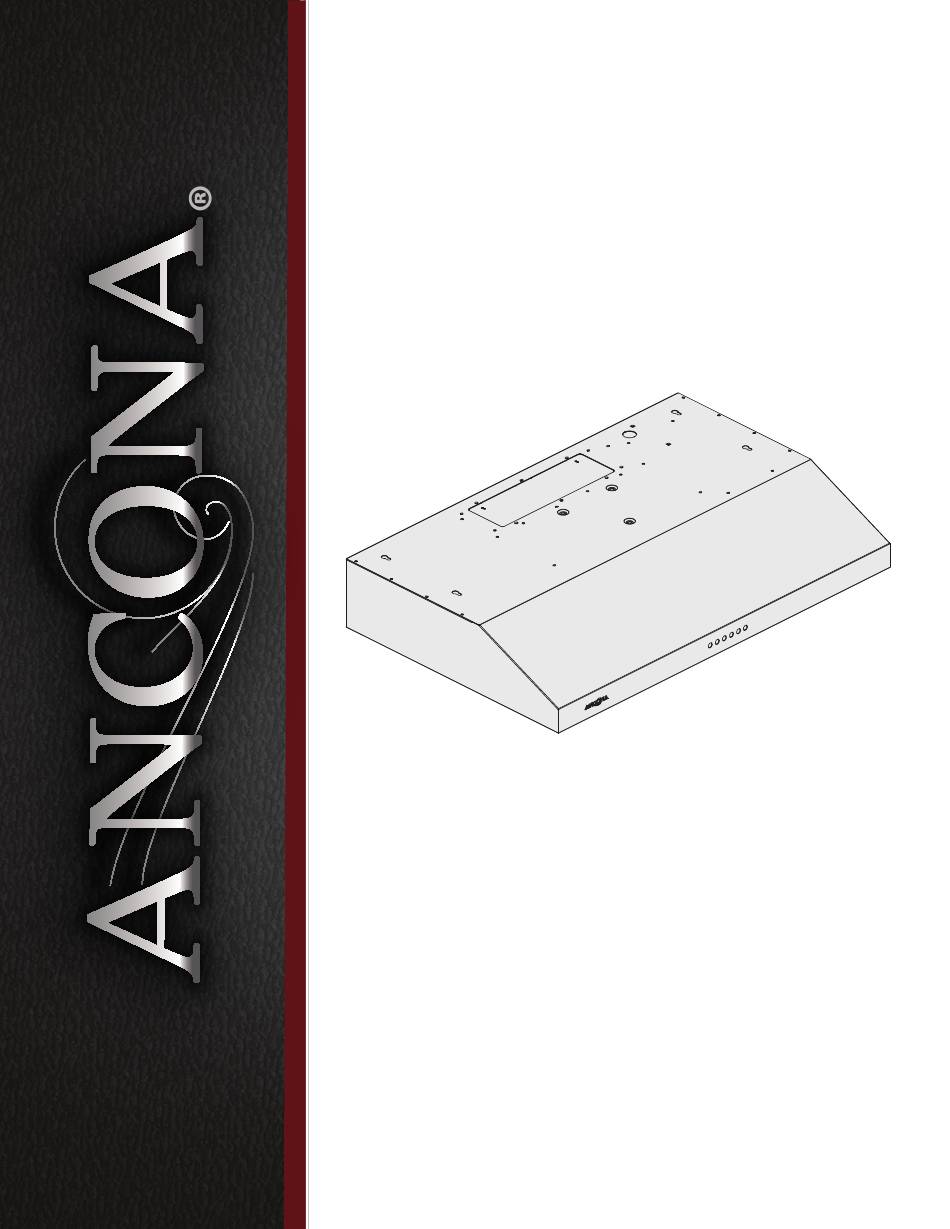

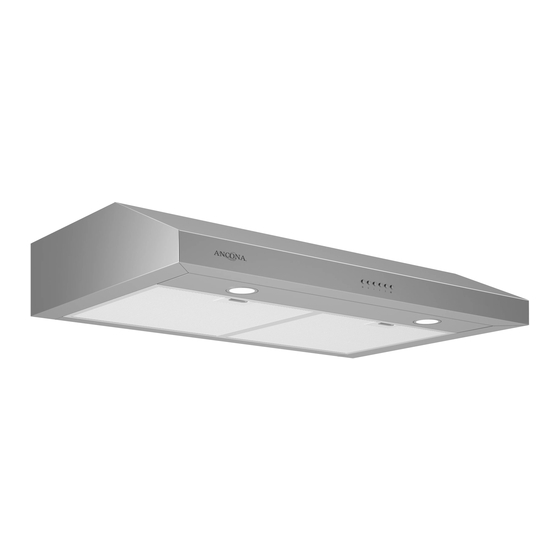

- Page 1 Range Hood Slim EL530 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1263-01 2017-07-20...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 8 to 14. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy •...
-
Page 6: Included Parts
Included Parts Range Hood 2 Filters Vent/Damper Rubber Bushing 11 Damper Screws Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal type of mounting screws and wall anchors to suit your home’s construction. -
Page 7: Range Hood Dimensions
Range Hood Dimensions Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 106 W (100 W + 2*2.5 W) Motor Input Power 100 W Amperage 0.83 A Speed Control Levels 4 Speeds Interference Protection Radio Frequency Interference Protected Motors Single Motor Control... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools •... -
Page 9: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 6 in. (15.3 cm) or •... - Page 10 Installation electric cook tops and minimum of 30-inch (76.2 cm) IMPORTANT: for gas stove tops and no higher than 30-inch (76.2 cm) • A minimum of 6 in. (15.2 cm) round or 3-1/4 x 10 in. (25.4 cm for electric cook tops. x 8.3 cm) rectangular duct (purchased separately) must be •...
-
Page 11: Step 6 - Create Exterior Ventilation (New Installation Only)
Installation • If performing new installation, please follow Step 6 • If performing replacement installation, please skip Step 6 and continue to Step 7 STEP 6 Create Exterior Ventilation (New Installation Only) • Choose one of the exterior venting methods shown on Page 10. • Create the exterior ventilation hole. -
Page 12: Step 8 - Attaching Vent/Damper
Installation STEP 8 Attaching Vent/Damper • Depending on the exterior venting option chosen (See page 10), pop out the steel panel on either the top or rear of the range hood. (See Fig #2) • Using the supplied screws, attach the rectangular vent/ damper to the rear of the range hood. -
Page 13: Step 11 Venting
Installation STEP 11 Venting • Depending on exterior ventilation chosen (see page 10), either exit the ducting through the ceiling or wall. • Always use rigid type metal/aluminum duct tube (follow the building codes in your area) to maximize airflow. Make sure that the backdraft flaps can open, to allow maximum airflow. Connect the duct tube to the vent/damper and securely seal with certified aluminum or foil tape so that it is air tight. Please check the building codes in your city to learn which tape product is recommended. -
Page 14: Step 12 - Install Filters
Installation STEP 12 Install Filters To install filters follow these four steps (See Figure #7): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 15: Operation
Operation Medium speed High speed Power Control Light control Quiet speed Low speed (On/off) This range hood is equipped with six electronic controls, two aluminum mesh filters with stainless steel panels, and two bright LED lights. The six electronic buttons control the intensity of the Lights, Speeds (Quiet, Low, Medium and High) and Power (On/Off). The Power Control (On/Off) offers startup, 3-minute delay or immediate power-off. -
Page 16: Range Hood Assembly
Range Hood Assembly Number Part LED Light Bulbs Light Panel Filters Safety Screen Cage Plate Electrical box cover Capacitor LED driver Switch box base Electrical box bracket Switch box Button Switch panel Switch box base Switch box bracket Housing Propeller Motor Propeller Cage Strengthen Strip... -
Page 17: Assembly
Assembly PCB Box 80.00 mm Circuit Diagram Blower assembly Number Part Propeller Cage Motor Propeller Cage Plate Safety screen — 17 —... -
Page 18: Electrical Assembly
ELECTRICAL ASSEMBLY: Assembly Description Description Electronic box cover Electronic box bracket Electrical Assembly Number Part Capacitor LED driver Electronic box cover Electronic box base Capacitor LED driver Electronic box base Electronic box bracket Troubleshooting Problem Possible Cause If the range hood or LED light Check if the range hood has been plugged in, make sure that all power does not operate after installation: has been turned back ON, fused not blown and all electrical wiring are... -
Page 19: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 1-888-998-2011 Website: www.mrappliance.com MAAN1263-01 © 2017 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
