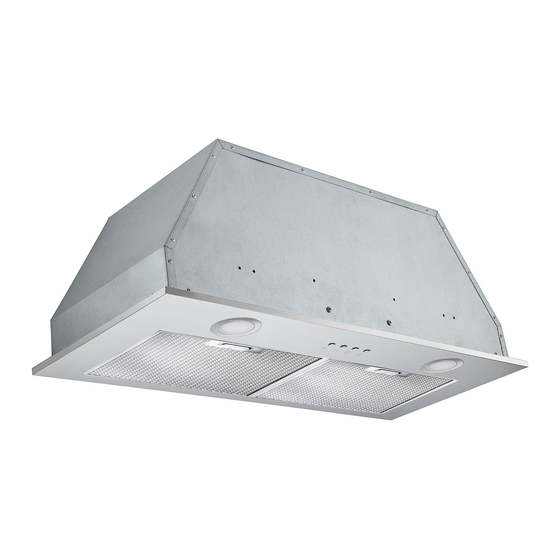

BUILT-IN INSERTA PLUS
28" & 36"
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following important information regarding
installation safety and maintenance.
Keep these instructions for future reference.
12/06/2015 MAAN1362-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the INSERTA PLUS AN-1364 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ancona INSERTA PLUS AN-1364

  • Page 1 DEL: BUILT-IN INSERTA PLUS 28" & 36" IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 12/06/2015 MAAN1362-01...
  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE The installation in this manual is intended for qualified installers, service technicians or persons with ● similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction.
  • Page 3 IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE WARNING: TO REDUCE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
  • Page 4 Damper / Flange Filters: 2 x 30" / 3 x 36" Damper Screws 4pcs Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal type of mounting screws and wall anchors to suit your home’s construction.
  • Page 5: Venting Requirements

    VENTING REQUIREMENTS: HEIGHT & CLEARANCE: • Vent system must terminate to the outside (Roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps.
  • Page 6: Calculating Vent System Length

    IMPORTANT: • A minimum of 6” round or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. •...
  • Page 7: Venting Methods

    VENTING METHODS: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, •...
  • Page 8: Electrical Requirements

    ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility to contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line.
  • Page 9 PREPARATIONS: Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 14. • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
  • Page 10: Installation

    INSTALLATION: Installations (refer to Page 4 for parts): NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on wall studs or lumbars is highly recommended. Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material.
  • Page 11 INSTALLATION: Step 4: Installing the hood • Remove the filters, halogen lights and the range hood cover. (See Fig #4) • Align range hood to the opening in the bottom of the cabinet and screw in using the screws provided. See Fig #4) Step 5: Venting •...
  • Page 12 INSTALLATION: Step 6: Finishing installation...
  • Page 13 MEASUREMENTS AND DIAGRAMS:...
  • Page 14: Control Panel Operation

    CONTROL PANEL OPERATION: Increase Decrease Timer Light Speed Speed Control Panel Layout and Buttons Configurations: Electronic Controls with Time Delay • Lights • Press the light button to turn halo en lights on and off. • Power settings • Press the button once and the motor starts to operate at Low speed.
  • Page 15: Troubleshooting

    TROUBLE SHOOTING: 1) If the range hood or halogen light does not • Check if the range hood has been plugged in, operate after installation: make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected.
  • Page 17: Specifications

    SPECIFICATIONS Specifications: Body Design Stainless Steel 430 120V / 60Hz (USA & Canada standard) cULus Power Rating 215 W General Input Power 210 W Motor Input Power 1.8 A Ampere Levels Of Speed Control 3 Levels 420 CFM Airflow Low speed 50 dBA Noise Level Number Of Motors Single Motor...
  • Page 18: Blower Assembly

    BLOWER ASSEMBLY: Description Grid Blower Impeller Motor ELECTRICAL ASSEMBLY: Description Description Electrical box base Screw (ST3*6) Electrical cover Capacitor Screw (ST3*10)
  • Page 19 USE AND CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
