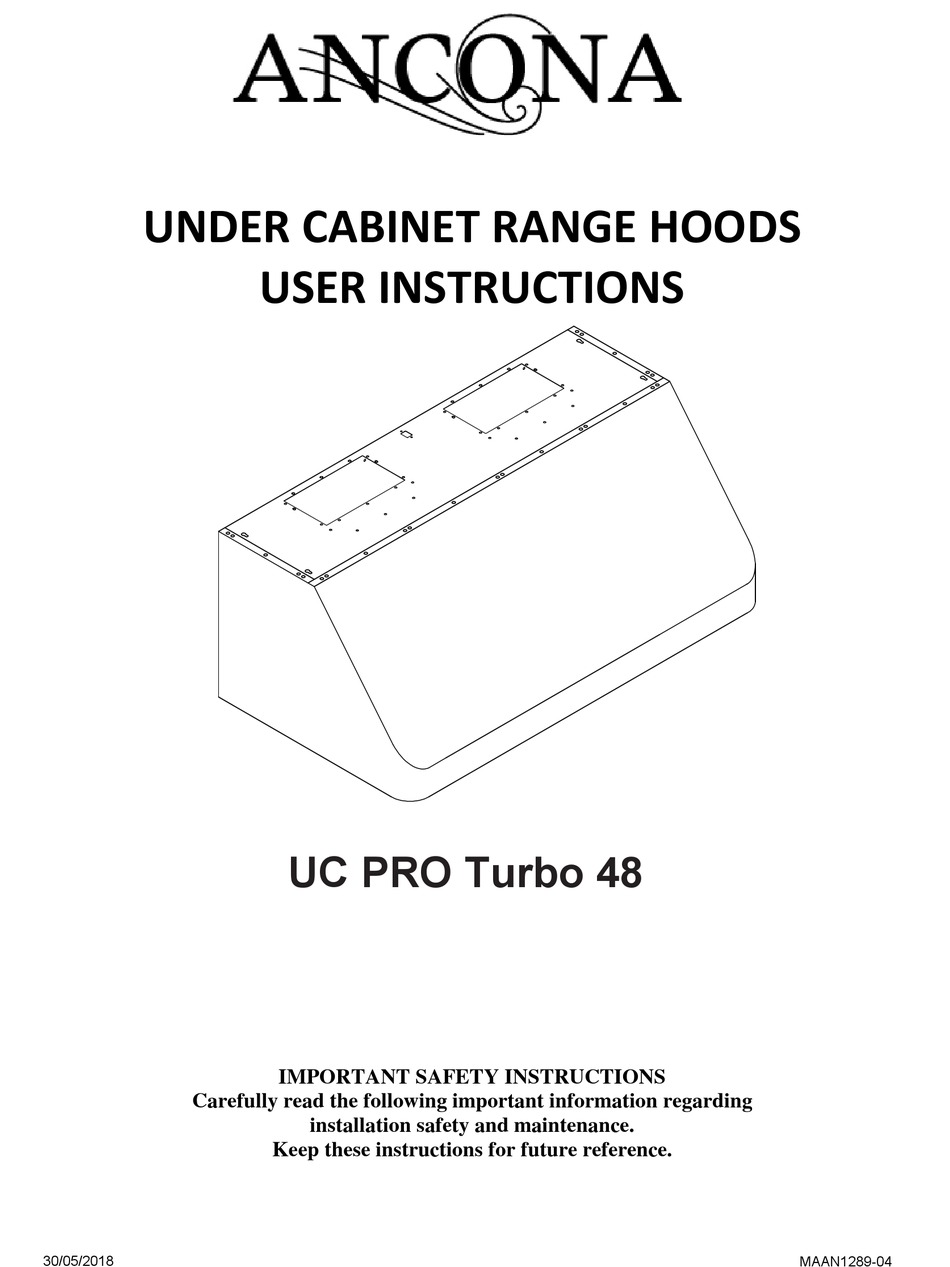

- Page 1 UC PRO Turbo 48 IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 30/05/2018 MAAN1289-04...
- Page 2 Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
- Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 4: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........14 Parts supplied...........4 Use and care information.......15 Venting requirements........5 Specifications..........15 Mount heights & clearance......5-6 Measurements & Diagrams......16-22 Calculating vent system length.......6 MAINTENANCE Venting methods..........7 Cleaning..........23 Electrical requirements........8 Replacing the filter & light bulb.....23 Preparation............9 Installation..........10-11 Range hood operations......12-13... -
Page 5: Parts Supplied
Parts supplied: Single-piece Chimney Under Cabinet Range Hood (Optional,sold separately) Hood-mounting Bracket (Qty: 2 PCS) Baffle Filter Spacer (Qty: 2 PCS) Ducting Transition (Qty: 2 PCS) Type C (For Hood-mounting Bracket) 6 pcs baffle filter Length:3/10" handle Qty: 8 + 1 PCS Type D(For Ducting Transition) Length:1/2"... -
Page 6: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall Cabinet or Single- caps. -
Page 7: Calculating Vent System Length
IMPORTANT: • A minimum of 8” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 8: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 9: Electrical Requirements
Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. -
Page 10: Preparation
Preparation Advanced Preparations: WARNING • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. • Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet (120-Volt, 60Hz, Require three or more person to move and AC only) and turn on the range hood. -
Page 11: Installation
Installation Installations (refer to Page 4 for parts): ( f t P I t ll ti Measure the distance between stove top and the bottom of range hood. A distance of 27” to 30” is recommended*. *Due to different ceiling height configurations, recom- mended height may not be applicable. - Page 12 Installation (Continued) Store excess wires in the wiring box. OPTIONAL: If you purchased a single-piece chimney cover, attach it to the hood in this step. Drop oil tunnel into recess support near rear of hood. Refer to Figure 9. To install baffle filters and stainless spacer(s), refer to Baffle Filters and Stainless Steel Spacers on Page 18 for baffle filter and stainless spacer placement.
-
Page 13: Range Hood Operations
Range Hood Operations Control Panel Layout and Buttons Configurations: This range hood is equipped with six electronic controls, oversized powerful centrifugal squirrel cage motor with stainless steel baffle filters and spacers, 3 W LED lights. The six electronic buttons control the intensity of the Lights, Speeds (Quiet, Low, Medium and High) and Power (On/Off). - Page 14 Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: • During this 3-minutes delay, changing speeds will not affect the countdown. Immediate Power-off • While the fans are in 3-minute power-off delay mode, press the Power Control (On/Off) button once to turn OFF the fans immediately.
-
Page 15: Installation Troubleshooting
Troubleshooting 1. If the range hood or LED light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 16: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 17: Measurements & Diagrams
Measurements and Diagrams • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. With optional single-piece chimney: Without optional single-piece chimney: Page 16 Page 16... - Page 18 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Without hood-mounting bracket: With hood-mounting bracket: Page 17...
- Page 19 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Rear Knockout Holes: Hood-mounting Bracket: Page 18...
- Page 20 Baffle Filters and Stainless Steel Spacers: Circuit Diagram: Page 19...
- Page 21 Range Hood Assembly: Description Description Hood Casing Oil Tunnel Screw for Mounting Bracket Light Panel Mounting Bracket LED Light Power Cord Stainless Steel Spacer Ducting Transition Baffle Filter Handle Screw for Ducting Transition Screw for Light Panel Blower Control Electrical Assembly Baffle Filter Panel Page 20...
- Page 22 Blower Assembly: Description Description 4.1 Screw 4.5 Motor 4.2 Air Flow Grill 4.6 Right Squirrel Cage 4.3 Left Locknut 4.7 Right Locknut 4.4 Left Squirrel Cage 4.8 Air Chamber Optional Single-Piece Chimney (Sold Separately): Description Description Screws (3/16” x 3/8”) Single-Piece Chimney Cover (Size Varies) Page 21...
- Page 23 Electrical Assembly: Description Description 21.1 Bolt 21.6 Electrical Box Base 21.2 Electrical Box 21.7 Screw 21.3 Screws 21.8 Capacitor 21.4 Processor Board 21.9 Screw 21.5 Electrical Box Cover Page 22...
-
Page 24: Cleaning
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! SAFETY WARNING N For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •...
