Summary of Contents for Ancona GCP430

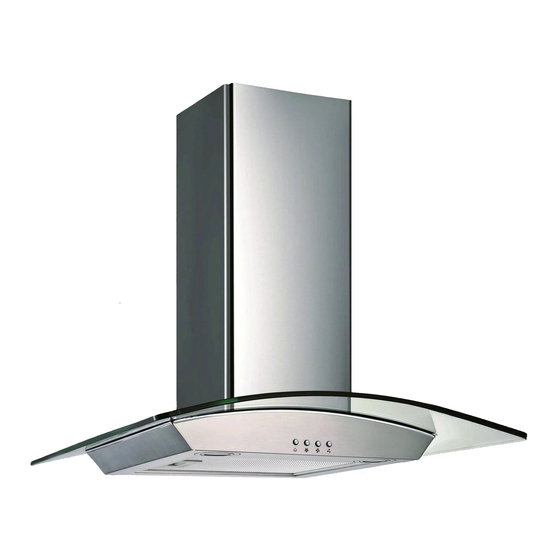

- Page 1 MODEL: GCP430 & GCP436 IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 2015-11-17 MAAN-1186-01...
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE The installation in this manual is intended for qualified installers, service technicians or persons ● with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 IMPORTANT SAFETY NOTICE READ AND SAVE THESE INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE WARNING: TO REDUCE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite.
-
Page 4: Parts Supplied
PARTS SUPPLIED: 1 FILTER Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal type of mounting screws and wall anchors to suit your home’s construction. -
Page 5: Height & Clearance
VENTING REQUIREMENTS: HEIGHT & CLEARANCE: • Vent system must terminate to the outside (Roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. -
Page 6: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. •... -
Page 7: Venting Methods
VENTING METHODS: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, •... -
Page 8: Electrical Requirements
ELECTRICAL REQUIREMENTS: IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility to contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. - Page 9 PREPARATIONS: Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 13. • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
- Page 10 INSTALLATION: INSTALLATION: Installations (r e fer to Page 4 for parts): Installations (refer to Page 4 for parts): NOTE: Use thr eaded drywall anchors only when NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting mounting the hood on sheet rock.
- Page 11 INSTALLATION CONTINUE: Step 5: Installing the damper • Fix the damper on the top vent of hood with 4 screws (requires screw E). • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. •...
- Page 12 INSTALLATION CONTINUE: Step 7: Installing the decorative chimney and inner chimney bracket • Remove the protective coating from the inner chimney. Carefully slide the inner chimney down into the outer chimney. • Use 2 screws (requires screw F) to fix the two chimneys together with the lower chimney bracket, make sure inside chimney is moving freely.
-
Page 13: Control Panel Operation
CONTROL PANEL OPERATION: Control Panel Layout and Buttons Configurations: Lights: Press the light button to turn halogen lights on and off. Power Settings: once the motor starts to operate at low speed. Press the Press the again and the motor will reach medium speed. once Press the again and the motor will reach high speed. - Page 14 6 2/5"(163mm) 11 7/8"(302mm) 11 1/4"(286mm) 11 3/4"(298mm) 9 1/16"(231mm) 4 1/2"(115mm) 4 1/2"(115mm) 1 5/8" 3 1/8"(82mm) 3 1/8"(82mm) (40mm) 1 1/8" 5/8"(16mm) (28mm) 9 15/16"(253mm)
- Page 15 MEASUREMENTS AND DIAGRAMS: Height of range hood: 22.4” - 41.8” (569mm -1061mm). This range hood can reach a 9' ceiling if installed at 30.5" from the cooking surface. 10.8" 19.6" to 39" (275 mm) (500 mm to 992 mm) 2.72” 19.6”...
-
Page 16: Troubleshooting
TROUBLE SHOOTING: 1) If the range hood or halogen light does not • Check if the range hood has been plugged in, operate after installation: make sure that all power has been turned back ON,fused not blown and all electrical wiring are properly connected. -
Page 17: Range Hood Assembly
RANGE HOOD ASSEMBLY: Aluminum filter LED light puck Switch panel Rubber strip Switch box Electronic switch Switch box cover Switch bracket Blower Propeller Motor Inlet grid Housing set Hook Outlet Power cord PCB box base PCB box cover Glass Outer chimney Outer chimney bracket Inner chimney Inner chimney bracket... -
Page 18: Specifications
SPECIFICATIONS: Body design Stainless steel Power Rating 120V / 60Hz (USA & Canada standard) cETLus Certified Total input power 235.1W Motor Input Power 230W Total Ampere 1.96A Levels of speed control 3 levels Radio frequency interference protected Interference Protection 400 CFM Air Flow Low speed 52 dBA Noise Level... -
Page 19: Blower Assembly
BLOWER ASSEMBLY: Description Description Incabloc Rubber Blower Aluminum Cover Wind Wheel Nut Plastic Wind Net Wind Wheel Sealing Gasket Motor ELECTRICAL ASSEMBLY: Description Description PCB box base Capacitor PCB box cover... - Page 20 USE AND CARE INFORMATION: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing.
