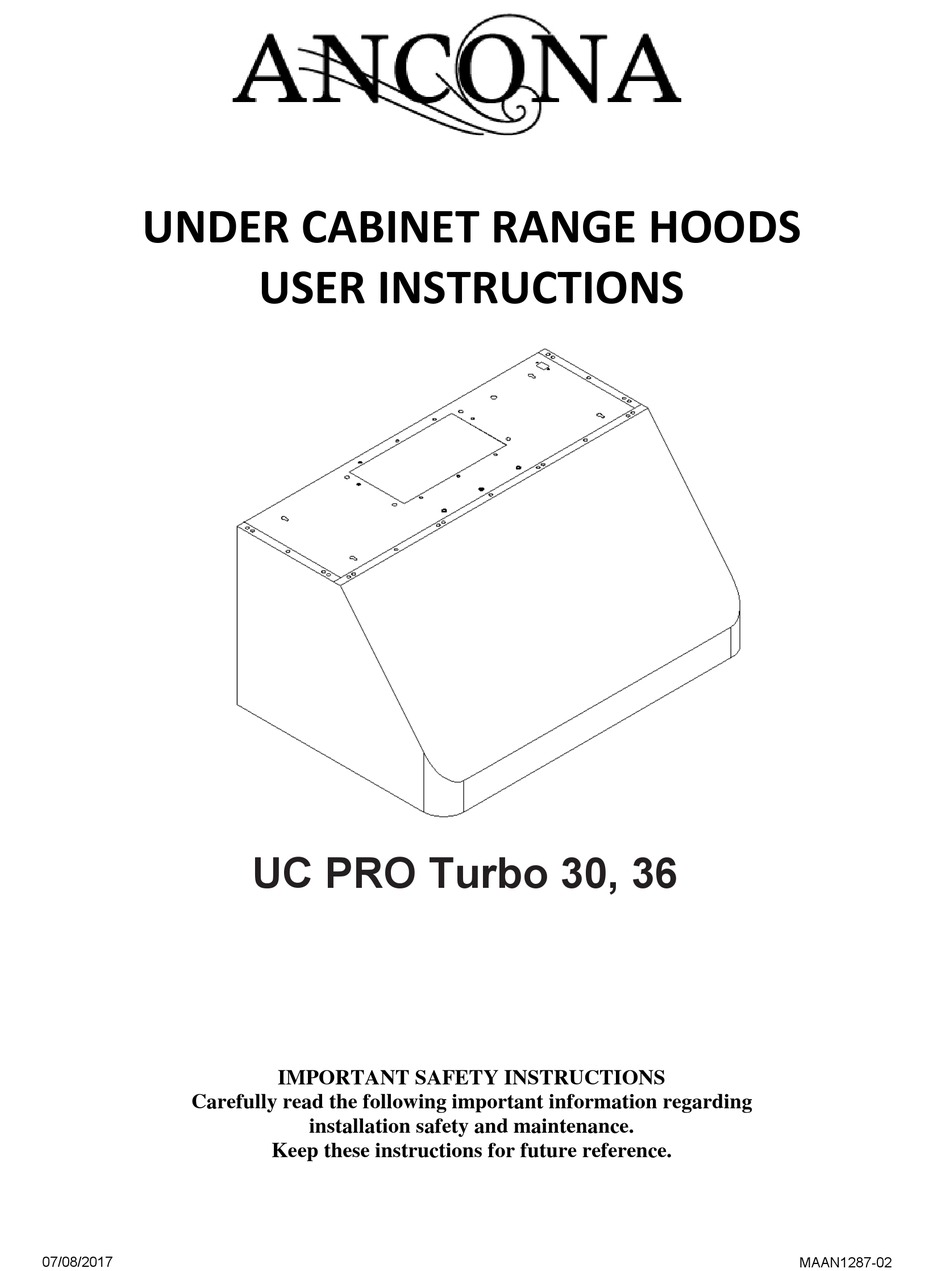

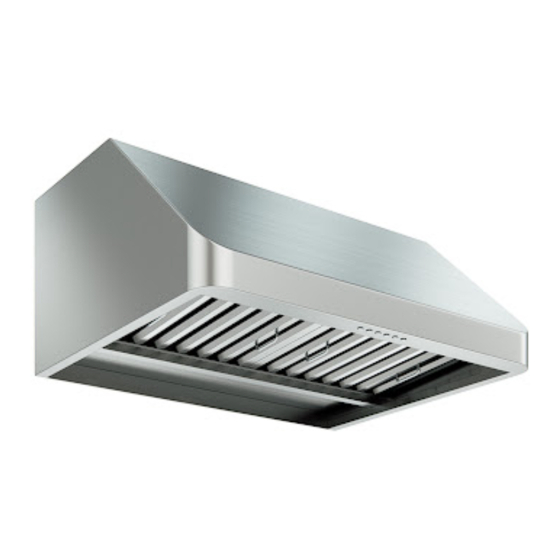

UC PRO Turbo 30, 36
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following important information regarding
installation safety and maintenance.
Keep these instructions for future reference.
07/08/2017
MAAN1287-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC PRO Turbo 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ancona UC PRO Turbo 30

  • Page 1    UC PRO Turbo 30, 36 IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance. Keep these instructions for future reference. 07/08/2017 MAAN1287-02...
  • Page 2 Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
  • Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
  • Page 4: Table Of Contents

    Table of Contents INSTALLATION USE AND CARE Tools needed............3 Troubleshooting...........14 Parts supplied...........4 Use and care information.......15 Venting requirements........5 Specifications..........15 Mount heights & clearance......5-6 Measurements & Diagrams......16-22 Calculating vent system length.......6 MAINTENANCE Venting methods..........7 Cleaning..........23 Electrical requirements........8 Replacing the filter & light bulb.....23 Preparation............9 WARRANTY Installation..........10-11...
  • Page 5: Parts Supplied

    Parts supplied: Under Cabinet Range Hood Single-piece Chimney (Optional) Qty: 4 PCS Qty: 4 PCS (For sheet rock only) Hood-mounting Bracket (Qty: 2PCS) Ducting Transition Qty: 8 PCS (Flat head) Optional for Qty: 8 PCS Single-piece Chimney Qty: 10 PCS Baffle Filters Qty: 8 PCS (Round head)
  • Page 6: Venting Requirements

    Venting Requirements Height & Clearance • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an at- tic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall Cabinet or Single- caps.
  • Page 7: Calculating Vent System Length

    IMPORTANT: • A minimum of 8” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct.
  • Page 8: Venting Methods

    Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
  • Page 9: Electrical Requirements

    Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
  • Page 10: Preparation

    Preparation Advanced Preparations: WARNING • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. • Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet (120-Volt, 60Hz, Require three or more person to move and AC only) and turn on the range hood.
  • Page 11: Installation

    Installation Installations (refer to Page 4 for parts): ( f t P I t ll ti Measure the distance between stove top and the bottom of range hood. A distance of 27” to 30” is recommended*. *Due to different ceiling height configurations, recom- mended height may not be applicable.
  • Page 12 Installation (Continued) Store excess wires in the wiring box. OPTIONAL: If you purchased a single-piece chimney cover, attach it to the hood in this step. Drop oil tunnel into recess support near rear of hood. Refer to Figure 9. To install baffle filters and stainless spacer(s), refer to Baffle Filters and Stainless Steel Spacers on Page 18 for baffle filter and stainless spacer placement.
  • Page 13: Range Hood Operations

    Range Hood Operations Control Panel Layout and Buttons Configurations: This range hood is equipped with six electronic controls, oversized powerful centrifugal squirrel cage motor with stainless steel baffle filters and spacers, two bright 3 W LED lights. The six electronic buttons control the intensity of the Lights, Speeds (Quiet, Low, Medium and High) and Power (On/Off).
  • Page 14 Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: • During this 3-minutes delay, changing speeds will not affect the countdown. Immediate Power-off • While the fans are in 3-minute power-off delay mode, press the Power Control (On/Off) button once to turn OFF the fans immediately.
  • Page 15: Installation Troubleshooting

    Troubleshooting 1. If the range hood or LED light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected.
  • Page 16: Use And Care Information

    Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing.
  • Page 17: Measurements & Diagrams

    Measurements and Diagrams • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. With optional single-piece chimney: Without optional single-piece chimney: Page 16 Page 16...
  • Page 18 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Without hood-mounting bracket: With hood-mounting bracket: Page 17...
  • Page 19 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Rear Knockout Holes: Hood-mounting Bracket: Page 18...
  • Page 20 Baffle Filters and Stainless Steel Spacers: 30” Range Hood 36” Range Hood Circuit Diagram: Page 19...
  • Page 21 Range Hood Assembly: Description Description Hood Casing Gasket Ducting Transition Baffle Filter Screw Stainless Steel Spacer Blower Assembly Baffle Filter Handle Oil Tunnel Hood-Mounting Bracket Panel Switch Assembly Light Panel Electrical Assembly Light Screws Screws Page 20...
  • Page 22 Blower Assembly: Description Description 4.1 Screw 4.5 Motor 4.2 Air Flow Grill 4.6 Right Squirrel Cage 4.3 Left Locknut 4.7 Right Locknut 4.4 Left Squirrel Cage Air Chamber Optional Single-Piece Chimney (Sold Separately): Description Description Screws (3/16” x 3/8”) Single-Piece Chimney Cover (Size Varies) Page 21...
  • Page 23 Electrical Assembly: Description Description 21.1 Bolt 21.8 Capacitor 21.2 Electrical Box 21.9 Transformer 21.3 Screws (3/16” x 3/8”) 21.10 Bolt Gasket 21.4 Processor Board 21.11 Screw Cap 21.5 Electrical Box Cover 21.12 Rubber Gasket 21.6 Electrical Box Base 21.13 Screws (3/16” x 3/8”) 21.7 Screws (3/16”...
  • Page 24: Cleaning

    Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! SAFETY WARNING N For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •...
  • Page 25: Coverage & Exceptions

    Subject to the limitations, exclusions and disclaimers hereof, AMS warrants exclusively to the original purchaser (the “Purchaser”) of this Ancona Range hood product (the “Product”) that it shall be free from defects in material or workmanship (the “Limited Product Warranty”). The duration of the Limited Product Warranty is 12 months from the date of original purchase (the “Warranty Period”).
