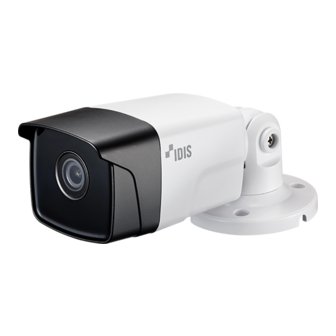

- Page 1 Network Camera Quick Guide DC-T4517WRXP Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
FCC Compliance Statement THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. - Page 4 Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ depending on the situation. RJ45 moduler jack, RJ45 waterproof rubber ring, RJ45 Network Camera connector protect cover, cable waterproof rubber ring, RJ45 connector back cover Screws, Anchors (each 3ea.) Quick Guide...
-
Page 5: Camera Installation
Camera Installation Waterproof Cable Installation RJ45 waterproof rubber ring RJ45 waterproof rubber ring PoE IN/OUT modular jack Plug in the network cable. PoE IN/OUT modular jack RJ45 connector protect cover cable waterproof rubber ring (2) (The waterproof rubber ring is fastened to the connector protect cover.) RJ45 connector protect cover RJ45 connector back cover (2) cable waterproof rubber ring (2) - Page 6 Not pulling the cable back may cause water to seep in and damage the product. Installation Screw the mounting bracket to the wall or ceiling by using screws(3) provided with the camera. Adjust the camera angle by bending the stand. Connect external devices, network and power adapter.
-
Page 7: Specifications
Specifications Vandal Resistance Out-door Ready IP66 External Dimensions (W x D x H) 70.1mm X 65mm X 197.5mm (2.75” x 2.55” x 7.77”) Weight (Main Unit) 0.44 kg (0.97lb) Working Temperature -20°C ~ +55°C (-4°F ~ +131°F) (Starting temperature: 32°F to 131°F (0°C to 55°C)) Operating Humidity 0% ~ 90% Power Input... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
