Gecko in.k506 User Manual

Please consult your spa user manual for complete info on the features of your spa system.
Description
Settings
Light Key
Mode
Main functions
Settings key
One press gives you access to a menu to manage the
settings of your spa. Refer to the settings section for
details about the settings menu.
Main screen
The main screen gives you access to your accessories
and water temperature. At the bottom of the screen
you will see any error or maintenance messages that
are present.
Power
Press any button to turn the keypad on.
After 30 minutes without activity it will shut off.
5

Quick Reference Card

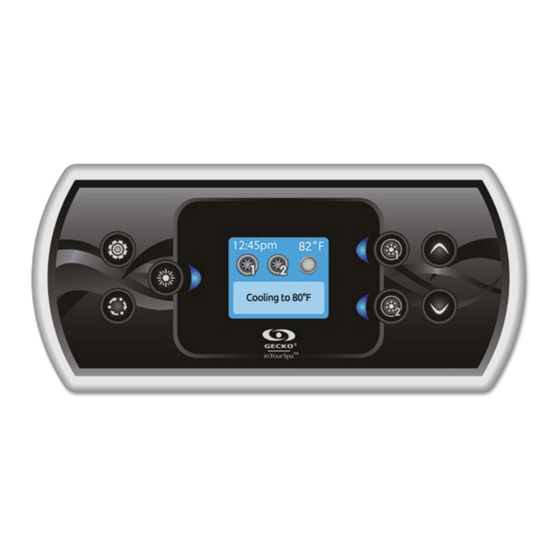

in.k506
intuitive color keypad
The in.k506 is built with all the great features you've come to love
in the in.k800, but in a smaller package. It is discreet, compact,
and unobtrusively beautiful. Save space without losing out on function.
Selection lights
*Functions for keys 1 and 2 will depend on your system's low level configuration.
Start or stop accessories
To start or stop an accessory, press the associated
button. Icons will become animated when their
accessory is turned on, and inanimate when turned
off. Icons on the screen will reflect the speed or state
of the devices running on your spa.
When an accessory has more than two states,
press the button until it reaches the desired state.
Note (version 14.00 and higher): A special buttons
and icons mapping may be used when the spa
configuration has 4 accessories* (3 pumps and a
blower or 4 pumps and no blower). In this case only,
buttons and icons are divided in 2 sets of accessories.
Button #1 starts or stops pump #1 and pump #2.
Button #2 starts or stops Pump #3 and Pump #4/
blower. Corresponding icons will be animated when
one or more accessories are on.
* Only Pump #1 can have a dual speed.
Mode key
Successive presses on the Mode key will give access
to control different optional accessories of your spa
such as Audio and others. Note that if an accessory
is not present in your spa configuration, its menu will
not appear. Refer to the following section to get details
About the possible accessories and their detailed
functionalities. The screen will revert back to the spa
mode if no key is pressed for 60 seconds.
If you don't have any accessories, Mode key can be
used to change your display orientation
Key 1
Key 2
Water temperature
The temperature shown at the top of the screen gives
the actual water temperature.
Use the Up and Down buttons to set the desired
temperature. The set point will appear in blue at
the bottom. After 3 seconds without any change to
the set temperature value, the keypad will resume the
normal display of messages.
Up
Down
