Summary of Contents for Gecko in.k330

  • Page 1 TechBook in.k330 an affordable touch of luxury Classy look Distinctive display Perfect 2 pump affordable solution...
  • Page 2: Table Of Contents

    Table of contents Warnings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 in�k330 keypad layout ����������������������������������������������������������������������������������������������������������������������������������������������������� 4 in�k330 dimensions ��������������������������������������������������������������������������������������������������������������������������������������������������������� 5 Installation of in�k330 ������������������������������������������������������������������������������������������������������������������������������������������������������ 5 Drilling template ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 6 Installation notes �������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Connecting in�k330 keypad to the spa control ���������������������������������������������������������������������������������������������������������������� 7 Keypad functions �������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Warnings

    Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group� in�k330™, in�yt™, in�ye™, and in�yj™ and their respective logos are trademarks of Gecko Alliance Group� All other product or company names that may be mentioned in this publication are tradenames,...
  • Page 4: Introduction

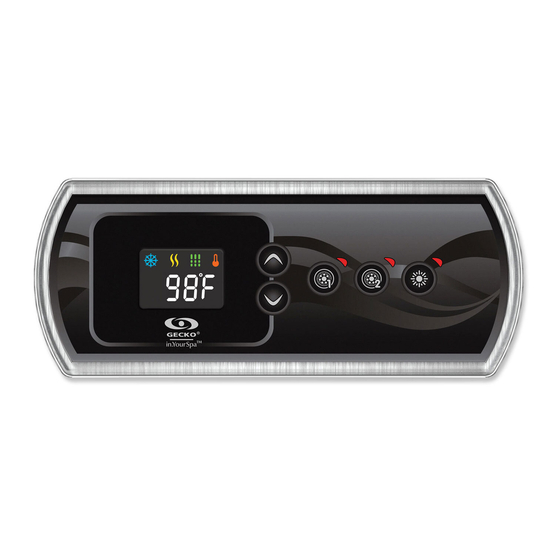

    An affordable touch of luxury With its larger dimension, sleekness and its backlit outer rim, Gecko’s in�k330 is an affordable alternative for those who want to experience luxury� Its design will enhance the look of any spa� Completely ergonomic, our new in�k330 has a big LCD screen with excellent contrasts and brightness�...
  • Page 5: In.k330 Keypad Layout

    1 Pump Model 2 Pump Model Light indicator Pump 2 indicator Pump indicator Pump 1 indicator Light indicator Up & Down Light Up & Down Pump 2 Pump Program/ Pump 1 Light Custom* * optional function Display interface...
  • Page 6: In.k330 Dimensions

    (76 mm) 7�20" (183 mm) 2�36" (60 mm) Installation of in.k330 Gasket with or without adhesive Optional wing nuts and spacers To install the in�k330, use the drilling template provided in this section� Determine the mounting location and stick the template on chosen location�...
  • Page 7: Drilling Template

    Drilling template 2�19" [55�71 mm] 6�20" [157�47 mm] R0�50" [R12�70 mm]...
  • Page 8: Installation Notes

    Connecting in.k330 keypad to the spa control Main keypad in�k330 To connect the keypad, remove the cover, then insert the in�link connector into the appropriate keypad connector (as illustrated)�...
  • Page 9: Keypad Functions

    Keypad functions Start or stop accessories To start or stop an accessory, press the associated button� Indicators will light up when the associated accessory is on� When an accessory has more than two states, press the button until it reaches the desired state� Indicators will flash when dual speed pumps are on at low speed, and will be solid at high speed�...
  • Page 10: Custom Key

    Keypad functions Custom key This key is available for 1-pump systems only� It is also available only if the spa controller configuration uses a functionality related to the Custom key� The following functions are available on this key: • Quick On Off •...
  • Page 11: Programming Steps

    Programming steps Program menu Instructions listed in this section assume the Program key is used, but if there is no Program key on the keypad, use the Light key instead. The program menu is accessible by holding down the Program key for 5 seconds� In the program menu the following parameters can be set: clock, filter or purge cycles, economy mode, heat pump mode and temperature units�...
  • Page 12: Setting Filter Or Purge Cycle Start Time

    Programming steps Setting filter or purge cycle start time The display will show FSxx, “xx” representing the starting hour of the cycle� Use the arrow keys to adjust the hours� Use the Program key to jump to the next parameter, filter duration (Fd)�...
  • Page 13: Setting Economy Start Time

    24 = continuous economy Heat pump regulation mode (Available only if a Gecko Brand Heat Pump (in.temp) is connected to your spa setup) The Regulation Modes will help you set up your ideal Heat Pump regulation settings� Use the arrow keys to choose one of the following modes depending on your need: •...
  • Page 14: Setting Temperature Unit

    Programming steps Heat pump modes EcoH (Eco Heat) SMRT (Smart Auto) In this mode, the heat pump is used as the unique source This mode borrows functionality from both Smart Heat of heating� The heating element is kept off and the heat and Cool modes and has the ability to select the proper pump is not used to cool the water should its temperature Heat or Cool mode automatically according to the water...
  • Page 15: Smart Winter Mode

    Others functions Smart Winter Mode Our Smart Winter Mode protects your system from the cold by turning pumps on several times a day to prevent water from freezing in pipes� The “SWM” indicator lights up when freezing is detected and flashes when the purge is active� Cooldown After heating the spa water to the desired Set Point, the heater is turned off, but its associated pump (Pump 1...
  • Page 16: Error Messages

    Error messages The list below shows the different error messages that can appear on the home screen� Refer to the troubleshooting and error codes section of the TechBook for your spa control for more details� Code Description Warning! HL Error No flow for more than 2 hours No flow condition Warning! Spa temp�...
  • Page 17: Specifications

    Specifications Model Part number Description 1 pump 0607-008098 IN�K336-CL-1OP-GE1 2 pump 0607-008099 IN�K336-CL-2OP-GE1 Environmental Operating temperature: -4°F (-20°C) to 149°F (65°C) Storage temperature: -22°F (-30°C) to 185°F (85°C) Water ingress protection: IPX-5 Mechanical Weight: 0�70 lb (0�3185 kg) Dimensions (W x H x D): 7�20"...
  • Page 18 9919-101654-A Rev. 12-2019 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance Inc., 2019 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners. Printed in Canada...
