TechBook
in.k300
the essential spa keypad
Bright LCD screen
Spa function icons
Affordable

Advertisement

Table of Contents
loading

Summary of Contents for Gecko in.k300

  • Page 1 TechBook in.k300 the essential spa keypad Bright LCD screen Spa function icons Affordable...
  • Page 2: Table Of Contents

    Table des matières Warnings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 in�k300 keypad layout ����������������������������������������������������������������������������������������������������������������������������������������������������� 4 in�k300 dimensions ��������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Installation of in�k300 ������������������������������������������������������������������������������������������������������������������������������������������������������ 4 Drilling template ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 5 Installation notes �������������������������������������������������������������������������������������������������������������������������������������������������������������� 6 Connecting in�k300 keypad to the spa pack ������������������������������������������������������������������������������������������������������������������� 6 Keypad functions �������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Warnings

    Compatible spa packs: in�xm2, in�xe, in�yt, in�yj, and in�ye with compatible software revision� Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group� in�k300™, in�xm2™, in�xe™, in�yt™, in�ye™, and in�yj™ and their respective logos are trademarks of Gecko Alliance Group�...
  • Page 4: Introduction

    Compact, with a big LCD screen; bright enough to be seen in day, simple enough to use in the middle of the night; affordable, yet solidly built� Item in.k300 Static LCD size (as measured diagonally) 1�5" Optional mounting with wing-nuts...

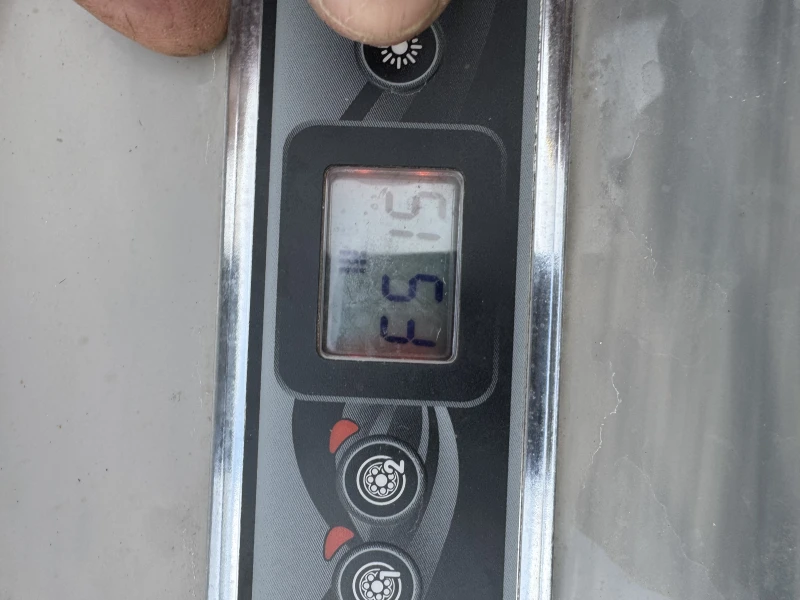

  • Page 5: In.k300 Keypad Layout

    1 Pump Model 2 Pump Model Pump 1 Pump 1 Light Light Pump 2 Indicator lights Down Indicator lights Up / Down Heater Filter Smart Winter Set Point Mode in.k300 dimensions Installation of in.k300 Gasket with or without adhesive 2�25"...
  • Page 6: Drilling Template

    Drilling template 36,58 mm 144,02 mm 131,32 mm R 6,35 mm R 6,35 mm...
  • Page 7: Installation Notes

    Connecting in.k300 keypad to the spa pack Main keypad in�k300 Main keypad in�k300 in.xe & in.xm 2 in.ye & in.yt To connect the in�k300 keypad, simply insert its in�link...
  • Page 8: Keypad Functions

    Keypad functions Start or stop accessories To start or stop an accessory, press the associated button� Indicators will light up when the associated accessory is on� When an accessory has more than two states, press the button until it reaches the desired state� Indicators will flash when dual speed pumps are on at low speed, and will be solid at high speed�...
  • Page 9: Programming Steps

    Programming steps Program menu The program menu is accessible by holding down the Light key for 5 seconds� In the program menu the following parameters can be set: clock, filter or purge cycles, economy mode and temperature units� While in the program menu, use the Up or Down key to adjust the parameters and use the Light key to jump to the next parameter�...
  • Page 10: Setting Filter Or Purge Cycle Start Time

    Programming steps Setting filter or purge cycle start time The display will show FSxx, “xx” representing the starting hour of the cycle� Use the arrow keys to adjust the hours� Use the Light key to jump to the next parameter, filter duration (Fd)�...
  • Page 11: Setting Economy Duration

    Programming steps Setting economy duration* The display will show Edxx, “xx” representing the duration in hours of the economy mode� Use the arrow keys to adjust the hour� Use the Light key to jump to the next parameter, temperature unit� 24 = continuous economy Setting temperature unit Water temperature can be displayed in either Fahrenheit (°F)
  • Page 12: Error Messages

    Error messages The list below shows the different error messages that can appear on the home screen� Refer to the troubleshooting and error codes section of the TechBook for your spa pack for more details� Code Message Warning! HL Error No flow for more than 2 hours No flow condition Danger! Relay stuck...
  • Page 13: Specifications

    Specifications Part number 1 pump model: 0607-008036 2 pump model: 0607-008037 Model IN�K300-CL-GE1 Environmental Operating temperature: -68°F (-20°C) to 149°F (65°C) Storage temperature: -22°F (-30°C) to 185°F (85°C) Humidity: Up to 70% condensing Water ingress protection: IPX-5 Mechanical Weight: 0�69 lb (313 g) Dimensions (W x H x D): 2�25”...
  • Page 14 9919-101218-D Rev. 02-2018 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance Inc., 2018 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners. Printed in Canada...
