  • Page 1 TechBook in.ye-V3 optimize your customers’ spa experience with Gecko’s new generation of in.ye control systems a lot more to offer relaxation in full colors with in.mix integration installation made simple...
  • Page 2: Table Of Contents

    Table of contents Warnings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Features �������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Overview - in�ye overview ����������������������������������������������������������������������������������������������������������������������������������������������������� 5 - in�ye dimensions ������������������������������������������������������������������������������������������������������������������������������������������������ 5 Installation - Floor installation procedure �������������������������������������������������������������������������������������������������������������������������������� 6 - Wall installation procedure with optional wall mounting brackets (option 1) ������������������������������������������������������� 7 - Wall installation procedure with optional wall mounting brackets (option 2) �������������������������������������������������������...
  • Page 3: Warnings

    STRUCTURE ARE NOT SPECIFIED AS LONG AS THEY ARE SUFFICIENT SO THAT THE AMBIENT TEMPERATURE AROUND THE CONTROLLER DOES NOT EXCEED 60°C� Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group� in�ye™, in�touch™, in�claw™, in�port™, in�flo™, in�put™, in�seal™, in�link™, in�t�cip™, in�stik™, in�k300™, in�k330™, in�k450™, in�k1000™, in�k1000+™, in�k1001™, in�k1001+™, in�k800™, in�k500™, heat�wav™, and their respective logos are Trademarks of...
  • Page 4: Introduction

    A lot more to offer After upgrading its smaller brother, we could not resist doing the same with Gecko’s in�ye� With its boosted CPU, external memory and higher capacity relays, in�ye-V3 now has the power it needs for new features��� like LED lights for troubleshooting clues�...
  • Page 5: Features

    Features The in�ye systems boast a long list of technical features� Each of them contributes to bringing the most advanced solutions available to in�ye equipped spa owners: in.claw in.port advanced cable clamp system communication port The in�claw is an easy-to-use, modular cable The in�port is the future of communication inside clamp system that doesn’t require any tool�...
  • Page 6: Overview

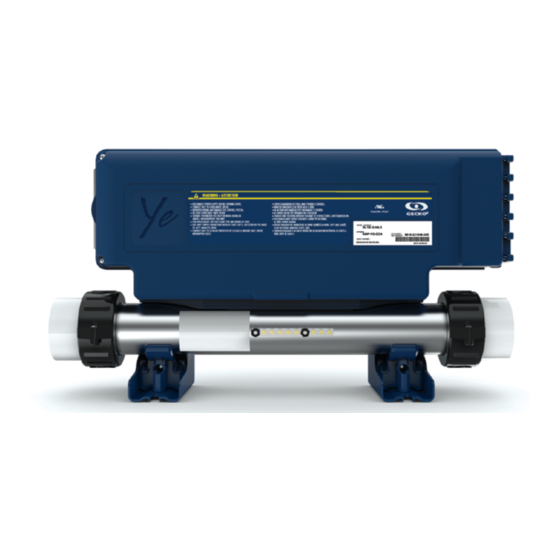

    Overview in.ye overview Industry-standard AMP Enough outputs for all connectors for outputs your spa needs in�claw - watertight strain relief system Main power Optional board COM entry connection (RS485) Optional accessories board a�port ( accessories Access to heater k�port ( keypad connections C1 - Main keypad...
  • Page 7: Installation

    Installation Important! Read before starting: Please note that countersunk screws should not be used as they can damage the power box support� The heat�wav element must be installed on the circuit of the main circulation pump (either the pressure or the suction side)�...
  • Page 8: Wall Installation Procedure With Optional Wall Mounting Brackets (Option 1)

    Installation Wall installation procedure with optional wall mounting brackets (option 1) Install mounting brackets on both sides of the rear of the Use 2 standard 2" x 4" or 2" x 6" wall studs, spaced unit, using screws provided with the brackets� 17-inch from center to center to fix the spa pack�...
  • Page 9: Wall Installation Procedure With Optional Wall Mounting Brackets (Option 2)

    Installation Wall installation procedure with optional wall mounting brackets (option 2) Install mounting brackets on both sides on the top at the Use 2 standard 2" x 4" or 2" x 6" wall studs, spaced rear, using screws provided with the brackets� 17-inch from center to center to fix the spa pack�...
  • Page 10: Connections

    Connections Connection of main keypad Note: always shut power down before connecting an accessory to the in�ye� To connect the keypad, remove the cover, then insert the in�link connector into the appropriate keypad connector (as illustrated)� Route the cable through the molded strain relief channel on the bottom right side of the spa pack (as illustrated)�...
  • Page 11: Heat.wav Water Heater Connections

    Connections heat.wav water heater connections Regulation probe in�flo Return Live Ground in�ye systems come with a high performance heat�wav The heat�wav heater is factory configured for 240 V / 4 kW, but it can be converted to a dedicated 120 V / 1 kW heater�...
  • Page 12: Connecting High Voltage Accessories: All Models

    Connections Connecting high voltage accessories: all models Two options are available with Y Series spa packs for connecting high voltage accessories: 0�250” quick-connect terminals, or AMP connectors conform to industry standards� Connecting high voltage accessories: North American model in.ye For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick connect terminals, straight and non-insulated for all types of connections, including the ground�...
  • Page 13: Connecting High Voltage Accessories: European Model In.ye

    Connections Connecting high voltage accessories: European model in.ye For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick connect terminals, straight and non-insulated for all types of connections, including the ground� Only 230 V accessories may be connected to the corresponding terminals of the printed circuit of the in�ye�...
  • Page 14: Amp Output Connectors And Typical Accessories

    Connections AMP output connectors and typical accessories Outputs illustrated below are typical accessories for AMP connectors� These configurations may change depending on your control� For more information, please refer to the wiring diagram on the casing cover� in.ye-3OP in.ye-5OP O3/CP DIRECT O3/CP DIRECT...
  • Page 15: Completing The Installation

    Connections Completing the installation Once all cables of high voltage accessories are connected Open the in�claw and place the wire inside in the middle and routed to the right openings, remove the empty of the round shape form� in�claw from the enclosure� Each in�claw can accept up to 2 high voltage cables, (OD 0�410'' (10�41 mm) max�...
  • Page 16: Wiring

    Wiring AMP connector and housing A special PP-1 splitter can be ordered (Part #: 9920-401369) and used to split an output into 2 parallel outputs (i�e� a single output could be used to drive two accessories like an ozonator and a UV generator, or a CP)� Both accessories driven must be of the same operating voltage (120 V or 240 V)�...
  • Page 17: Electrical Wiring

    Electrical wiring Electrical wiring : all models Warning Disconnect power Main power connection before starting electrical work� Wiring must be completed by a qualified electrician and must be done in accordance with the local electrical code� Bonding lug To complete the electrical connections of our in�ye control system you will need a Phillips screwdriver and a flat-head screwdriver (slotted head size between 5/16'' and 3/8'')�...
  • Page 18: Electrical Wiring: North Amercian Model In.ye

    Electrical wiring Electrical wiring: North Amercian model in.ye Refer to wiring diagram in the enclosure box lid for more information� 240 V (4 wires) 120 V (*3 wires) * If connected to a 3 wires Note: To convert model to a 120 V system, white cables from the AMP connectors and from all accessories must be shunted�...
  • Page 19: Electrical Wiring: European Model In.ye

    Electrical wiring Electrical wiring: European model in.ye Refer to wiring diagram in the enclosure box lid for more information� Warning in�ye�ce models must always be connected to a circuit protected by a Residual-Current Device (RCD) having a rated operating residual-current not exceeding 30 mA� Correct wiring of the electrical service box, RCD, and pack terminal block is essential! Check your electrical code for local regulations�...
  • Page 20: Controler Power Up

    Controler power up Start up of your control system To perform the control system start up, refer to the manual: Start up guide and basic configuration...
  • Page 21: Compatible Keypads

    Compatible keypads List of compatible keypads for the in.ye control system For more information on the compatible keypads for your control system refer to the corresponding Techbook� in�k300 main keypad in�k330 main keypad in�k450 main keypad in�k500 main keypad LCD display, 4 keys Color LCD display, 5 keys ACL display, 7 keys Color LCD display, 7 keys...
  • Page 22: Troubleshooting

    Troubleshooting Troubleshooting information for your control system You come across a problem with your control system, for the troubleshooting of your control system, refer to the manual: Troubleshooting guide...
  • Page 23: Specifications

    Specifications Environmental ratings Operating temperature: 32˚F (0°C) to 136˚F (58˚C)* Storage temperature: -13°F (-25°C) to 185°F (85°C) Humidity: Up to 85% RH, non condensing Level of waterproofing: IPX5 Mechanical in.ye Weight: 7�7 lb (3�5kg) Dimensions (W x H x D): 19�60"...
  • Page 24 Specifications in.ye North American electrical specifications Input rating: 120/240 V nominal (+5/-10 %) 60 Hz, (2 lines required with neutral) 48 A max� or (in.ye-3 only) : 120 V nominal only (+5/-10 %) 60 Hz, (single line with neutral) 16 A max� Heat.wav rating: Voltage : 120 V or 240 V, 60 Hz...
  • Page 25 Specifications in.ye European electrical specifications Input rating: 230/240 V nominal (+5/-10 %) 50 Hz, (3 lines required with neutral), three-phased system 16 A Max per phase� 230/240 V nominal (+5/-10 %) 50 Hz, (2 lines required with neutral), dual-phase system 20 A Max per phase� 230/240 V nominal (+5/-10 %) 50 Hz, (1 line required with neutral), single-phase system 48 A max�...
