TechBook
Gecko waterlab
Sanitation
made simple
A continuous water monitoring and recommendation solution
integrated under the spa

Advertisement

loading
Need help?

Need help?

Do you have a question about the waterlab and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gecko waterlab

  • Page 1 TechBook Gecko waterlab Sanitation made simple A continuous water monitoring and recommendation solution integrated under the spa...
  • Page 3 Table of contents 1. Warning ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 2. Introduction ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 6 3. Accessory Kit ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 4. Installation and Connections ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 9 • General setup in spa ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 9 • Installation of the intouch 3 & 3+ ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10 • Installation of the chamber in the spa �������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 11 5.
  • Page 4 THE USER TO THOROUGHLY READ AND FOLLOW THE MANUFACTURER’S INSTRUCTIONS FOR ANY CHEMICALS OR PRODUCTS BEFORE ADDING THEM TO THE SPA� THE GECKO WATERLAB CANNOT BE HELD LIABLE FOR ANY DAMAGES OR ISSUES ARISING FROM IMPROPER USE OF CHEMICALS OR PRODUCTS, FAILURE TO FOLLOW PRODUCT GUIDELINES, OR INACCURATE WATER TESTING RESULTS�...
  • Page 5 The home transmitter will need a main supply ( V in North America, V in Europe) nearby to allow connection of the transformer� Gecko ® , and their respective logos are Registered Trademarks of Gecko Alliance Group� in�touch 3 , in�xm2 in�xe , in�yt , in�ye , in�therm and their respective logos are Trademarks of Gecko Alliance Group�...
  • Page 6 2. Introduction Peace of mind Avoid unpleasant surprises! Access to exact water measurements from anywhere without color interpretation� Continuous water monitoring with alerts and reporting allows you to minimize risk of losing water� Simple to use No need for a chemistry degree! Simply receive clear and easy-to-follow instructions to maintain crystal-clear water and cin a single app to control your spa�...
  • Page 7 3. Accessory Kit in.touch 3 in.touch 3+ spa connectivity only connectivity and water monitoring Quick under-spa installation LED status light simplifies maintenance Easy to install on your router EN module (modem) CO module (spa) EN module (modem) CO module (spa) New clould infrastructure for reliable connectivity...

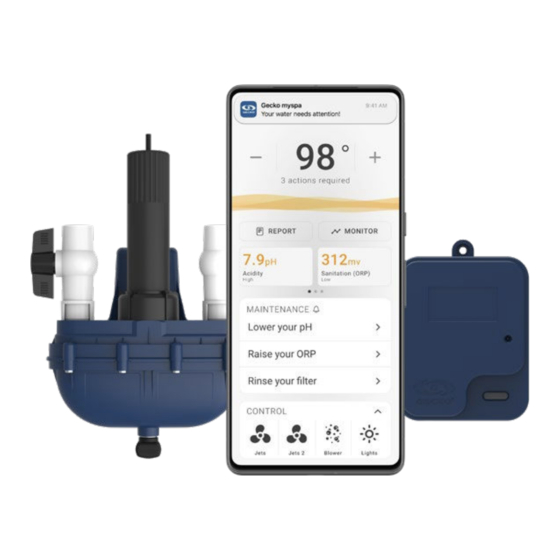

  • Page 8 29.87 29.87 9.05" (229.87 mm) Included Products: • CO Module (Spa) • EN Module (Home) • Ethernet cable • Micro USB power supply • Gecko waterlab probe • Gecko waterlab probe storage bottle • Gecko waterlab chamber • Test strips...
  • Page 9 4. Installation and Connections General setup in spa Main Install the chamber on a dedicated bypass and connect the outlet directly to the spa tub • The chamber must be installed after the filter • The chamber must be installed before any water treatment device (UV, Ozonator, etc�) •...
  • Page 10 Installation of the in.touch 3 & 3+ module CO module (Spa) installation EN (Home) installation Prior to any installation procedures, turn off the power of the spa Install the CO module unit under the hot tub skirt as high as possible in a corner facing towards your home router�...
  • Page 11 Installation of the chamber in the spa Slide the probe in the chamber and handscrew the nut Secure the chamber in the spa (2 ways) Use 2x #8 screws through the holes in the support� Use 2x 8-32 screw to use the 2 fixations in the back of the chamber support�...
  • Page 12 (after two years of use) to ensure accurate, repeatable measurements� It is important to use reliable pH Buffers to calibrate your pH electrode For more information follow the steps present in the Gecko app�...
  • Page 13 6. Logistics (Things to Keep in Mind) Storage Potential failure modes and causes The pH or ORP Electrode’ s sensing end should never Cracked glass membrane: be stored dry� Always maintain moisture at the Reading could be all over the range or none sensor and reference junction�...
  • Page 14 7. Troubleshooting The product is consisted of a total of three LEDs connected at each end (LAN port on router end, representing the three main boards present and the Home Transmitter�) If the problem still within the product� The Home Transmitter board occurs, try connecting with another cable�...
  • Page 15 BLUE color: Pairing the Spa Transmitter (CO Module) and the Home Transmitter (EN Module) This is the normal state of the Spa Transmitter LED� If the Spa Transmitter also shows solid blue, you are The pairing process is used when you need to all set! If this LED is blinking, refer to the Blinking LED replace one module of the in�touch 3 kit�...
  • Page 16 The CO module of the in�touch 3+ also contains a button with a visible LED status� The main purpose of the LED is to identify the status of the Gecko waterlab probe or as mentioned in the application section, enter specified modes such as calibration mode or take on demand samples�...
  • Page 17 8. Specifications Technical Specifications Weight Probe: 552�5g intouch 3 module: 320�5g Chamber: 618g EN moduel: 63�5g Power requirement: EN, 5Vdc/510mA Gecko waterlab, 12Vdc/70mA Chamber Max pressure: 18psi...
  • Page 18 Environmental conditions for optimal operation Probe Operating & storage temperature: 32°F (0°C) to 176°F (80°C) Gecko waterlab Operating temperature: -4°F (-20°C) to 140°F (60°C) Storage temperature: -22°F (-30°C) to 185°F (85°C) Humidity: Up to 85% noncondensing Level of waterproofing: IPX5 List of compatible devices and systems.
  • Page 20 9919-101886-A Rev� 10-2024 Gecko Alliance © Groupe Gecko Alliance inc�, 2024 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1�800�78�GECKO All trademarks or registered trademarks www�geckoalliance�com are the property of their respective owners�...
