- Page 1 in.xe Entry -level spa pack platform Techbook Featuring in.k200 keypad So advanced! It's like walking on water!
-
Page 2: Table Of Contents
in.xe table of contents Table of contents introduction ................... 3 in.xe error codes warnings ..................4 spa pack error codes & corrective actions features ................... 5 - spa pack error codes .............13 overview - corrective actions ............26 - in.xe overview ..............6 gfci trips ..................27 - in.xe dimensions ............. - Page 3 in.xe...
-
Page 4: Introduction
in.xe introduction in.xe Entry-level spa system platform. in.xe is an entry level spa system with Aeware signature design and breakthrough features. Part of the in.pac series of spa packs, heaters and accessories, in.xe is designed for typical entry level spa configurations: •... -
Page 5: Warnings
warnings in.xe WARNINGS: Before installing or connecting the unit, please read the following. * FOR UNITS FOR USE IN OTHER THAN SINGLE-FAMILY DWELLINGS, A CLEARLY LABELED EMERGENCY SWITCH SHALL BE PROVIDED AS PART OF THE INSTALLATION. THE SWITCH SHALL BE READILY ACCESSIBLE TO THE OCCUPANTS AND SHALL BE INSTALLED AT LEAST 5 FEET (1.52 M) AWAY, ADJACENT TO, AND WITHIN SIGHT OF THE UNIT. -
Page 6: Features
in.xe features In.xe boast a long list of technical features. Each of them stands on its own merits and contributes to bring to spa and hot tub manufacturers the most advanced solutions available to them: In.put: new input terminal bloc In.flo: dry-fire protect In.seal: watertight protection... -
Page 7: In.xe Overview

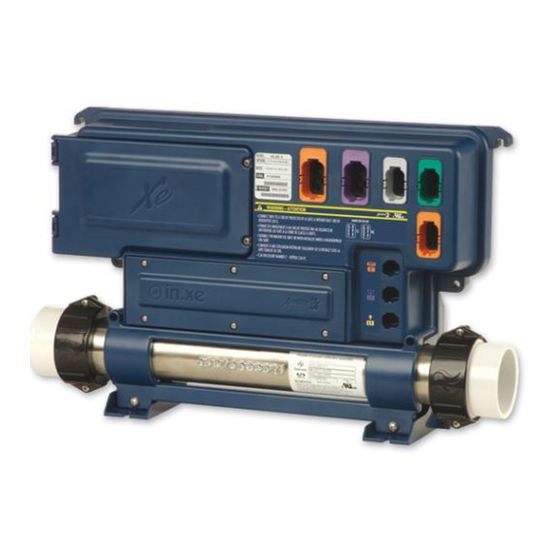

overview in.xe in.xe overview Accessory fuse Pump 2 fuse Pump 1 fuse 2 output connectors for pumps (rated for single/dual speed pumps) 2 connectors for outputs controlled by independent Installation brackets relays (for oz, cp, light, fiber Transformer fuse box, blower or any other Main power accessories) (120/240 vac entry connection... -
Page 8: In.xe Dimensions
in.xe overview in.xe dimensions: Front view Side view 17 .38" (441.5 mm) 5.51" (140 mm) 2.75" 11.75" (298.5 mm) (114.3mm) 5.69" (144.5mm) 4.5" (114.3 mm) 19.32" Ø.25" 5.37" (490.7 mm) (6 mm) (136.4 mm) 6" 3" 8.3" (152 mm) (76 mm) (210 mm) Bottom view 4.18"... -
Page 9: Installation - Floor Installation
installation in.xe Floor installation procedure 4" The following material is Slide back side of the unit's feet Now firmly attach unit to Note: The spa pack must be recommended: into the guide plate. It should wooden base by using the installed at least 4 inches above easily slide into place. -
Page 10: Wall Installation
in.xe installation Wall installation procedure The following material is recommended: Firmly attach lower mounting holes on each side of the pack with the (2) remaining screws and (2) washers. 4- # 10 screws of appropriate length with round, truss or pan head. 4- washers 1/2 OD x 1/16"... -
Page 11: Electrical Wiring
connections in.xe Electrical wiring Main electrical box GFCI panel For 240 VAC (4 wires) For 120 VAC (*3 wires) Warning! Correct wiring of the electrical *If connected to a 3 wire "For units for use in other than single-family dwellings, a clearly service box, GFCI, and pack system, no 240 VAC labeled emergency switch shall be provided as part of the installa-... - Page 12 in.xe connections Electrical wiring bonding lug Warning! To install the wiring for the wires into the terminals as Connect the bonding conduc- in.xe spa control, you'll need a indicated on the sticker and use tor to the bonding lug on the Phillips screwdriver and a flat the flat screwdriver to tighten front of the in.xe spa pack...
-
Page 13: In.link Connectors
connections in.xe HC connectors LC connectors LV connectors in.stik: automated software upload in.link connectors In.xe features in.links connectors with colored and tagged In.stik is a pen drive with in.link They all include an integrated polarizers. This new plug and connector technology has been connector very similar to an latch that keeps them safely in specifically designed for easy and safe assembly. - Page 14 ������� ������������������������������������ �����������������������������������...
- Page 15 in.k200...
-
Page 16: In.k200
in.k200 overview in.k200 Compact series of entry-level keypads that gives complete control to wet fingers! In.k200 is a compact keypad designed to be used with Aeware's in.xe spa systems. This new series of entry-level keypads comes in a waterproof plastic enclosure and it's available in dual pump or pump/blower configurations. -
Page 17: Function Description
function description in.k200 Smart winter mode Pump 1 Pump 2 Light Filter Heater Set Point indicator indicator indicator indicator indicator indicator indicator key 1 key 2 Light key Up/Down key... -
Page 18: General Specifications
in.k200 general specifications Dimensions: General specifications: Environmentals: Storage temperature: 70˚C (158˚F) to –30˚C (-22˚F) Operating temperature: 60˚C (140˚F) to –20˚C (-4˚F) Humidity: 100% condensing 2" (51 mm) Mechanical Specs: Weight: 0.41 kg (0.9 lbs) Dimensions (W x H x D): Front Panel: 4.750"... -
Page 19: Installation & Connections
installation & connections in.k200 Installing the in.k200 " The keypad should be installed directly onto the spa (or very 66 mm close to it) so that it is easily accessible to the user. • To install the in.k200, drill two 1” (25 mm) diameter holes at 2 5/8”... - Page 20 in.k200 installation & connections Connecting in.k200 main keypad to in.xe in.k200 The in.k200 comes with a 10 ft cable and an in.link connector. To connect the in.k200, simply insert its in.link connector into the appropriate keypad connector (as illustrated). Connect the main keypad in.k200 as indicated here.
-
Page 21: Instructions
instructions in.k200 �� �� �� �� Key 1 Key 2 (2 Pump) Key 2 (2 Pump/Blower) Light key Press Key 1 key to turn Pump 1 Press Key 2 key to turn Pump 2 Press Key 2 to turn Pump 2 Press Light key to turn light on. - Page 22 in.k200 instructions �� ���� Up/Down keys Programming filter cycles Setting filter cycle duration Filter cycle frequency Use Up or Down key to set Depending on system configu- Press and hold Light key until Press Light key again. The desired water temperature. ration the system performs the display shows dxx, with "xx"...
- Page 23 instructions in.k200 ���� Purge cycle frequency Programming purge cycles Water temperature regulation Smart Winter Mode Our Smart Winter Mode Press and hold Light key until In a regulation cycle, the system To program the purge cycles, first generates water flow through the display shows Fx, with "x"...
-
Page 24: In.xe Error Codes
in.xe spa pack error codes in.xe error codes Error codes indicate a failure condition or a problem which An internal hardware error has been detected in in.xe. needs to be corrected to ensure proper functioning of the system. Both the error code and the water temperature are alternatively displayed. - Page 25 spa pack error codes in.xe The Prr error message indicates a problem with regulation probe. The system is constantly verifying if temperature probe reading is within normal limits. in.xe error codes Water temperature in the spa has reached 108°F. Do not enter spa water! Specifications subjet to change without prior notice...
- Page 26 in.xe corrective actions • Restart the spa pack and start • Restart the spa pack. • Verify if regulation probe • Remove spa skirt and let & stop all pumps and blower. (located above the heater) system cool down, until the •...
-
Page 27: Corrective Actions
corrective actions in.xe • Measure the temperature • Make sure water valves are • Make sure that the pump with a DIGITAL thermometer open and that water level is associated to the heater is and compare its reading with high enough. running. -
Page 28: Gfci Trips
in.xe gfci trips Important connections: Neutral of GFCI must be connected to neutral bus. Neutral from spa must be connected to Ground breaker. wire From From To spa electrical box electrical box To spa Main electrical box GFCI panel Warning! If the GFCI is properly connected but still tripping, unplug all outputs from the spa pack (pumps, blower, heater, ozonator etc). -
Page 29: Accessories Corrective Actions
accessories corrective actions in.xe Keypad doesn’t seem to work! If a keypad doesn’t seem to work: • Verify keypad connections and try spare keypad. • Replace keypad if problem is corrected. Keypad connector • Replace in.xe if problem is not corrected. -
Page 30: How To Replace The Heater
in.xe how to replace the heater Warning! Before starting removal procedure be sure to: • Turn off electric power to the the unit. • Ensure spa water valves are closed (or that the spa is drained). Using a Phillips screwdriver, loosen the six (6) screws that hold the heater connections door in place. - Page 31 how to replace the heater in.xe Use a Phillips screwdriver to loosen the terminals and remove all Ground HL Probe & in.flo Temp Probe electrical heater connections: Neutral Line (N), Line 1 (L1), Line 2 (L2) and Ground Line (Ground). Manually remove the HL probe &...
- Page 32 in.xe how to replace the heater After disconnecting all electrical heater connections, loosen and remove the two (2) heater nuts retaining the heater. Disengage heater from in.xe pack by slightly twisting in such way that the bottom of the heater comes out first and pull the heater away from the pack.
- Page 33 in.xe...
- Page 34 Advanced electronics! Water resistance! Gecko Alliance 450 des Canetons, Quebec City (QC) G2E 5W6 Canada, 1.800.78.GECKO 9225 Stellar Court, Corona, CA 92883 USA , 951.667 .2000 9919-100__ www.geckoalliance.com Rev. 07/07...
