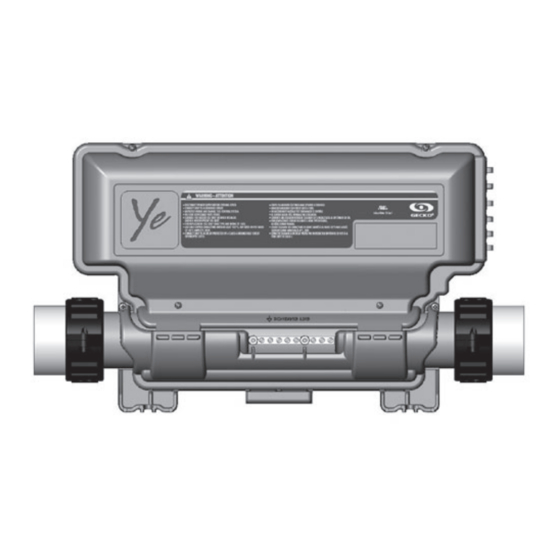

Gecko in.ye-5 Quick Start Card

1- Connect all outputs & keypads
Main power
entry connection
Heater
connections
Heater
2- Connect the main power
2.a- Electrical wiring
L2
N
L1
G
For 240 V (4 wires)
Connect wiring of the electrical
service box GFCI. Neutral wire is
mandatory.
WARNING
All connections must be made by a qualified electrician in accordance with the national electrical code and any state, provincial or local electrical
code in effect at the time of the installation. This product must always be connected to circuit protected by a Ground Fault Circuit Interrupter (GFCI).
Quick Start Card
Bonding lugs Light outputs
(P34 always on, P35 relay controlled)
N
L1
G
For 120 V (*3 wires)
* If connected to a 3 wire system,
any 240 V components will
not work.
in.ye-5
™
whatever the spa, this is your control system
North American version
This Quick Start Card is intended for users of the North American
version of the in.ye.
A0 Direct
A4
A3
A2
A1
C1 - Main keypad connector
CO - Communication links (2 ports)
in.touch, in.stick, Aux keypad in.k112
or in.k120 or Swim Spa com. cable
2.b- Heater & pump/accessories voltage
P9
P10
Heater voltage
Review BROWN common wire
connection to tab:
P9 - 240 V (default)
P10 - 120 V
AMP ports (A0 to A4) for pumps
& accessories. Function varies per
configuration (see step 3).
H L C G
A4
A3 PUMP 1
A2
A1
Pumps & accessories voltage
Review each WHITE common
wire connection to tab:
N - 120 V (default)
L2 - 240 V pump/acc.
