- Page 1 TechBook Y series optimize your customers’ spa experience universal fit immediate boost future expandablity...
-
Page 2: Table Of Contents
Table of contents Warnings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Features �������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Overview - in�ye overview ����������������������������������������������������������������������������������������������������������������������������������������������������� 5 - in�ye dimensions ������������������������������������������������������������������������������������������������������������������������������������������������ 5 - in�yt overview ������������������������������������������������������������������������������������������������������������������������������������������������������ 6 - in�yt dimensions ������������������������������������������������������������������������������������������������������������������������������������������������� 6 Installation - Floor installation procedure with optional guide plate ����������������������������������������������������������������������������������������� 7 - Floor installation procedure without guide plate ��������������������������������������������������������������������������������������������������... -
Page 3: Warnings
Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group� in�ye™, in�yt™, in�keys™, in�touch™, in�k200™, in�k400™, in�k450™, in�k600™, K-19™, K-35™, K-8™, in�k1000™, in�k800™, in�k500™, in�k300™, in�flo™, in�put™, in�seal™, in�link™, in�t�cip™, in�stik™, heat�wav™, Y Series™, and their respective logos are Trademarks of Gecko Alliance Group�... -
Page 4: Introduction

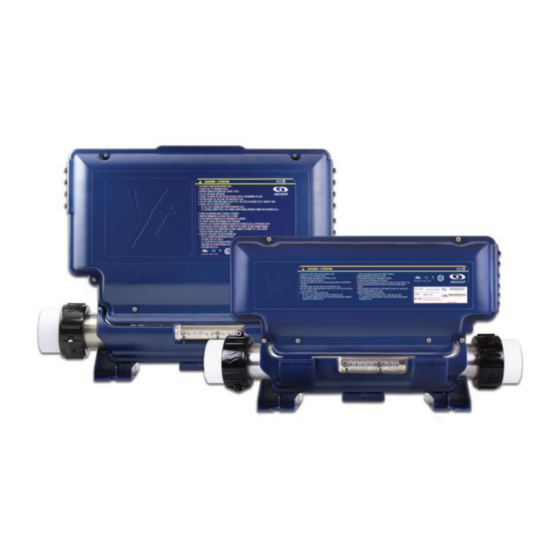

Introduction Y series optimize your customers’ spa experience The Y Series offers the kind of simplicity that makes for a genuine top-of-its-class product� It is the natural choice for anyone who wants an easy-to-understand multi- application solution� You don't have to wonder about compatibility;... -
Page 5: Features
Features The Y Series systems boast a long list of technical features� Each of them contributes to bringing the most advanced solutions available to Y Series equipped spa owners: in.seal in.flo watertight protection dry-fire protection in�seal provides an extra level of protection against in�flo is an all-electronic dry-fire protection that is... -
Page 6: Overview
Overview in.ye overview Light output (12 V DC) RS-485 Industry-standard AMP communication link connectors for outputs Main power entry connection Watertight strain relief system Enough outputs for all your spa needs Main keypad connector Access to heater connections Communications link heat�wav heater Accessible Mounting feet... -
Page 7: In.yt Overview
Overview in.yt overview Light output (12 V DC) Communications link Industry-standard AMP Watertight strain connectors for outputs relief system Enough outputs for all your spa needs Main power entry connection RS-485 communication link Main keypad connector Access to heater connections Communications link heat�wav heater Accessible... -
Page 8: Installation
Installation Important! Read before starting: Please note that countersunk screws should not be used as they can damage the power box support� The heat�wav heating element must be installed in the return circuit of the main pump (pressure side)� Warning! Beware of the application of some products commonly used against corrosion (such as WD-40 family products) as they could damage... -
Page 9: Wall Installation Procedure With Optional Wall Mounting Brackets
Installation Wall installation procedure with optional wall mounting brackets Install mounting brackets The following material Firmly attach, one at a Firmly attach lower on both sides of the rear is recommended: time, upper mounting mounting holes on each of the unit, using screws holes on each side of the side of the pack with 4- # 10 screws of... -
Page 10: Connections
Connections Connection of main keypad Note: always shut power down before connecting an accessory to the in�ye or the in�yt� To connect the keypad, remove the cover, then insert the in�link connector into the appropriate keypad connector (as illustrated)� Route the cable through one of the molded strain relief channels on the bottom right side of the spa pack (as illustrated)�... -
Page 11: Heat.wav Water Heater Connections
Ground in�flo Regulation probe All Y Series systems come with a high performance The heat�wav heater is factory configured for 240 V / 4 kW, but it can be converted to a dedicated 120 V / 1 kW heat�wav heater� With no pressure switch, it features by simply adding a cable connection�... -
Page 12: Connecting High Voltage Accessories: All Models
Connections Connecting high voltage accessories: all models Two options are available with Y Series spa packs for connecting high voltage accessories: 0�250” quick-connect terminals, or AMP connectors conform to industry standards� Connecting high voltage accessories: North American model in.ye For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick connect terminals, straight and non-insulated for all types of connections, including the ground�... -
Page 13: Connecting High Voltage Accessories: North American Model In.yt
Connections Connecting high voltage accessories: North American model in.yt For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick connect terminals, straight and non-insulated for all types of connections, including the ground� Accessories of 120 V or 240 V may be connected to the corresponding terminals of the printed circuit of the in�yt�... -
Page 14: Connecting High Voltage Accessories: European Model In.ye
Connections Connecting high voltage accessories: European model in.ye For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick connect terminals, straight and non-insulated for all types of connections, including the ground� Only 230 V accessories may be connected to the corresponding terminals of the printed circuit of the in�ye�... -
Page 15: Connecting High Voltage Accessories: European Model In.yt
Connections Connecting high voltage accessories: European model in.yt For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick connect terminals, straight and non-insulated for all types of connections, including the ground� Only 230 V accessories may be connected to the corresponding terminals of the printed circuit of the in�yt�... -
Page 16: Amp Output Connectors And Typical Accessories
Connections AMP output connectors and typical accessories in.ye-3 in.ye-5 (FL) Di 1 (120 V) P1 (2-spd) O3/CP O3/CP Output 3 Top AMP connector unavailable P3 (1-speed) - see note Output 2 (Output 4 on CE) Output 2 (Output 4 on CE) Output 5 Output 5 P1 (2-speed) - Page 17 Connections in.yt-12 Blower Di 2 (1-spd) (2-spd) (2-spd) (240 V) Di 1 (120 V) (2-spd) (2-spd) Output 14 Output 11 Output 13 Di 1 (120 V) Di 2 Blower Output 2 Output 12 (Output 4 on CE) Output 7 Output 5 P5 (1-speed) P1 (2-speed) Output 9...
-
Page 18: Completing The Installation
Connections Completing the installation Output cable Strain relief bracket 1/8" (3 mm) max Once all cables of high voltage accessories are routed Replace the cover� Do not over tighten cover screws through the openings provided for this purpose on each (torque to 8 in�... -
Page 19: Wiring
Wiring AMP connector and housing A special PP-1 splitter can be ordered (Part #: 9920-401369) and used to split an output into 2 parallel outputs (i�e� a single output could be used to drive two accessories like an ozonator and a UV generator, or a CP)� Both accessories driven must be of the same operating voltage (120 V or 240 V)�... -
Page 20: Electrical Wiring
Main electrical box GFCI panel ----- Proper wiring of the electrical service box, GFCI and Y Series terminal block is essential! ----- Check your electrical code for local regulations� Only copper wire should be used, never aluminum�... -
Page 21: Electrical Wiring: North Amercian Model In.ye And In.yt
Electrical wiring Electrical wiring: North Amercian model in.ye and in.yt Refer to wiring diagram in the enclosure box lid for more information� 240 V (4 wires) 120 V (*3 wires) * If connected to a 3 wires Note: To convert model to a 120 V system, the white (common) accessory wire must be moved�... -
Page 22: Electrical Wiring: European Model In.ye
Electrical wiring Electrical wiring: European model in.ye Refer to wiring diagram in the enclosure box lid for more information� Warning in�ye�ce models must always be connected to a circuit protected by a Residual-Current Device (RCD) having a rated operating residual-current not exceeding 30 mA� Correct wiring of the electrical service box, RCD, and pack terminal block is essential! Check your electrical code for local regulations�... -
Page 23: Electrical Wiring: European Model In.yt
Electrical wiring Electrical wiring: European model in.yt Refer to wiring diagram in the enclosure box lid for more information� Warning in�yt�ce models must always be connected to a circuit protected by a Residual-Current Device (RCD) having a rated operating residual-current not exceeding 30 mA� Correct wiring of the electrical service box, RCD, and pack terminal block is essential! Check your electrical code for local regulations�... -
Page 24: Controler Power Up
Controler power up Start up of your control system To perform the control system start up, refer to the manual: Start up guide and basic configuration... -
Page 25: Compatible Keypads
Compatible keypads List of compatible keypads for the Y series control system For more information on the compatible keypads for your control system refer to the corresponding Techbook� K-19 main keypad K-35 main keypad in�k200 main keypad in�k600 static main keypad... -
Page 26: Troubleshooting
Troubleshooting Troubleshooting information for your control system You come across a problem with your control system, for the troubleshooting of your control system, refer to the manual: Troubleshooting guide... -
Page 27: Specifications
Specifications Environmental ratings Operating temperature: 32˚F (0°C) to 136˚F (58˚C) Storage temperature: -13°F (-25°C) to 185°F (85°C) Humidity: Up to 85% RH, non condensing Level of waterproofing: IPX5 Mechanical in.ye Weight: Up to 9�7 lbs (4�4 kg) Dimensions (W x H x D): 19�60"... - Page 28 Specifications in.ye & in.yt North American electrical specifications Input rating: 120/240 V nominal (+5/-10 %) 60 Hz, (2 lines required with neutral) 48 A max� or (in.ye-3 only) : 120 V nominal only (+5/-10 %) 60 Hz, (single line with neutral) 16 A max� Heat.wav rating: Voltage : 120 V or 240 V, 60 Hz...
- Page 29 Specifications in.ye & in.yt European electrical specifications Input rating: 230/240 V nominal (+5/-10 %) 50 Hz, (3 lines required with neutral), three-phased system 16 A Max per phase� 230/240 V nominal (+5/-10 %) 50 Hz, (2 lines required with neutral), dual-phase system 20 A Max per phase� 230/240 V nominal (+5/-10 %) 50 Hz, (1 line required with neutral), single-phase system 48 A max�...
- Page 30 9919-101184-D Rev. 08-2016 Gecko Alliance 450 des Canetons, Québec (Qc), G2E 5W6 Canada, 1.800.78.GECKO © Groupe Gecko Alliance inc., 2016 All trademarks or registered trademarks www.geckoalliance.com are the property of their respective owners. Printed in Canada...
