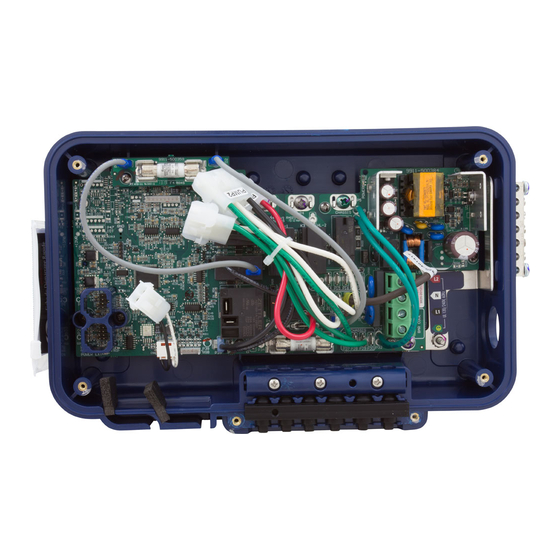

Gecko in.yj-3 Quick Start Card

1- Connect all outputs & keypads
P1 - Heater communication cable
P33 - Light outputs
(12 V DC, 500 mA Max.)
CO - Communication links
in.touch, in.stik, Aux keypad in.k120
C1 - Main keypad
connector
Outputs:
in.yj-3 pack has 3 relay controlled outputs
Out 1: K7-P
Out 2: K6-P
Out 3: K5-P
Direct: P25
2- Connect the main power
2.a- Electrical wiring
120 V (3 wires)
DO NOT REMOVE THE BROWN WIRE.
Insert each wire into the appropriate
socket of the main terminal block
according to the color code indicated
on the sticker. Use a flat screwdriver to
tighten the screws on the terminal.
3- Select spa configuration (if prompt on startup)
1
At first startup the keypad display
will show Lx or LLx, where « x »
representing the config. number. Some
spa packs come with a pre-selected
config. and you may skip this step if
your system automatically starts up .
1
4- Select breaker current
1
98
Press and hold the Program key for
20 seconds until you access the
breaker setting menu.
Note: For the Color keypad series,
select Settings menu, go into Electri-
cal config and choose Input current.
Quick Start Card
in.yj-3
™
North American version
75 L/min (20 GPM) minimum water flow required.
2.b- Pump & accessory voltage
240 V (4 wires)
Remove and discard brown wire and
insert each wire into the appropriate
socket of the main terminal block ac-
cording to the color code indicated on
the sticker. Use a flat screwdriver to
tighten the screws on the terminal.
2
Use the Up/Down key to choose the
new Low level configuration number.
2
The values displayed by the system
correspond to 80% of the maximum
amperage capacity of the GFCI.
For more information, see our
website: www.geckoalliance.com
Neutral: connect White wires from 120V pump
/ acc : P18, P19, P20 or P35
Ground:
connect all Green wires: P27, P28, P29 or P30
This side up
Look at the pump and accessory voltage requirement and make sure to connect
each WHITE common wire to the correct tab on the board: Use any neutral tab for
120 V or use any LINE2 tab for 240 V
WARNING! All connections must be made by a qualified electrician in
accordance with the national electrical code and any state, provincial or local
electrical code in effect at the time of the installation. This product must always be
connected to circuit protected by a Ground Fault Circuit Interrupter (GFCI).
3
Press the Program 2 key to confirm
the selection.
For more information, see our
website: www.geckoalliance.com
Breaker setting for GFCI used.
GFCI b
50 A 40 A
40 A 32 A
30 A 24 A
20 A 16 A
15 A 12 A
(10 to 20A is only to be use with
120V input)
Heater connections
(P3 & P4 Element, P5 Ground)
Bonding lugs:
connect redundant
ground cable to
heater, pumps, etc.
Main power
entry connection
Aperture Ø 2.54 cm (1'')
Line 2: connect White wires from 240V
pump / acc : P14, P15, P16 or P37
Note: To re-enter the low level
1
selection menu, hold the Pump 1
key for 30 seconds.
Note: For the Color keypad series,
select Settings menu, go into
Electrical config and choose the
appropriate Low level.
Note: If the keypad does not have a
2
Program or Filter key, use the Light
key instead.
3
Use the Up/Down key to select the
desired value. Then press the Program
key to confirm the selection.
Note: If the keypad does not have the
Program or Filter key, use the Light key
instead.
