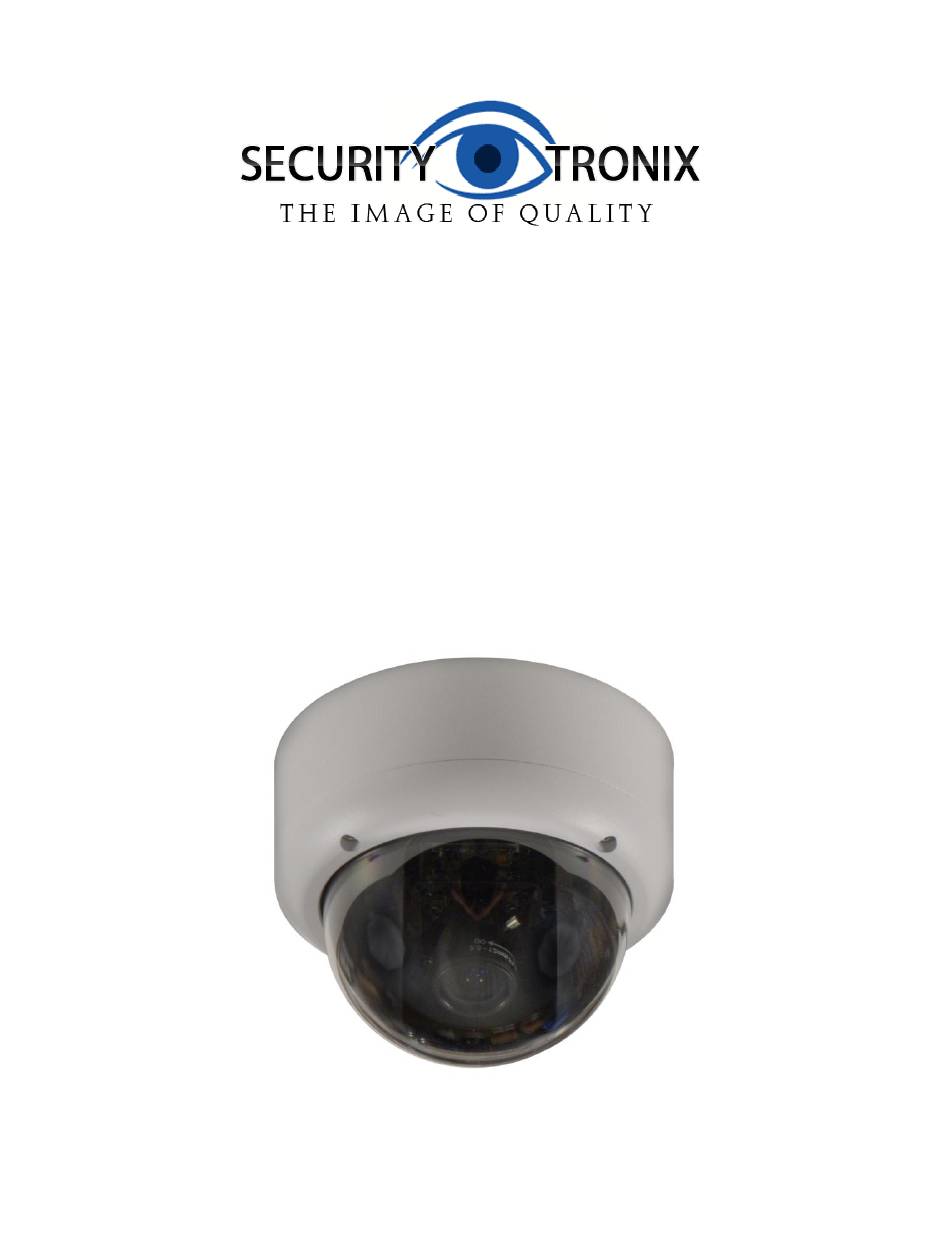

- Page 1 INSTALLATION MANUAL ST-DLI600VPDV2812-B-W Dual Voltage WDR Vandalproof Dome Color Camera v1.0 12/20/11...
-
Page 2: Package Contents
PACKAGE CONTENTS This package contains: One ST-DLI600VPDV2812 vandalproof color camera Mounting hardware One installation manual Note: The ST-DLI600VPDV2812 requires a minimum12VDC 300mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. Note as this is a dual voltage camera a 24V AC power supply such as the ST-PS24VAC can be used. -
Page 3: Unpacking And Handling
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75 coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
- Page 5 v1.0 12/20/11...
-
Page 6: Troubleshooting
6. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
