Summary of Contents for Security Tronix ST-D600IR2812-DSHB

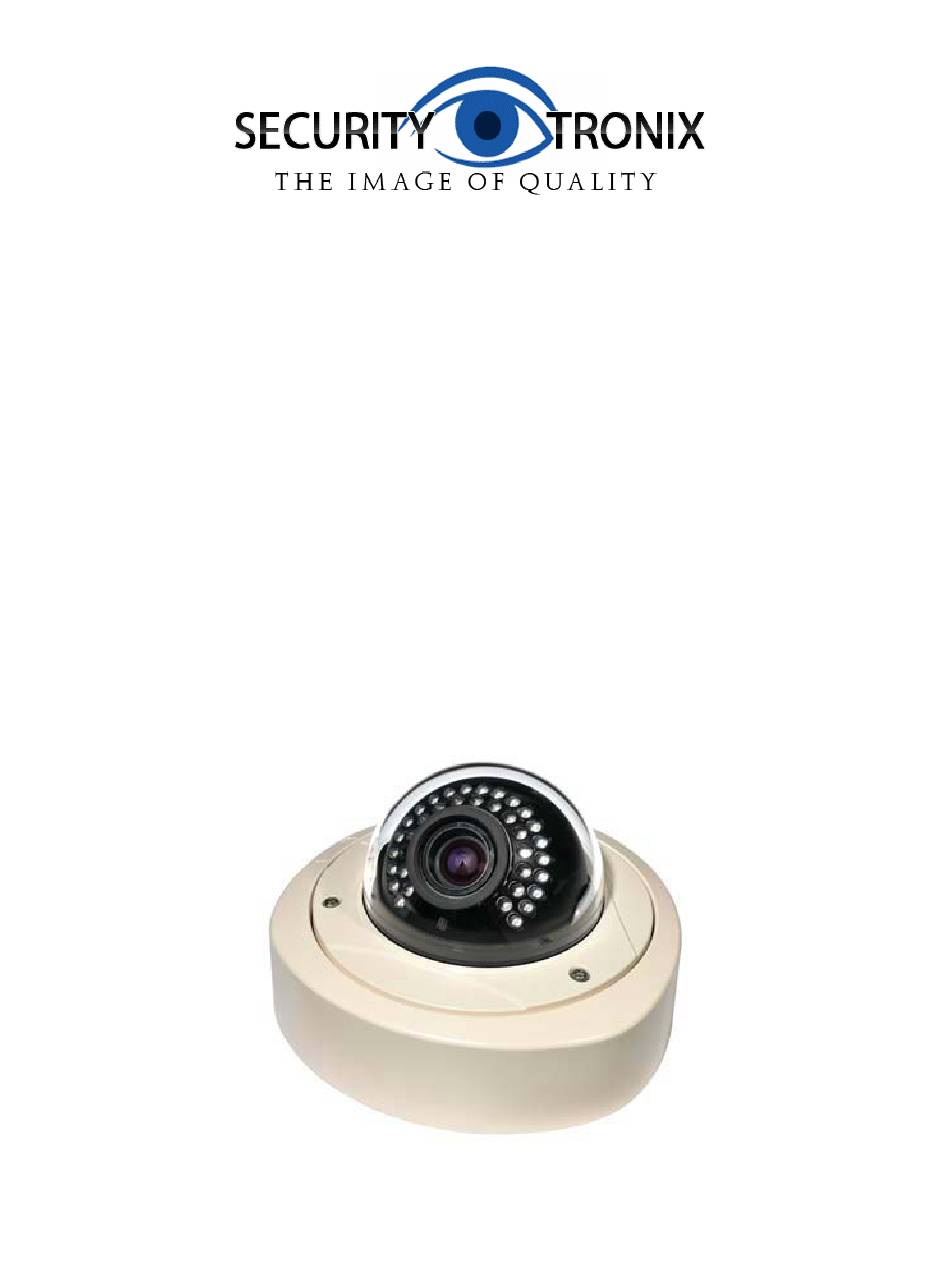

- Page 1 INSTALLATION MANUAL ST-D600IR2812-DSHB Super WDR, 3D DNR True Day & Night Infrared Dome Camera with Heater & Blower v1.0 1/19/11...
-
Page 2: Package Contents
The camera uses a 1/3” SONY Color Vertical Double Density CCD, provides 600TV lines of resolution in color and 700TV lines in B&W. The ST-D600IR2812-DSHB has a 2.8mm – 12mm lens for wide or narrow viewing. The 3 axis mount, built-in RS485 connection and on-screen display make this camera very easy to set up. -
Page 3: Unpacking And Handling
18. IR LED 35 units, 850nm infrared LED; 20,000 hours 19. Beam Spread 36° - 50° 20. Night View Distance Indoor 115’, Outdoor 80’ 21. Operating Temperature -4F° - 140°F 22. Operating Humidity 30% - 80% 23. Power Supply DC12V 500mA, AC24V 680mA (blower & heater on) 24. -
Page 4: Wiring Connections
h. Only qualified installers are allowed to install, test and disassemble the camera. The camera is a low voltage product. If installed outdoors proper safety and lightening grounding are required. 4. WIRING CONNECTIONS DC Power Wiring AC Power Wiring v1.0 1/19/11... - Page 5 To Adjust the Varifocal Lens v1.0 1/19/11...
-
Page 6: Osd Settings
5. OSD SETTINGS Accessing and setting the camera functions are done through the camera’s On Screen Display (OSD) via the included Video & External OSD Control Cable. A menu item may be selected my moving the joystick UP, DOWN, LEFT or RIGHT. The selected item may be entered by taping the joystick. - Page 7 OSD SETTINGS LENS DC, E LC E.SHUTTER AUTO, 1 /50(PAL), 1 /60(NTSC), ...
- Page 8 RED, M AGENTA, Y ELLOW, G RAY> MASK8 OFF ...
-
Page 9: Troubleshooting
Weight levels allow a dark area to become brighter. A lower Weight level is selected for a darker condition while higher levels are for increased brightness. 3D-Digital Noise Reduction (DNR) reduces the background noise in a low luminance environment. Upgraded 3D filtering ensures an even more clear image. Per the menu settings: ...
