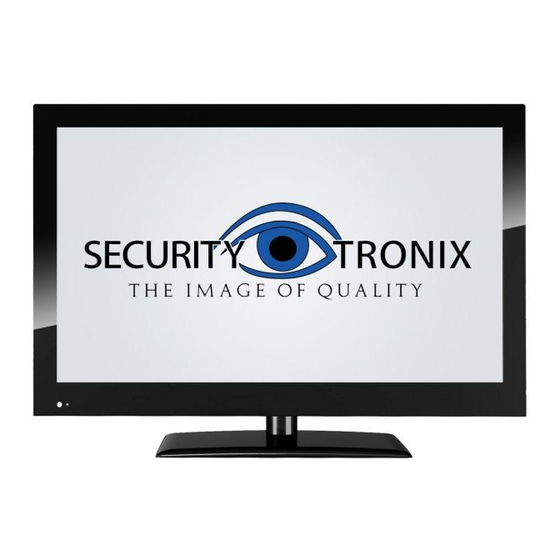

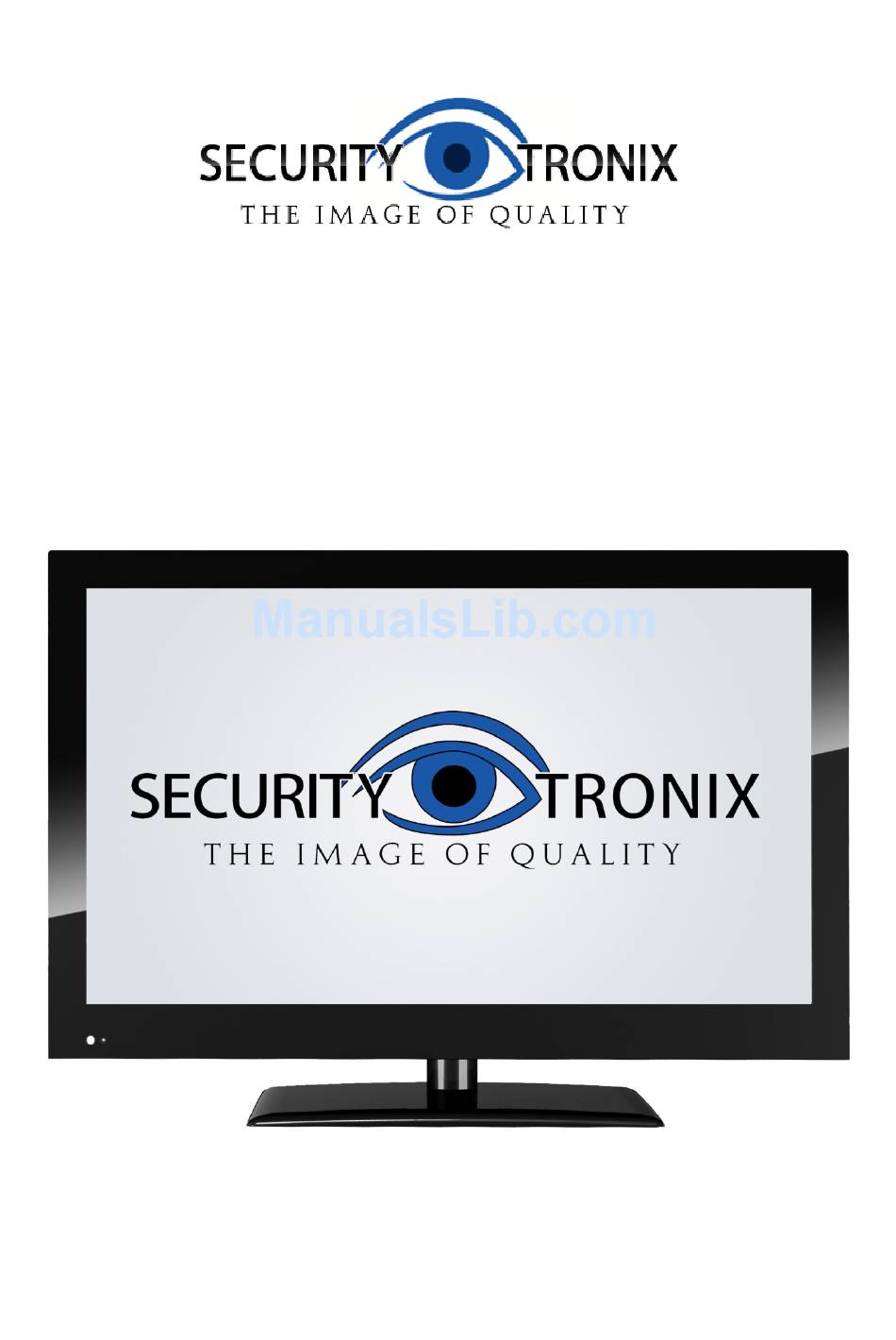

- Page 1 INSTALLATION MANUAL© ST-LCDHD-18.5 Intelligent Mini Dome PTZ Color Camera Copyright North American Cable Equipment, Inc.
-
Page 2: Safety Precautions
PREFACE Thank you for purchasing this LED monitor! This manual will help you use all the extensive features of your new monitor. Make sure the monitor was not damaged in transit. Should the monitor be damaged, do not install it and contact your dealer. Check that you have all the accessories according to the manual. SAFETY PRECAUTIONS Put the monitor on a stable surface. - Page 3 3 FRONT & BACK VIEW, REAR CONNECTIONS_______ Front View 1. TV/AV select 2. Menu key 3. Channel up/down 4. Volume up/down 5. Standby 6. Remote control sensor Back View （The backview is only for your reference） Rear Connection HDMI: HDMI input VGA PC video input VIDEO1/2：...
-
Page 4: Audio Setting
CONFIGURATION 4.1 PC SETTINGS Press <MENU> key. a) Press and enter PC SETTINGS menu. Press key and select CONTRAST, BRIGHTNESS, ▼ ▲ ▼ COLOR TEMP, SCALE, PICTURE OVERSCAN. b) Press key to access and adjust CONTRAST, BRIGHTNESS, COLOR TEMP, SCALE, ◄... -
Page 5: Geometry Setting
4.3 OSD SETTING Press <MENU> key, then press ► a) Press enter OSD SETTINGS menu. Press key to select SLEEP TIMER, ▼, then ▲ ▼ LANGUAGE, H-POSITION, V-POSITION, DURATION, HALFTONE, BLUE SCREEN, IMAGE REVERSE, RESTORE. b) Press ◄ or ► key to access and adjust SLEEP TIMER, LANGUAGE, H-POSITION, V-POSITION, DURATION, HALFTONE, BLUE SCREEN, IMAGE REVERSE, RESTORE. -
Page 6: Remote Control Instructions
REMOTE CONTROL INSTRUCTIONS Remote control instructions 1.STANDBY: Press to turn on/standby the TV set 2.℃: Temperature monitoring chip 3. MUTE: Mutes the audio 4. PICTURE: Set picture mode. 5. FREEZE: Freezes picture. 6. INPUT: Press to display the input source menu. 7. -
Page 7: Remote Controls Setup
REMOTE CONTROLS SETUP a: Open the cover b: Insert batteries. When inserting the batteries, make sure batteries are facing the right direction as per “+”and “-”marks on the batteries and within the battery compartment c: Replace the battery cover 6.1 BATTERY USAGE CAUTION: To prevent battery leakage which may result in bodily injury or damage to the remote, please do as follows: 1. -
Page 8: Specifications
SPECIFICATIONS Screen Size 18.5” Display Type TFT LED Aspect Ratio 16:9 Power Source 110-120V ≤25W TV System PAL / SECAM Video Input Format PAL / NTSC/SECAM Antenna Input Standard antenna socket 75 Ω Audio Output L / R 3W*2 Standard VESA mode VGA Input Format Video:1.0Vp-p, 75Ω;...
