Summary of Contents for Security Tronix ST-IP2FB

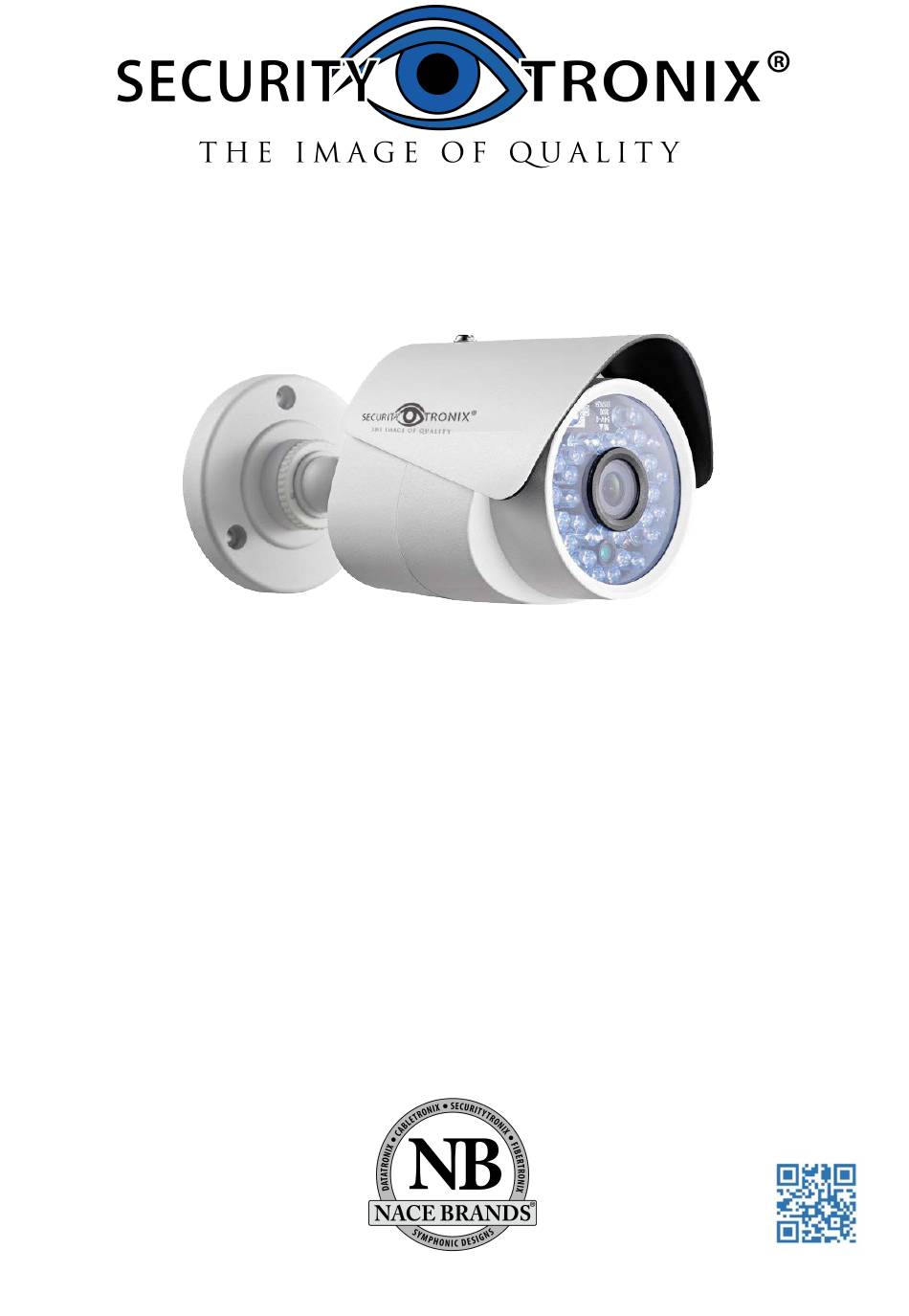

- Page 1 ST-IP2FB QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
- Page 2 ST-IP2FB QUICK START GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
- Page 3 ST-IP2FB QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 ST-IP2FB QUICK START GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
- Page 5 ST-IP2FB QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 6 ST-IP2FB QUICK START GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
- Page 7 ST-IP2FB QUICK START GUIDE ● Do not place the camera in extremely hot, cold (the operating temperature shall be-22F~+140F,or -40°F ~ 140°F if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
- Page 8 ST-IP2FB QUICK START GUIDE Table of Contents 1 Appearance Description ..............8 2 Installation ..................9 3 Setting the Network Camera over the LAN ........12 4 Accessing via Web Browser ............17...
-
Page 9: Appearance Description
ST-IP2FB QUICK START GUIDE 1 Appearance Description Figure 1-1 Bullet Camera Overview Table 1-1 Description Description Sun Shield Back Box Grounding Screw Adjustable Bracket Mounting Base Reset... -
Page 10: Installation
ST-IP2FB QUICK START GUIDE 2 Installation Before you start: Make sure the device in the package is in good condition and all the assembly parts are included. Make sure all the related equipment is powered-off during installation. Check the product specification for details regarding optimum installation environment. - Page 11 ST-IP2FB QUICK START GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing poor image quality. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
- Page 12 ST-IP2FB QUICK START GUIDE Figure 2-2 Secure the Camera to the Ceiling Adjust the Lens. Loosen the adjustable nut on the bracket. Adjust the panning angle [0~360°] of the camera. Adjust the tilting angle [0~90°] of the camera. Rotate 0~360° to adjust azimuth angle of the image.
-
Page 13: Setting The Network Camera Over The Lan
ST-IP2FB QUICK START GUIDE 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP or client software to search and change the IP address of the network camera. - Page 14 ST-IP2FB QUICK START GUIDE Use client software and to list the online devices. Please refer to the user manual of client software for detailed information. 2. Change the IP address and subnet mask to the same subnet as of your PC.
- Page 15 ST-IP2FB QUICK START GUIDE Figure 3-2 Search Online Devices Devices can be searched and displayed in the list 15 seconds after it goes online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually:...
- Page 16 ST-IP2FB QUICK START GUIDE You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
- Page 17 ST-IP2FB QUICK START GUIDE Figure 3-4 Modify Network Parameters 3. Enter the IP address of the IP camera in the address field of the web browser to view the live video. The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.
-
Page 18: Accessing Via Web Browser
ST-IP2FB QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher... - Page 19 ST-IP2FB QUICK START GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of...
- Page 20 ST-IP2FB QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
- Page 21 ST-IP2FB QUICK START GUIDE Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
- Page 22 SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the Fixed Camera.
