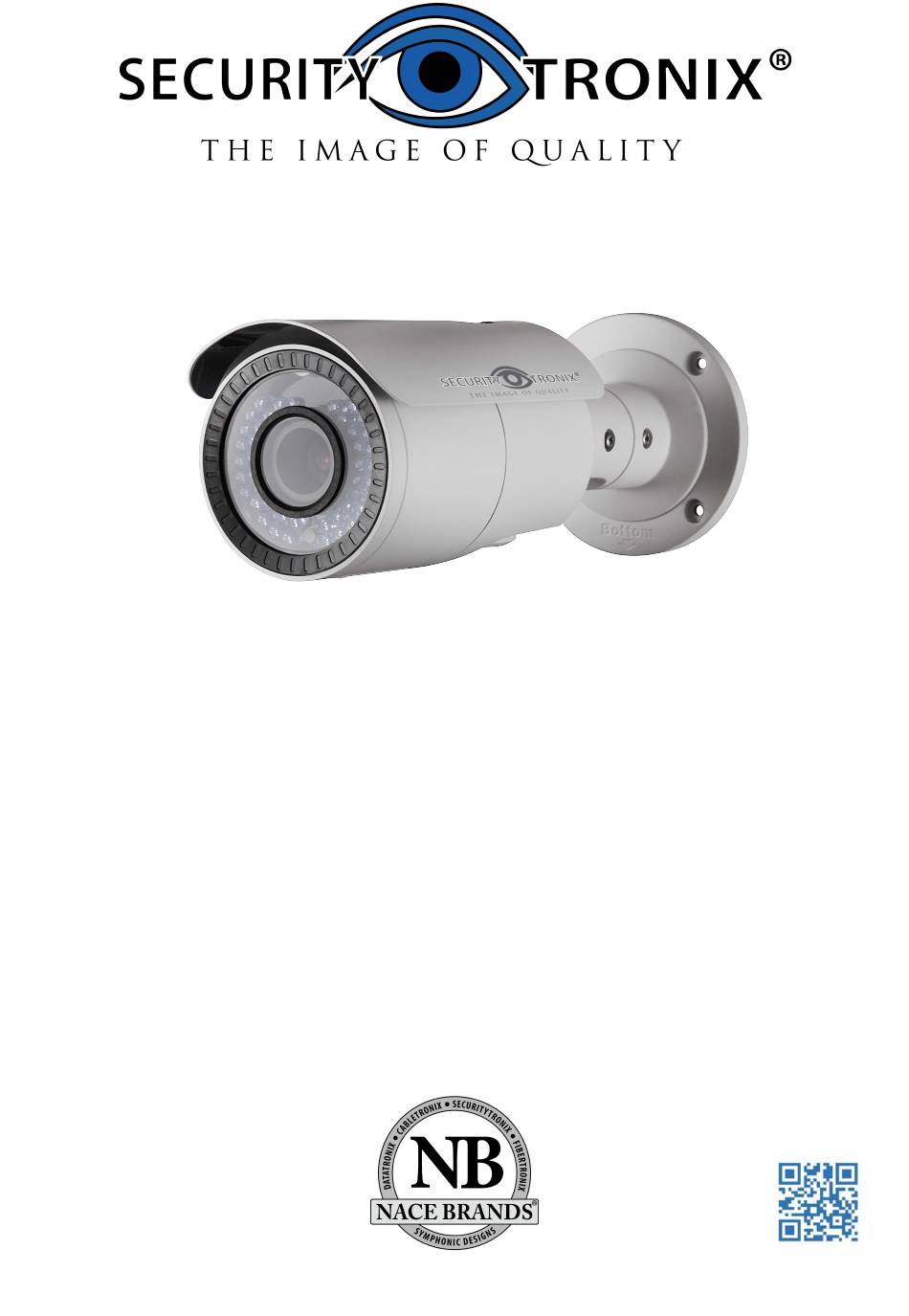

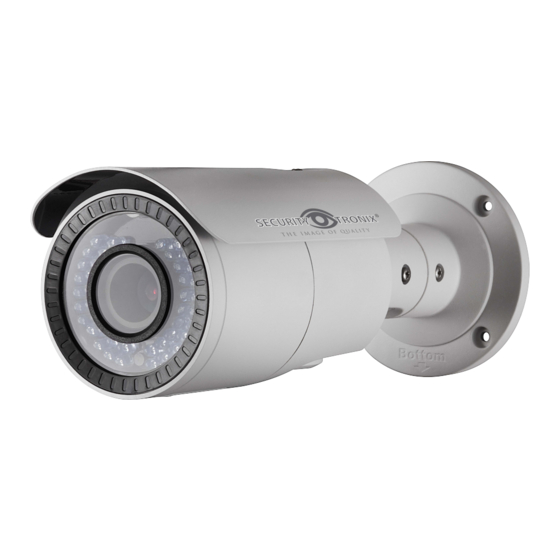

  • Page 1 ST-IP2VFB QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
  • Page 2 ST-IP2VFB QUICK START GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
  • Page 3 ST-IP2VFB QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 ST-IP2VFB QUICK START GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 5 ST-IP2VFB QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 ST-IP2VFB QUICK START GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
  • Page 7 ST-IP2VFB QUICK START GUIDE ● Do not place the camera in extremely hot, cold (the operating temperature shall be-22F~+140F,or -40°F ~ 140°F if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.

  • Page 8: Table Of Contents

    ST-IP2VFB QUICK START GUIDE Table of Contents 1 Appearance Description ..............8 2 Installation ..................11 2.1 SD Card Installation ............12 2.2 Mounting ..............14 2.2.1 Wall Mounting ............ 14 2.2.2 Wall Mounting with a Junction Box ....16 2.2.3 Wall Mounting with a Gang Box ......

  • Page 9: Appearance Description

    ST-IP2VFB QUICK START GUIDE 1 Appearance Description The overview of the network bullet camera is shown below. Figure 1-1 Overview Table 1-1 Description Description Sun Shield Front Cover Zoom and Focus Lever...
  • Page 10 ST-IP2VFB QUICK START GUIDE Description IR LED Lens Air Vent Video Output Interface Integrated Bracket Reset Button SD Card Slot Power Interface Network Interface  Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
  • Page 11 ST-IP2VFB QUICK START GUIDE Audio Cable Alarm Cables Figure 1-2 Audio and Alarm Interfaces...

  • Page 12: Installation

    ST-IP2VFB QUICK START GUIDE 2 Installation Before you start:  Make sure the device in the package is in good condition and all the assembly parts are included.  Make sure all the related equipment is powered off during the installation.

  • Page 13: Sd Card Installation

    ST-IP2VFB QUICK START GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing poor image quality. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
  • Page 14 ST-IP2VFB QUICK START GUIDE 4. Insert the SD card to the SD card slot. 5. Rotate the front cover clockwise back to the camera and install the sun shield according to the arrow direction as shown in Figure 2-2(right). Figure 2-2 Install the SD Card 6.

  • Page 15: Mounting

    ST-IP2VFB QUICK START GUIDE Rotating Label Figure 2-3 Assemble the Camera To ensure a water-tight installation, please align the rotating label on the front cover with that on the camera when you rotate the front cover clockwise. Refer to Figure 2-3(right).
  • Page 16 ST-IP2VFB QUICK START GUIDE 2. Drill screw holes in the wall according to the number one holes of the drill template. Refer to the Figure 2-4. Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base Figure 2-4 Drilling Holes in the Wall 3.

  • Page 17: Wall Mounting With A Junction Box

    ST-IP2VFB QUICK START GUIDE Figure 2-5 Secure the Camera 2.2.2 Wall Mounting with a Junction Box Before you start: For mounting with a junction box, you have to purchase a junction box separately.
  • Page 18 ST-IP2VFB QUICK START GUIDE Steps: 1. Attach the drill template (supplied) to the wall where the camera is to be mounted. 2. Drill holes in the wall according to the number two holes of the drill template. Refer to the Figure 2-4.

  • Page 19: Wall Mounting With A Gang Box

    ST-IP2VFB QUICK START GUIDE Junction Box Safety Rope Figure 2-6 Secure the Camera 2.2.3 Wall Mounting with a Gang Box Before you start: For the gang box mount , you have to purchase a gang box separately. Steps: 1. Secure the camera attachment to a gang box with screws.

  • Page 20: View Angle Adjusting

    ST-IP2VFB QUICK START GUIDE Gang Box Camera Attachment Figure 2-7 Secure the Camera 2.3 View Angle Adjusting Purpose: 3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum camera rotation and placement. You can use this function to get the desired view angle.

  • Page 21: Zoom And Focus Adjusting

    ST-IP2VFB QUICK START GUIDE 1. Loosen the lock screw-2. 2. Adjust the tilting position of the camera. The adjusting range is from 0 degrees to 90 degrees. 3. Tighten the lock screw-2. Rotation Adjustment Steps: 1. Loosen the lock screw-3.
  • Page 22 ST-IP2VFB QUICK START GUIDE Steps: 1. Disassemble the camera. Refer to section 2.1. 2. View the camera image using the monitor. 3. Loosen the zoom lever and move the lever between T(Tele) and W(Wide) to obtain the appropriate angle of view.

  • Page 23: Setting The Network Camera Over The Lan

    ST-IP2VFB QUICK START GUIDE 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet as your PC. Then, install the SADP or client software to search and change the IP of network camera.
  • Page 24 ST-IP2VFB QUICK START GUIDE  Use client software to list the online devices. Please refer to the user manual of client software for detailed information. Change the IP address and subnet mask to the same subnet of your PC. Refer to the following introductions to set IP address with SADP...
  • Page 25 ST-IP2VFB QUICK START GUIDE Figure 3-2 Search Online Devices Devices can be searched and displayed in the list 15 seconds after it goes online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually:...
  • Page 26 ST-IP2VFB QUICK START GUIDE You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
  • Page 27 ST-IP2VFB QUICK START GUIDE Figure 3-4 Modify Network Parameters 3. Enter the IP address of the network camera in the address field of the web browser to view the live video. The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.

  • Page 28: Accessing Via Web Browser

    ST-IP2VFB QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 29 ST-IP2VFB QUICK START GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of...
  • Page 30 ST-IP2VFB QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in(1)
  • Page 31 ST-IP2VFB QUICK START GUIDE Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
  • Page 32 SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the Fixed Camera.
