Summary of Contents for Infinity iB-2R
- Page 1 MANUAL ENGLISH Infinity iB-2R Ordercode: 41531 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Overview ..................................8 Backside ..................................8 Installation ................................... 8 Set Up and Operation ............................... 8 Control Modes ................................8 One Infinity (Built-in Programs)..........................8 Multiple Infinitys (DMX Control) ..........................9 Fixture Linking ................................10 Data Cabling ................................10 Control Panel ................................11 Control Mode ................................11 DMX Addressing ................................11... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity iB-2R LED Spot with Powercon powercable 0,9m ● 2 brackets for truss mounting ●... - Page 4 For replacement use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Ordercode: 41531... - Page 6 Infinity iB-2R Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41531...
-
Page 7: Connection With The Mains
Infinity iB-2R Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE... -
Page 8: Description Of The Device

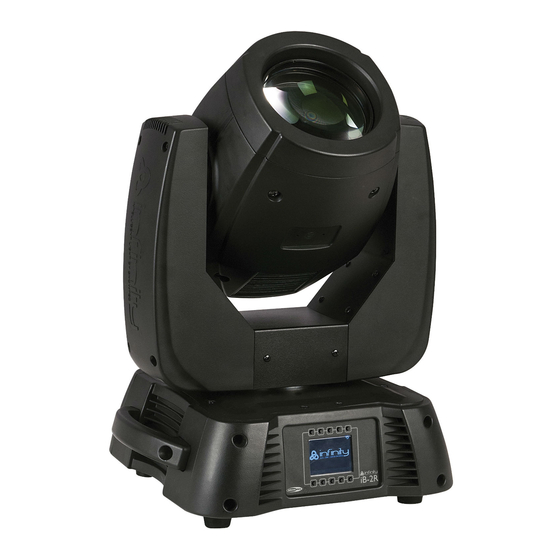

Infinity iB-2R Description of the device Features The Infinity iB-2R is a moving-head with high output and great effects. ● Beam effect ● High torque motors ● Ultra-fast movements ● Quick-lock screws on the covers ● Onboard: Battery powered full color display including gravity sensor ●... -
Page 9: Overview
NOTE: Knowledge of DMX is required to fully utilize this unit. Installation Remove all packing materials from the Infinity iB-2R. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Multiple Infinitys (Dmx Control)
Infinity iB-2R Multiple Infinitys (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Fixture Linking
Infinity iB-2R Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+19=20 (020); the DMX address of the third Infinity should be 20+19=39 (039), etc. -
Page 13: Menu Overview
Infinity iB-2R Menu Overview Ordercode: 41531... -
Page 14: Main Menu Options
Infinity iB-2R Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 15: Edit Mode
Infinity iB-2R 2. Edit Mode With this menu you can set your desired operation mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 3 different modes. Use the Up / Down buttons to select the required mode:... - Page 16 Infinity iB-2R 03) Once you have selected the desired mode, press the buttons to change the value from NO to YES. 04) A couple of menus have different options to the regular YES/NO function: Pan Angle: 540°, 360°, 180° Tilt Angle: 270°, 180°, 90°...
-
Page 17: Built-In Programs
Infinity iB-2R 07) In Lamp Setting menu you can set 8 options: Lamp Setting On/Off [No/Yes] State/Power On [No/Yes] Off via DMX [No/Yes] Off if DMX on [No/Yes] Off if DMX off [No/Yes] Ignition Delay [000-255] Low Power Delay [000-255]... -
Page 18: Test Menu
Infinity iB-2R 5. Test Menu With this menu you can set your desired test mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different modes. Press the Up / Down buttons to select the required mode:... -
Page 19: Information Menu
Infinity iB-2R 6. Information Menu With this menu you can see several pieces of information. 01) Press the button and select 02) Press the button, to confirm. 03) You can view 8 settings. Ordercode: 41531... -
Page 20: Dmx Channels
Infinity iB-2R DMX Channels 19 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 21 Infinity iB-2R Channel 9 – Color wheel Linear color change following the movement of the slider. Between 128-189 and 194-255, the color wheel rotates continuously the so-called “Rainbow” effect. Open / White 9-12 Deep Yellow/Orange 13-16 Turquoise 17-20 Green 21-24...
- Page 22 Infinity iB-2R 112-115 Gobo Shake 14 from slow to fast 116-119 Gobo Shake 15 from slow to fast 120-123 Gobo Shake 16 from slow to fast 124-127 Gobo Shake 17 from slow to fast 128-189 Counterclockwise rotation (CCW) rainbow effect from fast to slow...
- Page 23 Infinity iB-2R 240-247 XY Smoothing model open 248-255 XY Smoothing model to shut down Channel 18 – Built-in Programs CH6 and CH8 must be open No Function 8-15 Built-in Program 1 16-23 Built-in Program 2 24-31 Built-in Program 3 32-39...
-
Page 24: Channels (Advanced)
Infinity iB-2R 15 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 25 Infinity iB-2R Channel 9 – Static gobo wheel + Gobo Shake Open / White Gobo 1 Gobo 2 10-12 Gobo 3 13-15 Gobo 4 16-18 Gobo 5 19-21 Gobo 6 22-24 Gobo 7 25-27 Gobo 8 28-30 Gobo 9 31-33...
- Page 26 Infinity iB-2R Channel 13 – Prism 2 rotation 0-127 Prism-indexing 128-189 Counterclockwise rotation (CCW) from fast to slow 190-193 Stop 194-255 Clockwise rotation (CW) from slow to fast Channel 14 – Focus 0-255 Continuous adjustment from far to near Channel 15 – Channel Functions...
-
Page 27: Channel Settings
Fig. 05 Maintenance The Infinity iB-2R requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. -
Page 28: Battery Replacement
(must be carried out by a qualified technician!) 01) Unplug the unit from the electric power source. 02) Remove the 6 screws on the front side of the Infinity. 03) Gently pull the front cover from the device. 04) Disconnect the plug from the PCB. -
Page 29: Troubleshooting
05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 30 Infinity iB-2R Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures do not cables are plugged in. function at all. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 31: Product Specification
Infinity iB-2R Product Specification Model: Infinity iB-2R Input Voltage: 100-240 VAC Continuous Power: 265W max. at full output Fuse: F5A / 250V Dimensions: 303 x 366 x 475 mm (LxWxH) Weight: 17,78 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) - Page 32 Infinity iB-2R Dimensions Ordercode: 41531...
- Page 33 Infinity iB-2R Notes Ordercode: 41531...
- Page 34 Infinity iB-2R Ordercode: 41531...
- Page 35 Infinity iB-2R Ordercode: 41531...
- Page 36 ©2016 Infinity...
