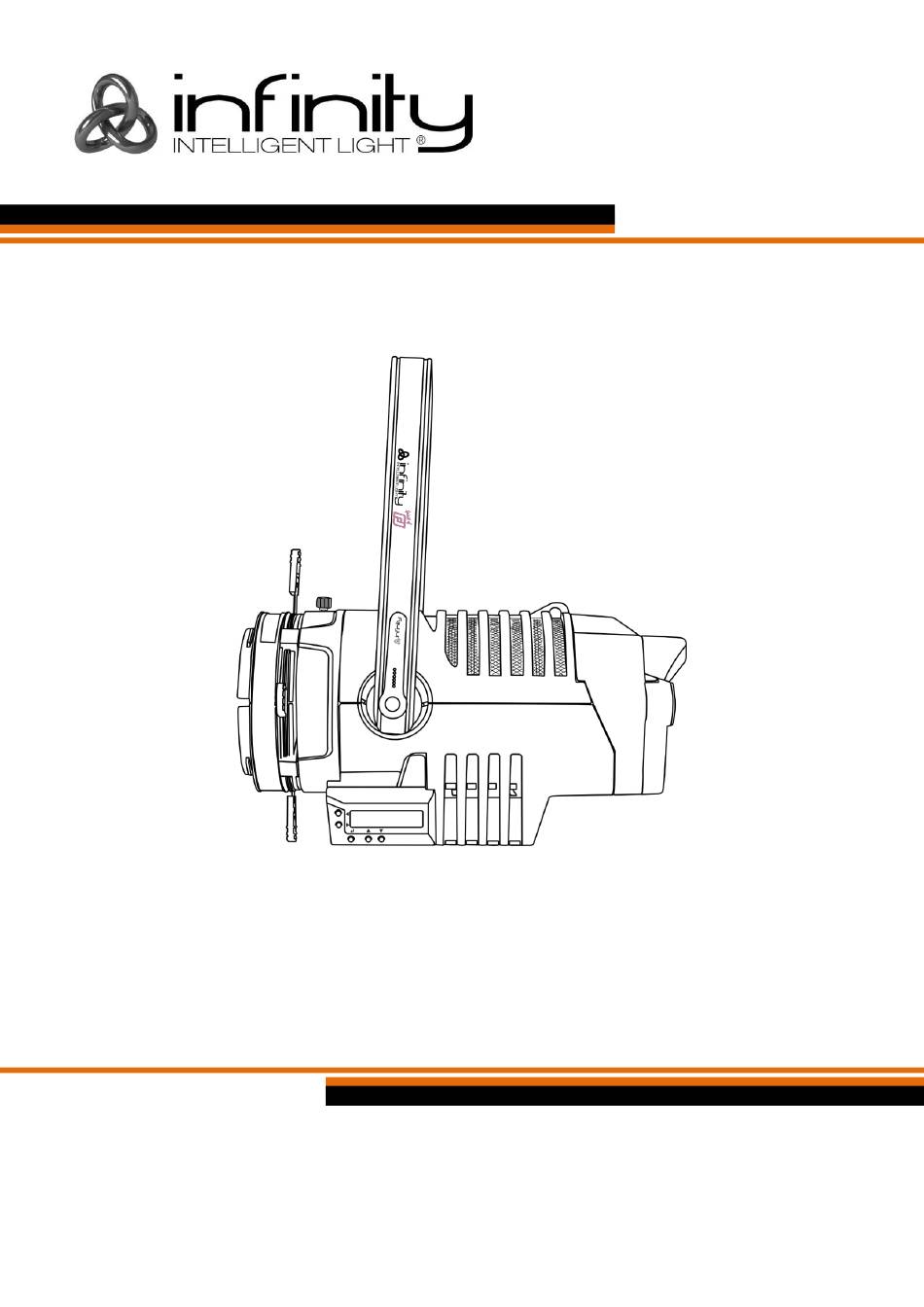

MANUAL
ENGLISH

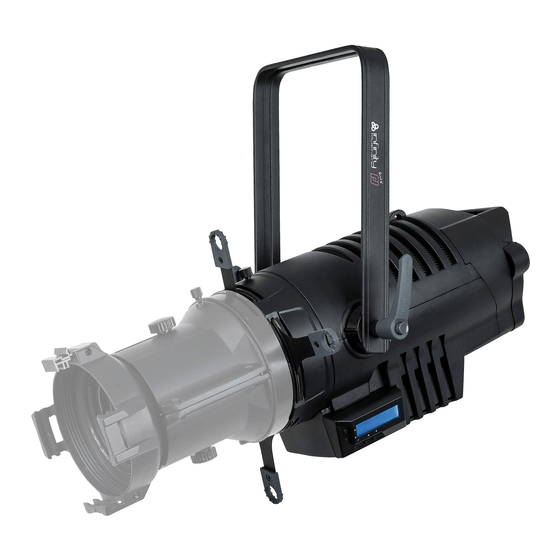

Infinity TS-260C7 Profile Engine V2
Ordercode: 200010
Firmware Version 1.04
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-260C7 Profile Engine V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Infinity TS-260C7 Profile Engine V2

Summary of Contents for Infinity TS-260C7 Profile Engine V2

  • Page 1 MANUAL ENGLISH Infinity TS-260C7 Profile Engine V2 Ordercode: 200010 Firmware Version 1.04 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    TS-260C7 Profile Engine Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Overview ..................................9 Side ....................................10 Backside ..................................11 Installation ..................................11...
  • Page 3 TS-260C7 Profile Engine 10 Channels (RGB Pro Mode) ..........................33 10 Channels (HSI Pro Mode) ..........................36 20 Channels (RAW Mode) ............................39 Maintenance ..................................43 Cleaning the Field Lens .............................43 Troubleshooting ................................44 No Light ..................................44 No Response to DMX..............................44 Product Specifications ..............................46 Dimensions ..................................47 Notes ....................................48 Ordercode: 200010...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity TS-260C7 Profile Engine ● Neutrik PowerCON to Schuko power cable (1,4 m) ●...
  • Page 5 TS-260C7 Profile Engine Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

  • Page 6: Operating Determinations

    ● If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Infinity dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended.

  • Page 7: Connection With The Mains

    TS-260C7 Profile Engine The Infinity Profile Engine TS-260C7 can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug.

  • Page 8: Return Procedure

    TS-260C7 Profile Engine Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the...

  • Page 9: Description Of The Device

    TS-260C7 Profile Engine Description of the device Features The Infinity TS-260C7 Profile Engine is a high resolution theatrical luminaire with high output. With the 7- color LED array it has an extended color gamut compared with traditional RGBW LED arrays. ●...

  • Page 10: Overview

    TS-260C7 Profile Engine Overview Fig. 01 01) 260W Lumiled 7-color LED 02) Shutter assembly Ordercode: 200010...

  • Page 11: Side

    TS-260C7 Profile Engine Side Fig. 02 03) Accessory slot 04) Gobo holder slot 05) Shutter assembly fixation control 06) Mounting bracket 07) Safety eye 08) Shutter 09) Control buttons + LC-display 10) Adjustment handle 11) Rear handle Ordercode: 200010...

  • Page 12: Backside

    17) Neutrik PowerCON OUT (Grey) Installation Remove all packing materials from the Infinity TS-260C7 Profile Engine. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 13: Installing Shutter Assembly

    TS-260C7 Profile Engine Installing shutter assembly 01) Loosen the screw at the top of the device by turning it counterclockwise. 02) Insert the included shutter assembly. 03) Rotate the included shutter assembly by 45 degrees clockwise or counterclockwise. 04) Tighten the screw by turning it clockwise. Fig.

  • Page 14: Using The Fixed Lens Tube

    TS-260C7 Profile Engine Using the fixed lens tube 01) Loosen the beam focus control at the top of the lens tube counterclockwise. 02) Slide the lens tube forwards or backwards to achieve the desired beam. 03) Tighten the screw by turning it clockwise. Fig.

  • Page 15: Using The Zoom Lens Tube

    TS-260C7 Profile Engine Using the zoom lens tube 01) Pull the zoom slider out of the lock position. 02) Move the zoom slider forwards or backwards to zoom. 03) Turn the focus control to focus the beam. Fig. 08 Adjusting shutters 01) Use the 4 shutters to adjust the desired beam.

  • Page 16: Installing Gobo Holder

    TS-260C7 Profile Engine Installing gobo holder 01) Insert the B-size gobo (Ø 86mm, image size 65mm) into the included gobo holder. 02) Fit the gobo with the 4 pins to the gobo holder. 03) Insert the included gobo holder into the gobo holder slot. 04) Please make sure the gobo holder is inserted correctly.

  • Page 17: Control Modes

    TS-260C7 Profile Engine Control Modes There are 2 modes: ● Manual control ● DMX512 (1CH, 5CH, 6CH, 10CH, 10CH, 10CH or 20CH) One Profile Engine (Manual control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141).

  • Page 18: Fixture Linking

    DAP DMX adapter: 3-pin > 5-pin. Ordercode FLA30. ● DAP DMX Terminator 3-pin. Ordercode FLA42. ● DAP DMX Terminator 5-pin. Ordercode FLA43. The Infinity TS-260C7 Profile Engine can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 200010...

  • Page 19: Control Panel

    TS-260C7 Profile Engine Control Panel LC-display Home button Return button Enter button Up button Down button Fig. 13 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the...

  • Page 20: Menu Overview

    TS-260C7 Profile Engine Menu Overview Ordercode: 200010...
  • Page 21 TS-260C7 Profile Engine Ordercode: 200010...

  • Page 22: Activate Focus Mode

    TS-260C7 Profile Engine The Infinity TS-260C7 will show the Info screen at start-up ! Press the Home button (B) to switch between the Info screen and the current menu mode. Press the Return button (C) to go back to the main menu.

  • Page 23: Dmx Configuration

    TS-260C7 Profile Engine 1. DMX Configuration In this menu you can choose a DMX configuration. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 6 channel modes 04) Press the ENTER button to confirm.

  • Page 24: Color Wheel

    TS-260C7 Profile Engine 3.3 Color Wheel 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu. 03) Press the UP/DOWN buttons to choose one of the 64 preset colors and white: 04) Press the ENTER button to confirm. Ordercode: 200010...

  • Page 25: Dimmer Curves

    TS-260C7 Profile Engine 4. Dimmer Curves In this menu you can choose a dimmer curve. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose from the 4 available options: 04) Press the ENTER button to confirm.

  • Page 26: Cct Mode

    TS-260C7 Profile Engine 6. CCT Mode In this menu you can choose between different outputs in the CCT mode. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose between 04) If you choose , the color rendering index is maximized at the expense of the output.

  • Page 27: Dmx Lost Mode

    TS-260C7 Profile Engine 8. DMX Lost Mode In this menu you can determine the behaviour of the Profile Engine in case of a DMX failure. The display will blink (only if Display set to “Auto Off”). 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.

  • Page 28: Display

    TS-260C7 Profile Engine 12. Display In this menu you can set the backlight of the display. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 3 options: The display will turn off in 60 seconds.

  • Page 29: Dmx Channels Quickguide

    TS-260C7 Profile Engine DMX Channels Quickguide Infinity TS-260C7 Dimmer Basic Thungsten RGB Pro HSI Pro Mode Mode Mode Mode Mode Mode 7Color Profile (1CH) (5CH) (6CH) (10CH) (10CH) (20CH) Dimmer Coarse Dimmer Fine Strobe Color Wheel CW Crossfade Hue Coarse...

  • Page 30: Dmx Channels

    TS-260C7 Profile Engine DMX Channels 1 Channel (Basic) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% 5 Channels (Basic) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Shutter/Strobe Closed 6-249 Strobe frequency, from low to high frequency...
  • Page 31 TS-260C7 Profile Engine 68-70 Light blue Lee 118 71-73 Dark blue Lee 119 74-76 Deep blue Lee 120 77-79 Lee green Lee 121 80-82 Fern green Lee 122 83-85 Dark green Lee 124 86-88 Bright pink Lee 128 89-91 Medium blue Lee 132 92-94 Golden amber...

  • Page 32: Channels (Thungsten)

    TS-260C7 Profile Engine 252-253 25,3 sec. crossfade 253-254 25,4 sec. crossfade 254-255 25,5 sec. crossfade Note: The color wheel crossfade time is the time which needs to pass before the device fades from color 1 to color 2. 6 Channels (Thungsten) Channel 1 –...
  • Page 33 TS-260C7 Profile Engine 110-112 Bright blue Lee 141 113-115 Apricot Lee 147 116-118 Bright rose Lee 148 119-121 Pale gold Lee 152 122-124 Pink Lee 157 125-127 Deep orange Lee 158 128-130 Bastard amber Lee 162 131-133 Flame red Lee 164 134-136 Daylight blue Lee 165...

  • Page 34: Channels (Rgb Pro Mode)

    TS-260C7 Profile Engine 80-87 Simulation source: Tungsten 750W 88-95 Simulation source: Tungsten 1000W 96-103 Simulation source: Tungsten 2000W 104-111 PWM speed: 1,1 kHz 112-119 PWM speed: 1,2 kHz 120-127 PWM speed: 1,3 kHz 128-135 PWM speed: 1,4 kHz 136-143 PWM speed: 1,5 kHz 144-151 PWM speed: 1,6 kHz 152-159...
  • Page 35 TS-260C7 Profile Engine Channel 6 – Green Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255 0-255 Gradual adjustment Green from 0-100% Channel 7 – Blue Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255 0-255 Gradual adjustment Blue from 0-100% Channel 8 –...
  • Page 36 TS-260C7 Profile Engine 149-151 Dark lavender Lee 180 152-154 Congo blue Lee 181 155-157 Alice blue Lee 197 158-160 Full CT blue Lee 201 161-163 Half CT blue Lee 202 164-166 Quarter CT Blue Lee 203 167-169 Full CT orange Lee 204 170-172 Half CT orange...

  • Page 37: Channels (Hsi Pro Mode)

    TS-260C7 Profile Engine 184-191 Fan mode: full 192-199 Graphic display: auto off 200-207 Graphic display: on 208-215 CCT mode: High CRI 216-223 CCT mode: High Output 224-249 No function Reset all 251-255 No function 10 Channels (HSI Pro Mode) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 –...
  • Page 38 TS-260C7 Profile Engine 17-19 Lavender Lee 058 20-22 Sky blue Lee 068 23-25 Just blue Lee 079 26-28 Lime green Lee 088 29-31 Dark yellow green Lee 090 32-34 Spring green Lee 100 35-37 Yellow Lee 101 38-40 Light amber Lee 102 41-43 Straw...
  • Page 39 TS-260C7 Profile Engine 188-190 Follies pink Lee 328 191-193 Lighter blue Lee 353 194-196 Millenium gold Lee 778 197-199 Vanity fair Lee 793 200-255 Reserved Channel 9 – Color wheel crossfade time wheel (CH8 must be set between 7-255 0,1 sec. crossfade 0,2 sec.

  • Page 40: Channels (Raw Mode)

    TS-260C7 Profile Engine 20 Channels (RAW Mode) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Dimmer Fine 0-255 Dimmer fine intensity, from dark to brightest 0-100% Channel 3 – Shutter/Strobe Closed 6-249 Strobe frequency, from low to high frequency 250-255 Open...
  • Page 41 TS-260C7 Profile Engine Channel 17 – Deep Blue Dimmer Fine (CH2 must be set between 1-255, CH3 between 6-255 0-255 Gradual adjustment Deep Blue fine from 0-100% Channel 18 – Color wheel (CH1 must be set between 1-255 and CH3 between 6-255 No function 8-10 Medium bastard amber...
  • Page 42 TS-260C7 Profile Engine 161-163 Half CT blue Lee 202 164-166 Quarter CT Blue Lee 203 167-169 Full CT orange Lee 204 170-172 Half CT orange Lee 205 173-175 Quarter CT orange Lee 206 176-178 Filter minus green Lee 247 179-181 Half minus green Lee 248 182-184...
  • Page 43 TS-260C7 Profile Engine 216-223 CCT mode: High Output 224-249 No function Reset all 251-255 No function Ordercode: 200010...

  • Page 44: Maintenance

    TS-260C7 Profile Engine Maintenance The Showtec Infinity TS-260C7 Profile Engine requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. The front glass panel will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light output very quickly.

  • Page 45: Troubleshooting

    02) Power supply. Check that the unit is plugged into an appropriate power supply. 03) The LEDs. Return the Profile Engine to your Infinity dealer. 04) The internal fuse. Return the Profile Engine to your Infinity dealer. 05) If all of the above appears to be O.K., plug the unit in again.
  • Page 46 Check if power is switched on and fixtures do not cables are plugged in function at all Internal fuse blown ● Return the Infinity to your Infinity dealer Fixtures reset The controller is not connected ● Connect controller correctly, but all 3-pin/5-pin XLR Out of the ●...

  • Page 47: Product Specifications

    TS-260C7 Profile Engine Product Specifications Model: Infinity TS-260C7 Profile Engine Input Voltage: 100-240V AC, 50/60Hz Power consumption: 260W Power factor: 0,96 DMX linking: 30pcs Dimensions: 468 x 323 x 279 mm (LxWxH) (incl. bracket) Weight: 8,5 kg Operating and Programming:...

  • Page 48: Dimensions

    TS-260C7 Profile Engine Dimensions Ordercode: 200010...

  • Page 49: Notes

    TS-260C7 Profile Engine Notes Ordercode: 200010...
  • Page 50 TS-260C7 Profile Engine Ordercode: 200010...
  • Page 51 TS-260C7 Profile Engine Ordercode: 200010...
  • Page 52 ©2019 Infinity...
