MANUAL
ENGLISH
Infinity iW-1941 RDM
V1
Ordercode: 41529
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading

Related Manuals for Infinity Infinity iW-1941RDM

Summary of Contents for Infinity Infinity iW-1941RDM

  • Page 1 MANUAL ENGLISH Infinity iW-1941 RDM Ordercode: 41529 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Lock/Unlock the Moving Head ..........................11 Set Up and Operation ..............................11 Control Modes ................................12 One Infinity (Built-in Programs)..........................12 Multiple Infinity’s (Master/Slave control) ......................12 Multiple Infinity’s (DMX Control) ..........................13 Multiple Infinitys (ArtNet Control) ..........................14 Connecting to a Network ............................15 ArtNet Settings ................................15 How to Make a Data Cable .............................16...
  • Page 3 Infinity iW-1941 RDM Troubleshooting ................................49 No Light ..................................49 No Response to DMX..............................49 Product Specifications ..............................51 Dimensions ..................................52 Notes ....................................53 Ordercode: 41529...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Infinity iW-1941 RDM with PowerCON cable (1,4 m)  2 brackets for truss mounting ...
  • Page 5 For replacement use fuses of same type and rating only.  The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.

  • Page 6: Operating Determinations

    When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 41529...

  • Page 7: Connection With The Mains

    Infinity iW-1941 RDM Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.

  • Page 8: Return Procedure

    Infinity iW-1941 RDM Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 9: Description Of The Device

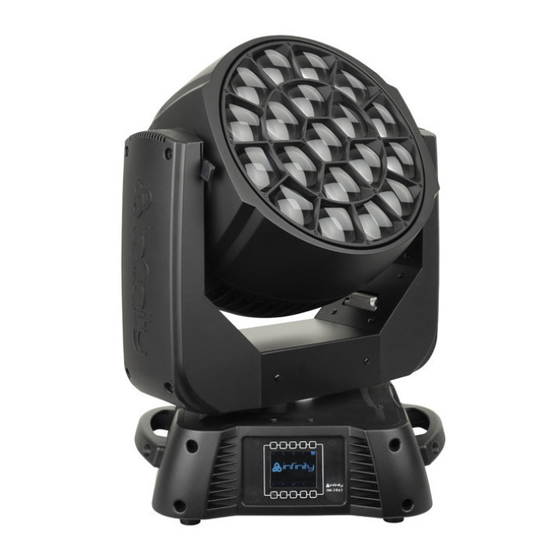

    Infinity iW-1941 RDM Description of the device Features The Infinity iW-1941 RDM is a wash moving head with high output and great effects.  Pixel control  Zoom 3,6° to 60°  Selectable PWM rate by DMX  Battery powered touch display ...

  • Page 10: Overview

    Infinity iW-1941 RDM Overview Fig. 01 01) 19x 40W RGBW 4-in-1 Osram 02) Control buttons + LCD display Beam angle 3,6°-Electronic adjustment Beam angle 60°- Electronic adjustment Fig. 02 Ordercode: 41529...

  • Page 11: Backside

    Infinity iW-1941 RDM Backside Fig. 03 03) 3-pin DMX signal connector IN 04) 3-pin DMX signal connector OUT 05) Fuse T5AL/250V 06) Ground/earth connection 07) 5-pin DMX signal connector OUT 08) RJ45 ArtNet connector 09) RJ45 ArtNet connector 10) Neutrik PowerCON OUT (Gray)

  • Page 12: Installation

    Infinity iW-1941 RDM Installation Remove all packing materials from the Infinity iW-1941 RDM. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.

  • Page 13: Control Modes

    03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see page 25 for more information about the built-in programs.

  • Page 14: Multiple Infinity's (Dmx Control)

    03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-pin XLR cable to connect the Infinity’s and other devices. 05) Link the units as shown in fig. 06. Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"...

  • Page 15: Multiple Infinitys (Artnet Control)

    01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a CAT-5/CAT-6 cable to connect the Infinity and other devices. 04) Connect your PC with installed ArtNet software to the first device’s RJ45 "in" socket.

  • Page 16: Connecting To A Network

    04) Set the IP address of your software/light controller to 2.x.x.x or 10.x.x.x, depending on the ArtNet settings. 05) Set the subnet mask to 255.0.0.0. on both – the Infinity and your software/light controller. Make sure that all the fixtures in the network have a unique IP address.

  • Page 17: How To Make A Data Cable

    Infinity iW-1941 RDM How to Make a Data Cable A standard ETHERNET cable can be used to replace the data cable required to transmit the data for the S601. Please follow the instructions below in order to create an extra net cable.

  • Page 18: Fixture Linking

    FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Infinity iW-1941 RDM can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 41529...

  • Page 19: Control Panel

    When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+177=178 (178); the DMX address of the third Infinity should be 178+177=355 (355), etc.

  • Page 20: Menu Overview

    Infinity iW-1941 RDM Menu Overview Ordercode: 41529...

  • Page 21: Main Menu Options

    Infinity iW-1941 RDM Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Settings Mode OK/Enter Address Setting Left Previous screen/Infinity Logo Right 1. DMX Address With this menu you can set the DMX address.

  • Page 22: Artnet Settings (Artnet + Dmx Mode)

    Infinity iW-1941 RDM 1.2. ArtNet settings (ArtNet + DMX mode) 01) Activate Art + DMX (76+13) mode (see 2. Edit Mode, page 16). 02) Press the button, to confirm. You can now set the DMX starting address and/or the device’s ArtNet address.

  • Page 23: Settings Menu

    Infinity iW-1941 RDM 3. Settings Menu With this menu you can set your desired settings. 01) Press the button and select 02) Press the button, to confirm. You can choose from 19 different modes. 03) Press the buttons to select the required mode: 04) Once you have selected the desired mode, press the button to proceed to edition.

  • Page 24: Color Balance

    Infinity iW-1941 RDM 3.1. Color Balance With this menu you can set the device’s color brightness. 01) Press the buttons to select Color Balance and press the button to open the menu. 02) You can now adjust 4 colors: Red, Green, Blue, White.

  • Page 25: Artnet Settings

    Infinity iW-1941 RDM 3.3. ArtNet Settings With this menu you can set the device’s network settings. 01) Press the buttons to select Network Settings and press the button to open the menu. 02) The following screen will pop up: 03) Press the buttons to choose one of the 4 options: ●...

  • Page 26: Built-In Programs

    Infinity iW-1941 RDM 4. Built-in Programs With this menu you can choose your desired built-in program. 01) Press the button and select 02) Press the button, to confirm. You can choose 10 different built-in programs. 03) Press the Up / Down buttons to select the required program:...

  • Page 27: Test Menu

    Infinity iW-1941 RDM 5. Test Menu With this menu you can test the device automatic or manual. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different test modes. 03) Press the buttons to select the required test mode.

  • Page 28: Information Menu

    Infinity iW-1941 RDM 6. Information Menu With this menu you can see several device settings. 01) Press the button and select 02) Press the button, to confirm. 03) You can view 7 parameters. Ordercode: 41529...

  • Page 29: Dmx Channels

    Infinity iW-1941 RDM DMX Channels 25 Channels Basic Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 30 Infinity iW-1941 RDM Channel 15 – Color correction ( CH21 must be set between 1-255 and CH23 between 20-255 No function White 2700K(R=156，G=118，B=0，W=63 White 3200K(R=156，G=141，B=5，W=89) White 4200K(R=156，G=141，B=14，W=255) White 5600K(R=156，G=207，B=54，W=255) White 8000K(R=130，G=255，B=96，W=255) 9-10 Blue（R=0，G=0，B=255，W=0) 12-48 R=0，G+，B=255，W=0 Cyan (R=0，G=255，B=255，W=0) 50-86 R=0，G=255，B-，W=0 Green (R=0，G=255，B=0，W=0) 88-124 R+，G=255，B=0，W=0...
  • Page 31 Infinity iW-1941 RDM Channel 17 – LED Built-in ( CH21 must be set between 1-255 and CH23 between 20-255 0-15 No function LED built-in 1 LED built-in 2 LED built-in 3 LED built-in 4 LED built-in 5   ...
  • Page 32 Infinity iW-1941 RDM 12-48 R=0，G+，B=255，W=0 Cyan (R=0，G=255，B=255，W=0) R=0，G=255，B-，W=0 50-86 Green (R=0，G=255，B=0，W=0) 88-124 R+，G=255，B=0，W=0 Yellow (R=255，G=255，B=0，W=0) 126-162 R=255，G-，B=0，W=0 Red (R=255，G=0，B=0，W=0) 164-200 R=255，G=0，B+，W=0 Magenta (R=255，G=0，B=255，W=0) R-，G=0，B=255，W=0 202-238 Blue (R=0，G=0，B=255，W=0) 240-247 Color fade with decreasing speed 248-255 Color jump with decreasing speed Channel 20 – Background Color Dimmer (CH 19 and CH21 must be set between 1-255, CH23 between 20-...
  • Page 33 Infinity iW-1941 RDM Channel 25 – Channel Functions (Desired function starts after 5 seconds setting DMX value) No Function 10-14 Pan/Tilt black activated, after 3 seconds 15-19 reserved 20-24 RGBW color mixing, after 3 seconds 25-29 CMY color mixing, after 3 seconds...

  • Page 34: Dmx Channels

    Infinity iW-1941 RDM DMX Channels 96 Channels Advanced Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 35 Infinity iW-1941 RDM Channel 13 – White Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 0-255 Gradual adjustment White from 0-100%          Channel 82 – Red Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255...
  • Page 36 Infinity iW-1941 RDM Channel 88 – Gobos (CH17 must be set between 1-255 and CH18 between 20-255 No function Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5          Gobo 250...
  • Page 37 Infinity iW-1941 RDM LED built-in 202 (main) LED built-in 203 (main) 237-255 LED built-in 204 (main) Channel 90– LED Built-in Speed (CH13 must be set between 16-255, CH17 must be set between 1-255, and CH18 between 20-255 No function 1-255 Speed adjustment, from slow to fast Channel 91 –...
  • Page 38 Infinity iW-1941 RDM 165-169 Shutter open 170-184 Strobe 7(pulse strobe) with decreasing speed 185-189 Shutter open 190-204 Strobe 8(random pulse strobe) with decreasing speed 205-209 Shutter open 210-224 Strobe 9(fade on or off) with decreasing speed 225-229 Shutter open 230-244...
  • Page 39 Infinity iW-1941 RDM 65-69 Shutter open 70-84 Strobe 2(fast on, slow off) with decreasing speed 85-89 Shutter open 90-104 Strobe 3(slow on, fast off) with decreasing speed 105-109 Shutter open 110-124 Strobe 4(random strobe) with decreasing speed 125-129 Shutter open...

  • Page 40: Dmx Channels

    Infinity iW-1941 RDM DMX Channels 177 Channels Advanced 16bit Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
  • Page 41 Infinity iW-1941 RDM Channel 14 – Red Dimmer LED 1 intensity (CH173 must be set between 1-255 and CH175 between 20-255 0-255 Gradual adjustment Red from 0-100% Channel 15 – Red Dimmer LED 1 16Bit ( CH173 must be set between 1-255 and CH175 between 20-255...
  • Page 42 Infinity iW-1941 RDM Channel 160 – Green Dimmer LED 19 intensity (CH173 must be set between 1-255 and CH175 between 20-255 0-255 Gradual adjustment Green from 0-100% Channel 161 – Green Dimmer LED 19 16Bit (CH173 must be set between 1-255 and CH175 between 20-255...
  • Page 43 Infinity iW-1941 RDM Channel 168 – Gobos (CH17 must be set between 1-255 and CH18 between 20-255 No function Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5          Gobo 250...
  • Page 44 Infinity iW-1941 RDM LED built-in 202 (main) LED built-in 203 (main) 237-255 LED built-in 204 (main) Channel 170– LED Built-in Speed (CH13 must be set between 16-255, CH17 must be set between 1-255, and CH18 between 20-255 No function 1-255 Speed adjustment, from slow to fast Channel 171 –...
  • Page 45 Infinity iW-1941 RDM 110-124 Strobe 4(random strobe) with decreasing speed 125-129 Shutter open 130-144 Strobe 5(random fast on, slow off)with decreasing speed 145-149 Shutter open 150-164 Strobe 6(random slow on, fast off) with decreasing speed 165-169 Shutter open 170-184 Strobe 7(pulse strobe) with decreasing speed...

  • Page 46: Dmx Channels

    Infinity iW-1941 RDM DMX Channels 76+13 Channels ArtNet + DMX Channel 1 – Red Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255 0-255 Gradual adjustment Red from 0-100% Channel 2 – Green Dimmer LED 1 intensity (CH93 must be set between 1-255 and CH94 between 20-255...
  • Page 47 Infinity iW-1941 RDM DMX 13 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 48 Infinity iW-1941 RDM 225-229 Shutter open 230-244 Strobe 10(pulse strobe) with decreasing speed 245-255 Shutter open Channel 12– Zoom 0-255 Gradual zoom adjustment, from small to big (3,6º-60º) Channel 13 – Channel Functions (Desired function starts after 5 seconds setting DMX value)

  • Page 49: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Showtec Infinity iW-1941 RDM requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth.

  • Page 50: Troubleshooting

    04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void.
  • Page 51 Infinity iW-1941 RDM Problem Probable cause(s) Solution • Check if power is switched on and One or more cables are plugged in No power to the fixture fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.

  • Page 52: Product Specifications

    Infinity iW-1941 RDM Product Specifications Model: Infinity iW-1941 RDM Input Voltage: 100-240V AC, 50/60Hz (auto ranging) Power consumption: 625W (full output) DMX linking: 30pcs Power linking @120V 2pcs Power linking @240V 5pcs Fuse: T10AL/250V Dimensions: 365 x 304 x 468 mm (LxWxH)

  • Page 53: Dimensions

    Infinity iW-1941 RDM Dimensions Ordercode: 41529...

  • Page 54: Notes

    Infinity iW-1941 RDM Notes Ordercode: 41529...
  • Page 55 Infinity iW-1941 RDM Ordercode: 41529...
  • Page 56 ©2019 Infinity...
