Summary of Contents for Infinity iW-741 RDM V1

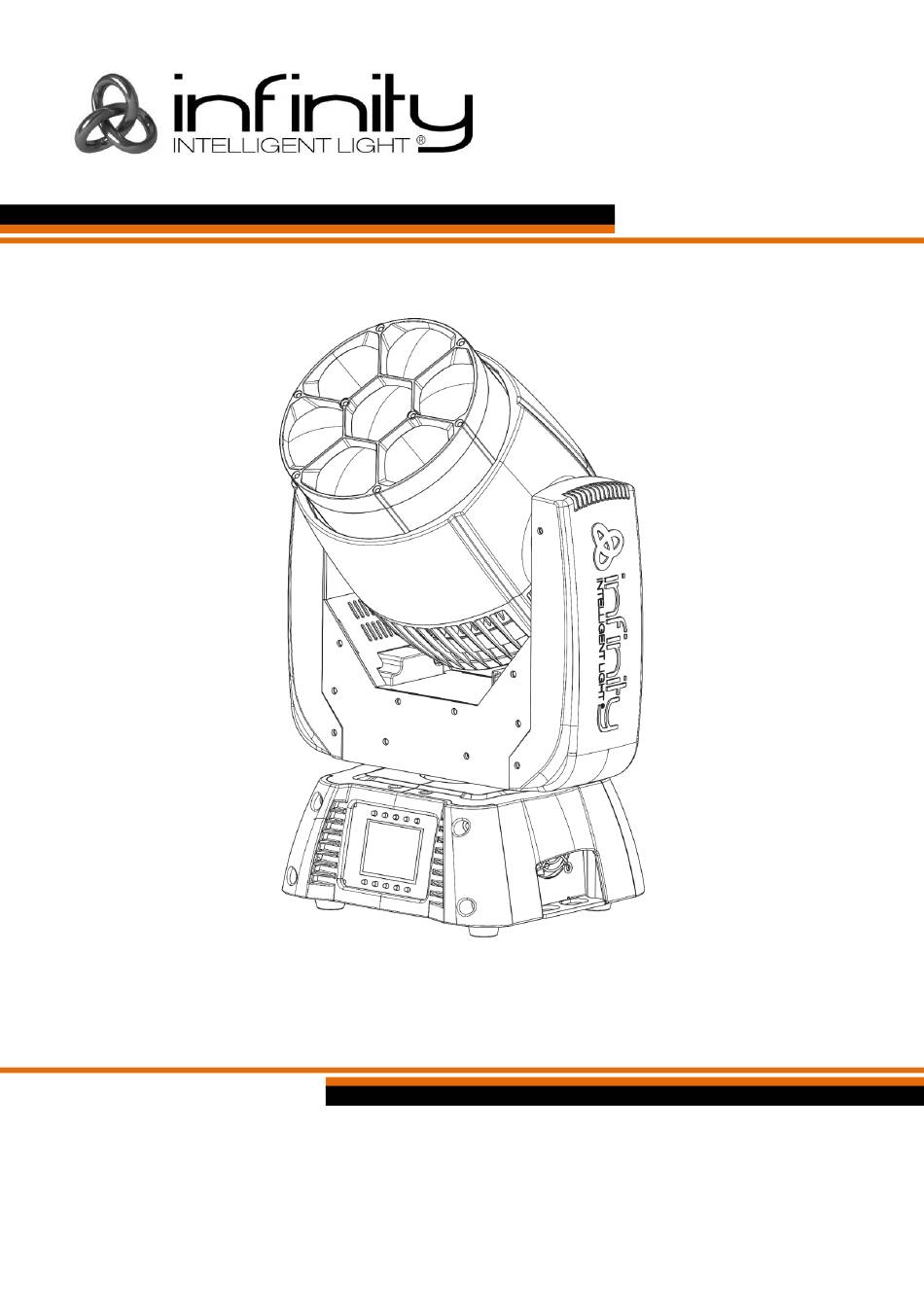

- Page 1 MANUAL ENGLISH Infinity iW-741 RDM Ordercode: 415285P Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backside ..................................9 Installation ................................... 9 Set Up and Operation ............................... 9 Control Modes ................................10 One Infinity (Built-in Programs)..........................10 Multiple Infinity’s (Master/Slave control) ......................10 Multiple Infinity’s (DMX Control) ..........................11 Fixture Linking ................................12 Data Cabling ................................12 Control Panel ................................13 Control Mode ................................13 DMX Addressing ................................13... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Infinity iW-741 RDM with PowerCON cable (1,4 m) 1 bracket for truss mounting ... - Page 4 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 415285P... -
Page 6: Connection With The Mains
Infinity iW-741 RDM Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. -
Page 7: Return Procedure
Infinity iW-741 RDM Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

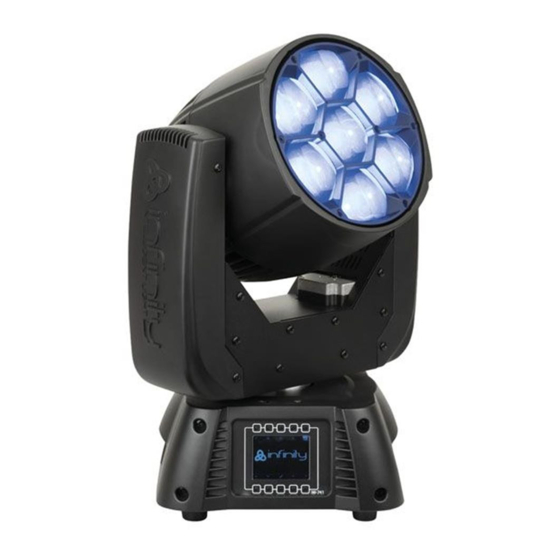

Infinity iW-741 RDM Description of the device Features The Infinity iW-741 RDM is a wash moving head with high output and great effects. Ultrafast movements Selectable PWM rate by DMX Input voltage: 100-240V AC, 50/60Hz (auto ranging) ... -
Page 9: Overview
Infinity iW-741 RDM Overview Fig. 01 01) 7 x 40W RGBW 4-in-1 Osram 02) Control buttons + LCD display Beam angle 3,6°-Electronic adjustment Beam angle 60°- Electronic adjustment Fig. 02 Ordercode: 415285P... -
Page 10: Backside
08) 5-pin DMX signal connector OUT Installation Remove all packing materials from the Infinity iW-741 RDM. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Control Modes
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see page 19 for more information about the built-in programs. -
Page 12: Multiple Infinity's (Dmx Control)
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 5-pin XLR cable to connect the Infinity’s and other devices. 05) Link the units as shown in fig. 05. Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"... -
Page 13: Fixture Linking
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Infinity iW-741 RDM can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 415285P... -
Page 14: Control Panel
When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+20=21 (021); the DMX address of the third Infinity should be 21+20=41 (041), etc. -
Page 15: Menu Overview
Infinity iW-741 RDM Menu Overview Ordercode: 415285P... -
Page 16: Main Menu Options
Infinity iW-741 RDM Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Settings Mode OK/Enter Address Setting Left Previous screen/Infinity Logo Right 1. DMX Address With this menu you can set the DMX address. -
Page 17: Edit Mode
Infinity iW-741 RDM 2. Edit Mode With this menu you can set your desired DMX personality and running mode. 01) Press the button and select 02) Press the button, to confirm. You can choose between 3 submenus. 03) Press the buttons to select the desired DMX channels. -
Page 18: Settings Menu
Infinity iW-741 RDM 3. Settings Menu With this menu you can set your desired settings. 01) Press the button and select 02) Press the button, to confirm. You can choose from 18 different options. 03) Press the buttons to select the required mode: 04) Once you have selected the desired mode, press the button to proceed to edition. -
Page 19: Life Time
Infinity iW-741 RDM 3.2. Life Time With this menu you can reset the device’s counters. 01) Press the buttons to select Life Time and press the button to open the menu. 02) Press the buttons to choose one of the 3 reset options: ●... -
Page 20: Built-In Programs
Infinity iW-741 RDM 4. Built-in Programs With this menu you can choose your desired built-in program. 01) Press the button and select 02) Press the button, to confirm. You can choose 10 different built-in programs. 03) Press the Up / Down buttons to select the required program:... -
Page 21: Test Menu
Infinity iW-741 RDM 5. Test Menu With this menu you can test the device automatic or manual. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different test modes. 03) Press the buttons to select the required test mode. -
Page 22: Information Menu
Infinity iW-741 RDM 6. Information Menu With this menu you can see several device settings. 01) Press the button and select 02) Press the button, to confirm. 03) You can view 7 parameters. Ordercode: 415285P... -
Page 23: Dmx Channels
Infinity iW-741 RDM DMX Channels 20 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 24 Infinity iW-741 RDM Channel 15 – Color correction (CH16 must be set between 1-255 and CH18 must be set between 20-255 No function White 2700K(R=156，G=118，B=0，W=63 White 3200K(R=156，G=141，B=5，W=89) White 4200K(R=156，G=141，B=14，W=255) White 5600K(R=156，G=207，B=54，W=255) 9-10 White 8000K(R=130，G=255，B=96，W=255) Blue（R=0，G=0，B=255，W=0) 12-48 R=0，G+，B=255，W=0 Cyan (R=0，G=255，B=255，W=0) 50-86 R=0，G=255，B-，W=0...
- Page 25 Infinity iW-741 RDM Channel 19– Zoom 0-255 Gradual zoom adjustment, from small to big (3,6º-60º) Channel 20 – Channel Functions (Desired function starts after 5 seconds setting DMX value) No Function 10-14 Pan/Tilt black activated, after 3 seconds 15-19 reserved...
-
Page 26: Channels
Infinity iW-741 RDM 15 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 27 Infinity iW-741 RDM Blue (R=0，G=0，B=255，W=0) 240-247 Color fade with decreasing speed 248-255 Color jump with decreasing speed Channel 12 – Dimmer (CH5, CH6, CH7, CH8, CH9, CH10 must be set between 1-255 and CH13 must be set between 20-255 0-255 Dimmer intensity, from dark to brightest Channel 13 –...
-
Page 28: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Showtec Infinity iW-741 RDM requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. -
Page 29: Troubleshooting
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 30 Infinity iW-741 RDM Problem Probable cause(s) Remedy One or more No power to the fixture. Check if power is switched on and fixtures do not cables are plugged in. function at all. Primary fuse blown. Replace fuse. Fixtures reset The controller is not connected.
-
Page 31: Product Specifications
Infinity iW-741 RDM Product Specifications Model: Infinity iW-741 RDM Input Voltage: 100-240V AC, 50/60Hz (auto ranging) Power consumption: 310W (full output) DMX linking: 30pcs Power linking @120V 3pcs Power linking @240V 7pcs Fuse: F5A/250V Dimensions: 290 x 204 x 418 mm (LxWxH) -
Page 32: Dimensions
Infinity iW-741 RDM Dimensions Ordercode: 415285P... -
Page 33: Notes
Infinity iW-741 RDM Notes Ordercode: 415285P... - Page 34 Infinity iW-741 RDM Ordercode: 415285P...
- Page 35 Infinity iW-741 RDM Ordercode: 415285P...
- Page 36 ©2020 Infinity...
