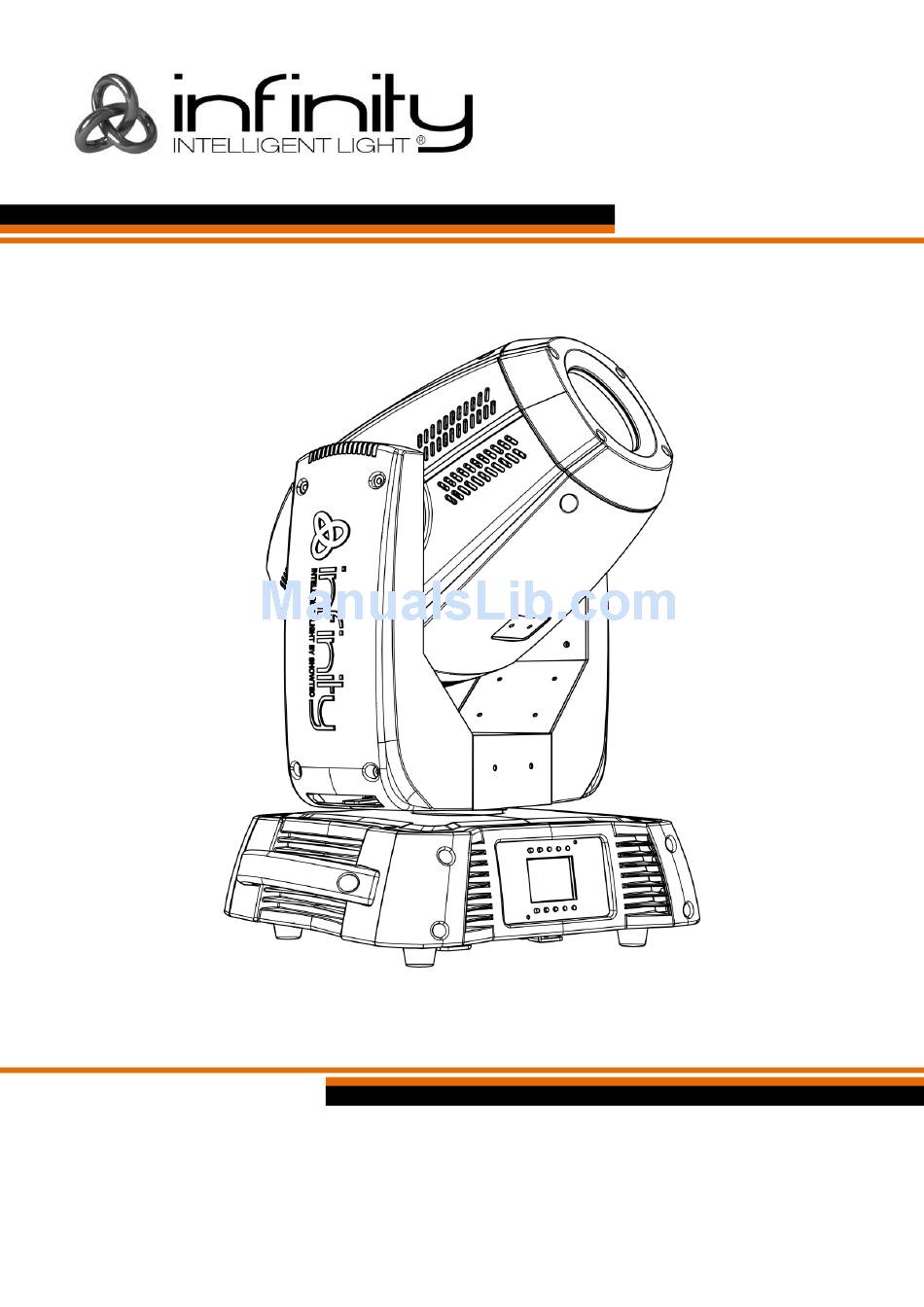

- Page 1 MANUAL ENGLISH Infinity iS-250 Ordercode: 41502 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Description of the device ..............................7 Frontside ..................................8 Backside ..................................9 Installation ..................................10 Set Up and Operation ..............................10 Control Modes ................................10 One Infinity (Built-in Programs)..........................10 Multiple Infinitys (Master/Slave control) .......................10 Multiple Infinitys (DMX Control) ..........................11 Fixture Linking ................................12 Data Cabling ................................12 Control Panel ................................13 Control Mode ................................13... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Infinity iS-250 with PowerCON power cable (1,5 m) 2 brackets for truss mounting ... - Page 4 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 41502... - Page 6 Infinity iS-250 Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious injuries to people and/or damage of property ! Ordercode: 41502...
-
Page 7: Return Procedure
Infinity iS-250 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE... -
Page 8: Description Of The Device
Infinity iS-250 Description of the device Features The Infinity iS-250 is a moving head with high output and great effects. Input voltage: 100-240V AC, 50/60Hz Power consumption: 430W Light source: 1 x 250W White LED (LumiEngin) ... -
Page 9: Frontside
Infinity iS-250 Frontside Fig. 01 01) Lens 02) LCD display + control buttons Ordercode: 41502... -
Page 10: Backside
Infinity iS-250 Backside Fig. 02 03) 5-pin DMX signal connector IN 04) 5-pin DMX signal connector OUT 05) 3-pin DMX signal connector IN 06) 3-pin DMX signal connector OUT 07) 100-240V Neutrik PowerCON IN 08) 100-240V Neutrik PowerCON OUT 09) Power switch ON/OFF 10) Fuse F7AL 250V NOTE: Knowledge of DMX is required to fully utilize this unit. -
Page 11: Installation
Infinity iS-250 Installation Remove all packing materials from the Infinity iS-250. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Multiple Infinitys (Dmx Control)
Infinity iS-250 Multiple Infinitys (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 13: Fixture Linking
DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m), FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). The Infinity iS-250 can be operated with a controller in control mode or without the controller in stand- alone mode. -
Page 14: Control Panel
When using multiple Infinity’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+27=28 (028); the DMX address of the third Infinity should be 28+27=55 (055), etc. -
Page 15: Menu Overview
Infinity iS-250 Menu Overview Ordercode: 41502... -
Page 16: Main Menu Options
Infinity iS-250 Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 17: Edit Mode
Infinity iS-250 2. Edit Mode With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button, to confirm. You can choose from 3 different modes. 03) Press the... -
Page 18: Life Time
Infinity iS-250 04) Once you have selected the desired mode, press the button to proceed to edition. 05) Press the buttons to change the value from NO to YES. 06) Some of the available menus have different options to the regular YES or NO function: Pan Angle: 540°, 360°, 180°... -
Page 19: Reset
Infinity iS-250 3.2. Reset With this menu you can reset the device’s settings. 01) In Settings menu, press the buttons to select Reset Function and press the button to open the menu. 02) Press the buttons to choose one of the 2 options: ... -
Page 20: Test Menu
Infinity iS-250 5. Test Menu With this menu you can test the device’s functions. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) Press the buttons to choose one of the 2 modes: ... -
Page 21: System Information
Infinity iS-250 6. System information With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) The display will show: 04) You can now view the device’s current software version, current active mode, current DMX starting address, device’s temperature, total life time counter, time counter and the UID number. -
Page 22: Dmx Channels
Infinity iS-250 DMX Channels 27 channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 23 Infinity iS-250 Channel 10 – Color wheel 2 Dimmer and shutter must be open Open/White 7-13 Color 1 (½ CTO) 14-20 Color 2 (Full CTO) 21-27 Color 3 28-34 Color 4 35-41 Color 5 42-48 Color 6 49-59 Color 7...
-
Page 24: Gobo 4 Shake Effect, From Slow To Fast
Infinity iS-250 Channel 13 – Static gobo wheel + gobo shake Dimmer and shutter must be open Open / White 7-13 Gobo 1 14-20 Gobo 2 21-27 Gobo 3 28-34 Gobo 4 35-41 Gobo 5 42-48 Gobo 6 49-55 Gobo 7... - Page 25 Infinity iS-250 Channel 20 – Prism rotation Dimmer and shutter must be open and CH19 set between 5-255 0-127 Prism indexing 128-189 Clockwise rotation, from fast to slow 190-193 Not functional 194-255 Counterclockwise rotation, from slow to fast Channel 21 – Iris...
-
Page 26: Channels
Infinity iS-250 72-79 Built-in program 9 80-87 Built-in program 10 88-95 Built-in program 11 96-103 Built-in program 12 104-111 Built-in program 13 112-119 Built-in program 14 120-127 Built-in program 15 128-135 Built-in program 16 136-143 Built-in program 17 144-151 Built-in program 18... -
Page 27: 96-103 Gobo 3 Shake Effect, From Slow To Fast
Infinity iS-250 Channel 7 – Shutter/Strobe Dimmer must be open Shutter closed 8-15 Shutter open 16-131 Synchronized strobe, from low to high frequency 132-167 Fast off/slow on, from low to high frequency 168-203 Slow off/fast on, from low to high frequency... -
Page 28: Channel 12 - Gobo Rotation Dimmer And Shutter Must Be Open, Ch11 Must Be Set Between
Infinity iS-250 Channel 11 – Gobo rotation Dimmer and shutter must be open, CH10 must be set between 8-63 0-63 Gobo indexing 64-147 Clockwise rotation, from slow to fast 148-231 Counterclockwise rotation, from slow to fast 232-255 Gobo wheel bounce effect, from small to big amplitude Channel 12 –... - Page 29 Infinity iS-250 Channel 17 – Prism rotation Dimmer and shutter must be open and CH16 set between 5-255 0-127 Prism indexing 128-189 Clockwise rotation, from fast to slow 190-193 Not functional 194-255 Counterclockwise rotation, from slow to fast Channel 18 – Iris...
-
Page 30: Channel Settings
Infinity iS-250 Channel settings Fig. 06 Ordercode: 41502... -
Page 31: Maintenance
Infinity iS-250 Maintenance The Infinity iS-250 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. - Page 32 Infinity iS-250 Fig. 08 03) Remove the lamp cover by removing the 4 screws (see fig. 08). 04) Gently tilt the head so the small metal housing will slide out more easy. 05) Turn the gobo wheel, with the gobo you want to remove, to the upside.
- Page 33 Infinity iS-250 Color wheel 1 Color wheel 2 Fig. 10 Fig. 11 Rotating gobo wheel Static gobo wheel Fig. 12 Fig. 13 Ordercode: 41502...
-
Page 34: Troubleshooting
05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 35 Infinity iS-250 Problem Probable cause(s) Solution • Check if power is switched on and One or more No power to the fixture fixtures do not cables are plugged in function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 36: Product Specifications
Infinity iS-250 Product Specifications Model: Infinity iS-250 Input voltage: 100-240V AC, 50/60Hz Power consumption: 430W DMX linking: 30pcs Fuse: F7AL/250V Dimensions: 346 x 417 x 582 mm (LxWxH) Weight: 25,4 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) -
Page 37: Dimensions
Infinity iS-250 Dimensions Ordercode: 41502... -
Page 38: Notes
Infinity iS-250 Notes Ordercode: 41502... - Page 39 Infinity iS-250 Ordercode: 41502...
- Page 40 ©2017 Infinity...
