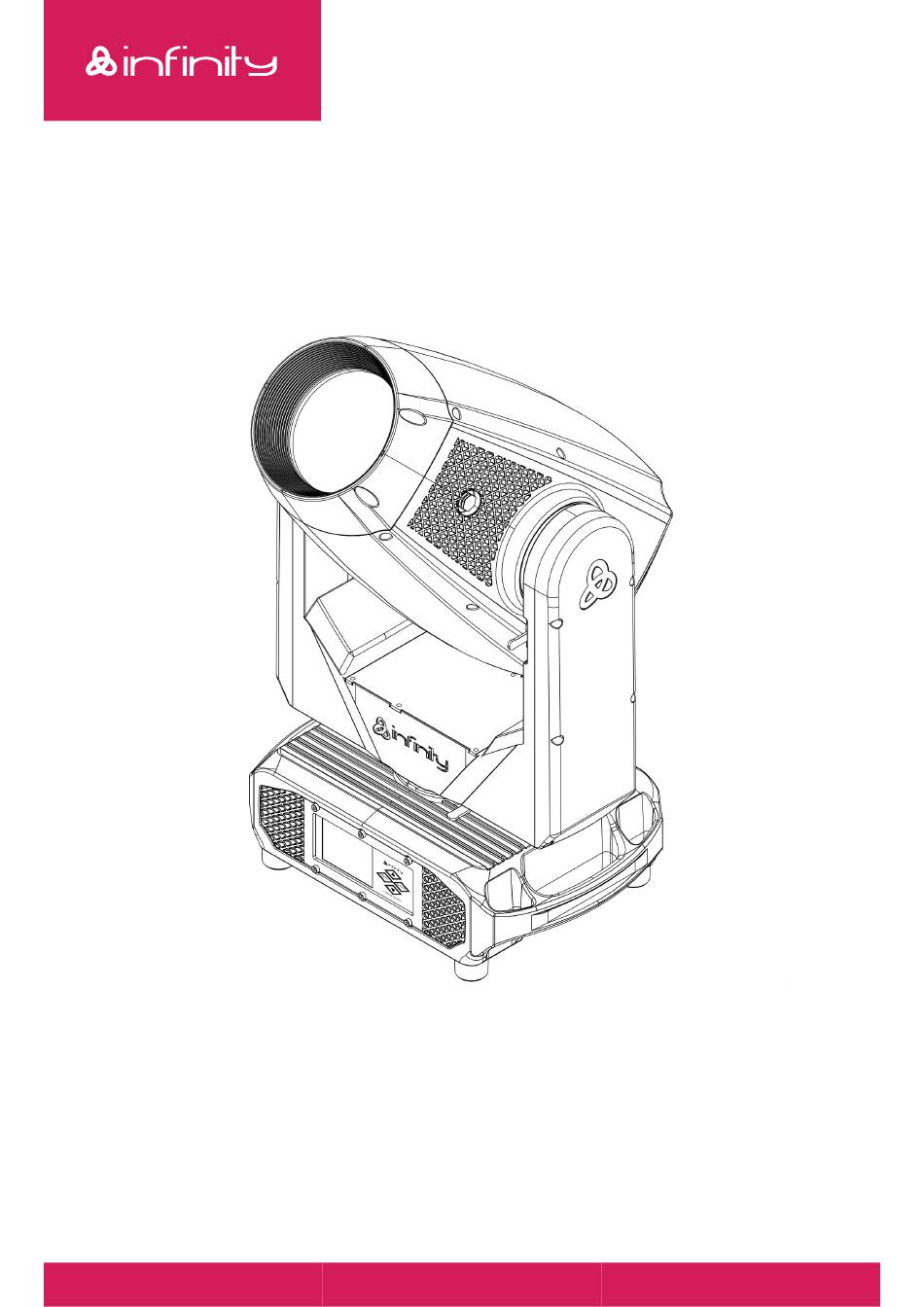

USER MANUAL
ENGLISH
V1.0
Furion S402 Spot
Product code: 41450
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furion S402 Spot and is the answer not in the manual?

Questions and answers

Related Manuals for Infinity Furion S402 Spot

Summary of Contents for Infinity Furion S402 Spot

  • Page 1 USER MANUAL ENGLISH V1.0 Furion S402 Spot Product code: 41450...
  • Page 2 Furion S402 Spot Preface Thank you for purchasing this Infinity product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    Furion S402 Spot Table of contents 1. Introduction ............................
  • Page 4 Furion S402 Spot 6.6. Menu Overview ......................... .

  • Page 5: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: Figure 1 • • Infinity Furion S402 Spot • • Schuko to Power Pro True cable (1,5 m) • •...

  • Page 6: Symbols And Signal Words

    Furion S402 Spot 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 7: Safety

    Furion S402 Spot Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions...
  • Page 8 Furion S402 Spot WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.

  • Page 9: Requirements For The User

    Furion S402 Spot • • If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.

  • Page 10: Description Of The Device

    Description of the Device The Infinity Furion S402 Spot is an IP65-rated moving head with a 350 W flat-field LED. This device has a motorized zoom that enables seamless transitions between a slender 5,1° beam and a wide 32,5° wash. This device has a color wheel with 8 colors, plus an open position, a rotating gobo wheel with 7 gobos and a static gobo wheel with 9 gobos.

  • Page 11: Back View

    Furion S402 Spot 3.2. Back View Figure 3 Protective vent (M12x1,5) IP65-rated RJ45 connector IP65-rated RJ45 connector IP65-rated Seetronic power connector OUT IP65-rated Seetronic power connector IN Fuse (F10 AL, 250 V) IP65-rated 5-pin DMX signal connector IN IP65-rated 5-pin DMX signal connector OUT...

  • Page 12: Product Specifications

    Furion S402 Spot 3.4. Product Specifications Model: Furion S402 Spot Source: Light source type LED  Light source quantity 1  Light source power 350 W Refresh rate 600 Hz Refresh rate (max.) 15 kHz Luminous flux (total) 11525 lm 73.5  7400 K Optical: Beam angle minimum (circular) 5,1°...
  • Page 13 Furion S402 Spot Gobo system Glass + metal  Gobo wheel 1 7 + open Gobo wheel 2 9 + open Gobo size 20 mm Image diameter 15 mm Movement: 540° Tilt 260° Pan/Tilt resolution 16-bit  Electrical Specifications and Connections: Power supply 100–240 V AC 50/60 Hz ...

  • Page 14: Effect Wheels

    Furion S402 Spot 3.5. Effect Wheels 3.5.1. Color Wheel Figure 5 3.5.2. Rotating Gobo Wheel Figure 6 Product code: 41450...

  • Page 15: Static Gobo Wheel

    Furion S402 Spot 3.5.3. Static Gobo Wheel Figure 7 3.5.4. Animation Wheel Figure 8 Product code: 41450...

  • Page 16: Dimensions

    Furion S402 Spot 3.6. Dimensions Figure 9 3.7. Optional Accessories You can additionally purchase the following accessory: • • 41549 Infinity IP Tester for Furion Contact your Highlite International dealer for more information. Product code: 41450...

  • Page 17: Installation

    Furion S402 Spot Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing.
  • Page 18 Furion S402 Spot Figure 11 Figure 12 04) Attach the device to the supporting structure. Make sure that the device cannot move freely. 05) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.

  • Page 19: Lock/Unlock The Device

    Furion S402 Spot 4.5. Lock/Unlock the Device The device has a locking mechanism on the yoke and on the base. • • To unlock the device, slide the base locking mechanism (17) to the the right or slide the yoke locking mechanism (03) downwards.

  • Page 20: Connecting To Power Supply

    Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 4 devices Furion S402 Spot • • at 200–240 V: 8 devices Furion S402 Spot Product code: 41450...

  • Page 21: Setup

    5.2. Stand-alone Setup When the Furion S402 Spot is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel or in auto mode. For more information refer to Control Modes (see 6.2.

  • Page 22: Dmx Linking

    Furion S402 Spot Figure 14 5.3.3. DMX Linking To connect multiple devices on one DMX data link, follow the steps below: 01) Use a 5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the 1 device.

  • Page 23: Dmx Addressing

    04) Continue assigning the starting addresses of the remaining devices by adding each time 35 to the previous number. Make sure that you do not have any overlapping channels in order to control each Furion S402 Spot correctly. If two or more devices are addressed similarly, they will work similarly.

  • Page 24: Ethernet Connection

    Furion S402 Spot 5.5. Ethernet Connection 5.5.1. Art-Net/sACN Protocol Art-Net is a protocol that uses TCP/IP to transfer a large amount of DMX-512 data over an Ethernet network. Art- Net 4 can support up to 32768 universes. Art-Net™ is designed by and copyright of Artistic Licence Holdings Ltd.

  • Page 25: Art-Net/Sacn Linking

    Furion S402 Spot 5.5.3. Art-Net/sACN Linking To connect multiple devices on one Art-Net/sACN data link, follow the steps below: 01) Use a CAT-5/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the 1 device.

  • Page 26: Operation

    Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. 6.2. Control Modes The Furion S402 Spot supports the following control modes: • • Stand-alone: Stand-alone mode (built-in programs), manual control •...

  • Page 27: Control Panel

    After the device is connected to power supply, the device will perform a reset. During the reset the display shows a splash screen with the Infinity logo and the name of the device: During the reset procedure it is possible to enter the menu to change the DMX address.

  • Page 28: Display Lock

    Furion S402 Spot I. DMX starting address of the device. • • If the DMX connection is lost or the device is not connected, the DMX starting address is red. • • If the device is receiving DMX signal, the DMX starting address is white.

  • Page 29: Unlocking Without Password

    Furion S402 Spot 6.5.2. Unlocking without Password 6.5.2.1. Option 1 Press the ENTER button to unlock the device. The display shows: 6.5.2.2. Option 2 01) Press the MENU button. 02) Press the ENTER button to unlock the device. The display shows: 6.5.3.

  • Page 30: Menu Overview

    Furion S402 Spot 6.6. Menu Overview Level 1 Level 2 Level 3 Level 4 Address (see 6.7.1. DMX Address Address Setting 001–512 page 35) Screen Reverse AUTO Pan Reverse Tilt Reverse Pan Angle Tilt Angle Auto Pan Invert Backlight Timer...
  • Page 31 Furion S402 Spot Manual IP Mode DHCP 000–255 Network Setup Universe 001–256 IP Address 002.243.075.222                 SubMask 255.000.000.000 Activate Lock Code                     Lock Code Enter Lock Code BL.O.P/T Move BL.O.Color Move BL.O.Gobo Move TILT COLOR GOBO GOBO ROTATE GOBO2 ANIMATION FOCUS-GOBO FOCUS-GOBO2...
  • Page 32 Furion S402 Spot Gobo/Gobo Rotate Frost/Animation Factory Settings Stand Alone (see 6.7.3. Stand Alone Program Number 1–9 page 41) WDMX Control Mode ArtNet sACN Basic Personality Advance User NO/1~Advance Num      Pan Fine NO/1~Advance Num Tilt NO/1~Advance Num Tilt Fine NO/1~Advance Num...
  • Page 33 Furion S402 Spot Focus Fine NO/1~Advance Num Focus Auto NO/1~Advance Num Frost NO/1~Advance Num Animation NO/1~Advance Num Virtual Animation NO/1~Advance Num Control NO/1~Advance Num Auto Test Apply 000–255 Pan Fine 000–255 Tilt 000–255 Tilt Fine 000–255 P/T Speed 000–255 Dimmer 000–255...
  • Page 34 Furion S402 Spot Fixture Hours 00000 User Hours 00000 IP Address 002.243.075.222 SubMask 255.000.000.000 29B40E6XXXXX 34.29.8F.82.4B.4A BASE FAN1 Speed 2000 DFAN2 Speed 2000 MFAN1 Speed 2000 Fan Info ZFAN1 Speed 2000 ZFAN2 Speed 2000 ZFAN3 Speed 2000 AFAN1 Speed 2000...
  • Page 35 Furion S402 Spot Frost 000–255 Animation 000–255 Virtual Animation 000–255 Control 000–255 Product code: 41450...

  • Page 36: Main Menu Options

    Furion S402 Spot 6.7. Main Menu Options The main menu has the following 6 options: DMX Address Settings Menu Stand Alone Control Mode Manual Control Information 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus.

  • Page 37: Settings Menu

    Furion S402 Spot 6.7.2. Settings Menu In this menu you can adjust the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 23 available options: • • Screen Reverse: Rotate the text on the display 180° when the device is mounted upside down (NO/YES/AUTO).

  • Page 38: Dimmer Curve

    Furion S402 Spot • • Wireless Unlink: Terminate the connection between the device and the transmitter (NO/YES) • • DMX Fail: Set the behavior of the device in case of a DMX failure. There are 2 options: OFF (the device will black out the light output) and HOLD (the device will use the last properly received DMX signal which ensures undisrupted performance) •...

  • Page 39: Fans

    Furion S402 Spot 02) Press the ENTER button to confirm. 6.7.2.3. Fans In this submenu you can adjust the fan settings. 01) Press the UP/DOWN buttons to scroll through the 4 available options: • • Auto: The fan speed is automatic, depending on the selected light output •...

  • Page 40: Lock Code

    Furion S402 Spot 6.7.2.5. Lock Code In this submenu you can set a personal lock code or change the current lock code. 01) Press the UP/DOWN buttons to insert the master code: 6468: 02) Press the ENTER button to confirm.

  • Page 41: Service Menu

    Furion S402 Spot 6.7.2.6. Service Menu In this submenu you can make fine adjustments of the home position of all moving parts or change the MAC address and the RDM identification number of the device. Note: If you forget your previously set personal lock code, you can still insert the master code: 6468 which overrides the personal code.

  • Page 42: Reset Function

    Furion S402 Spot 6.7.2.7. Reset Function In this submenu you can reset the settings of the device. 01) Press the UP/DOWN buttons to scroll through the 6 available options: • • Pan/Tilt: Reset Pan/Tilt (NO/YES) • • Iris/Prism: Reset Iris/Prism (NO/YES) •...

  • Page 43: User Personality

    Furion S402 Spot • • Personality: Basic (25 channels), Advance (35 channels), User (up to 35 channels) • • User Personality (see 6.7.4.1. User Personality) 02) Press the ENTER button to confirm the selection. 6.7.4.1. User Personality In this menu you can customize the device by changing the order of the 35 DMX channels and/or leaving some channels out.

  • Page 44: Manual Test

    Furion S402 Spot 6.7.5.2. Manual Test In this submenu you can test each function of the device individually or as a group. It is possible to customize the device by changing the value of each function manually. These functions are the same as the 35 DMX channels in Advance personality.

  • Page 45: Fixture Info

    Furion S402 Spot 6.7.6.1. Fixture Info In this submenu you can view the currently installed firmware version, operation mode, DMX address and other parameters of the device. Press the UP/DOWN buttons to see all available parameters. • • Ver: Shows the current software version •...

  • Page 46: Error Info

    Furion S402 Spot 6.7.6.3. Error Info In this submenu you can view whether there are any system errors. If you have selected Error Info and there are no errors the display shows: Note: In case of an error message, discontinue the use of the device and contact your Highlite International dealer for more information.

  • Page 47: Dmx Channels

    Furion S402 Spot 6.8. DMX Channels 6.8.1. DMX Channels Overview Basic Advance Channel Function Default Highlight 25 CH 35 CH Value 000–255 0°–540° 000–255 Fine positioning Pan Fine 16-bit 000–255 0°–260° Tilt 000–255 Fine positioning Tilt Fine 16-bit 000–255 From fast to slow Pan/Tilt Speed 000–255 0–100 %...

  • Page 48: Basic (25 Channels), Advance (35 Channels)

    Furion S402 Spot 6.8.2. Basic (25 Channels), Advance (35 Channels) Basic Advance Function Value Setting Color Control Type 25 CH 35 CH 000–255 Pan adjustment 0°–540° Pan Fine 000–255 Pan adjustment, 16-bit Tilt 000–255 Tilt adjustment 0°–260° Tilt Fine 000–255 Tilt adjustment, 16-bit Pan/Tilt Speed 000–255 From fast to slow...
  • Page 49 Furion S402 Spot Yellow 16-bit 000–255 Fine adjustment 000–009 No function CMY Macro 010–127 CMY preset proportional 128–255 CMY macro, fast to slow proportional 000–004 Open step 005–006 Gobo 1 (index) Astroids step 007–008 Gobo 2 (index) Psycho step 009–010 Gobo 3 (index) Brushed step 011–012 Gobo 4 (index) Triangles...
  • Page 50 Furion S402 Spot No function 001–255 Gobo indexing from 0 to 360° proportional gobo rotating selected - set by CH 13/19 000–014 No function 015–127 CW gobo rotating, fast to slow proportional Stop step 129–241 CCW gobo rotating, slow to fast proportional 242–255 Gobo swiveling, fast to slow...
  • Page 51 Furion S402 Spot 242–255 Prism swiveling, fast to slow proportional Prism rotating 16-bit 000–255 Fine adjustment Zoom 000–255 Wide to narrow Zoom 16-bit 000–255 Fine adjustment Iris 000–255 Big to small Iris 16-bit 000–255 Fine adjustment 000–063 No function 064–127 Auto change, slow to fast...
  • Page 52 Furion S402 Spot 000–004 No function 005–009 Pan reverse step 010–014 Pan normal step 015–019 Tilt reverse step 020–024 Tilt normal step 025–029 Auto pan invert OFF step 030–034 Auto pan invert ON step 035–039 BO PT OFF step 040–044 BO PT ON step 045–049 BO Color OFF...

  • Page 53: Rdm Information

    Furion S402 Spot 6.9. RDM Information This device supports RDM (see 6.9.2. Supported RDM PIDs (Parameter IDs)). 6.9.1. RDM Details • • Responder ID: 29B4:0E6XXXXX • • Manufacturer's ID: Infinity (Highlite International B.V.) • • Manufacturer Label: Infinity • •...

  • Page 54: Troubleshooting

    Furion S402 Spot Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

  • Page 55: Error Messages

    Furion S402 Spot 7.1. Error Messages In case one of the error messages below appears on the error information screen, discontinue the use of the device and contact your local dealer. For more information, refer to Error Info (see 6.7.6.3. Error Info on page 45).

  • Page 56: Maintenance

    Furion S402 Spot Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: •...

  • Page 57: Corrective Maintenance

    Furion S402 Spot 8.3. Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.

  • Page 58: Draining Condensation Water

    8.3.2. Draining Condensation Water The Furion S402 Spot is IP65 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during use, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

  • Page 59: Deinstallation, Transportation And Storage

    Approval Hereby, Highlite International declares that the device Furion S402 Spot, product code 41450, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
