- Page 1 MANUAL ENGLISH Infinity TF-300 Fresnel Ordercode: 200200 Firmware Version 1.01 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
TF-300 Fresnel Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Optional accessories..............................8 Overview .................................. - Page 3 TF-300 Fresnel Troubleshooting ................................25 No Light ..................................25 No Response to DMX..............................26 Product Specifications ..............................27 Dimensions ..................................28 Notes ....................................29 Ordercode: 200200...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity TF-300 Fresnel ● Neutrik PowerCON to Schuko power cable (1,4 m) ●... - Page 5 TF-300 Fresnel To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. Please consider that damages caused by manual modifications to the device are not subject to warranty.
-
Page 6: Operating Determinations
● If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Infinity dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended. -
Page 7: Connection With The Mains
TF-300 Fresnel The TF-300 Fresnel can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
TF-300 Fresnel Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

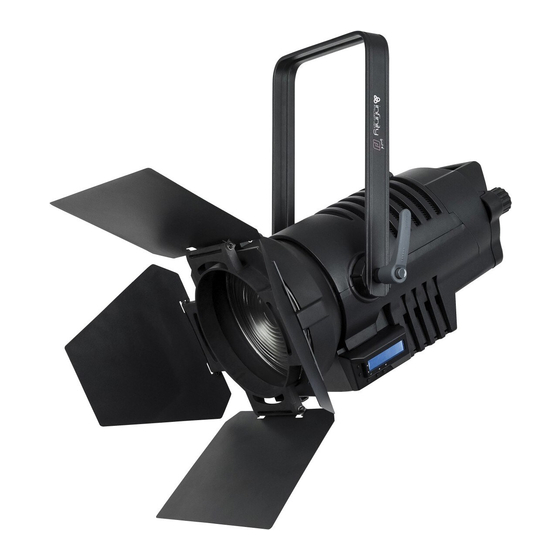

TF-300 Fresnel Description of the device Features The Infinity TF-300 Fresnel a state of the art high-resolution theatrical luminaire with high output. ● Delivers the performance of 1.2kW Tungsten Halogen unit with a consumption of 300W ● Manual and motorized zoom control ●... -
Page 10: Overview
TF-300 Fresnel Overview Fig. 01 01) Barndoor (Optional) Note: not included in your shipment, it is an optional accessory 200251 – Barndoor for Infinity Fresnel 02) 300W Lumiled White LED Ordercode: 200200... -
Page 11: Side
TF-300 Fresnel Side Fig. 02 03) Rear handle 04) Safety eye 05) Mounting bracket 06) Adjustment handle 07) Control buttons + LC-Display 08) Manual Zoom adjustment control Ordercode: 200200... -
Page 12: Backside
14) Neutrik PowerCON OUT (Grey) Installation Remove all packing materials from the Infinity TF-300 Fresnel. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 13: Installing Filterframe
TF-300 Fresnel Installing Filterframe 01) Push the upper spring lever sideways. 02) Pull the upper spring lever in the direction of the arrow. 03) Make sure the upper lever is pulled backwards and insert the filterframe (Ordercode: 200250 into the lower spring lever. -
Page 14: Installing Barndoor
TF-300 Fresnel Installing barndoor 01) Push the upper spring lever sideways. 02) Pull the upper spring lever in the direction of the arrow. 03) Make sure the upper lever is pulled backwards and insert the barndoor (Ordercode: 200251 in the lower spring lever. -
Page 15: Control Modes
TF-300 Fresnel Control Modes There are 2 modes: Manual control DMX512 (1CH, 3CH, 5CH) One Fresnel (Manual control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 16: Fixture Linking
DAP DMX adapter: 3-pin > 5-pin. Ordercode FLA30. ● DAP DMX Terminator 3-pin. Ordercode FLA42. ● DAP DMX Terminator 5-pin. Ordercode FLA43. The Infinity TF-300 Fresnel can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 200200... -
Page 17: Control Panel
TF-300 Fresnel Control Panel LC-display Home button Return button Enter button Up button Down button Fig. 07 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) -
Page 18: Menu Overview
TF-300 Fresnel Menu Overview Ordercode: 200200... -
Page 19: Activate Focus Mode
TF-300 Fresnel The Infinity TF-300 will show the Info screen at start-up ! Press the Home button (B) to switch between the Info screen and the current menu mode. Press the Return button (C) to go back to the main menu. -
Page 20: Dmx Configuration
TF-300 Fresnel 1. DMX Configuration In this menu you can choose a DMX configuration. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose one of the 3 channel modes 04) Press the ENTER button to confirm. -
Page 21: Dimmer Curves
TF-300 Fresnel 4. Dimmer Curves In this menu you can choose a dimmer curve. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose from the 4 available options: 04) Press the ENTER button to confirm. -
Page 22: Dmx Lost Mode
TF-300 Fresnel 6. DMX Lost Mode In this menu you can determine the behaviour of the Fresnel in case of a DMX failure. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 23: Zoom Motor
TF-300 Fresnel 11. Zoom Motor In this menu you can set the manual settings from the zoom motor. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu. -
Page 24: Info
TF-300 Fresnel 12. Info In this menu you can view the information about the device. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) The display will show:... -
Page 25: Dmx Channels
TF-300 Fresnel DMX Channels 1 Channel (Dimmer) Channel 1 – Dimmer 0-255 Dimmer intensity, from dark to brightest 0-100% 3 Channels (Basic) Channel 1 – Dimmer 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Shutter/Strobe Closed 6-249... -
Page 26: Maintenance
No function Maintenance The Showtec Infinity TF-300 Fresnel requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. The front glass panel will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light output very quickly. -
Page 27: No Response To Dmx
Check if power is switched on and fixtures do not cables are plugged in function at all. Internal fuse blown Return the Infinity to your Infinity dealer Fixtures reset The controller is not connected Connect controller correctly, but all 3-pin/5-pin XLR Out of the ... -
Page 28: Product Specifications
TF-300 Fresnel Product Specifications Model: Infinity TF-300 Fresnel Input Voltage: 100-240V AC, 50/60Hz Power consumption: 300W Power factor: 0,97 DMX linking: 30 pcs Dimensions: 450 x 330 x 450 mm (LxWxH) (incl. bracket) Weight: 8,2 kg Operating and Programming: Signal pin OUT:... -
Page 29: Dimensions
TF-300 Fresnel Dimensions Ordercode: 200200... -
Page 30: Notes
TF-300 Fresnel Notes Ordercode: 200200... - Page 31 TF-300 Fresnel Ordercode: 200200...
