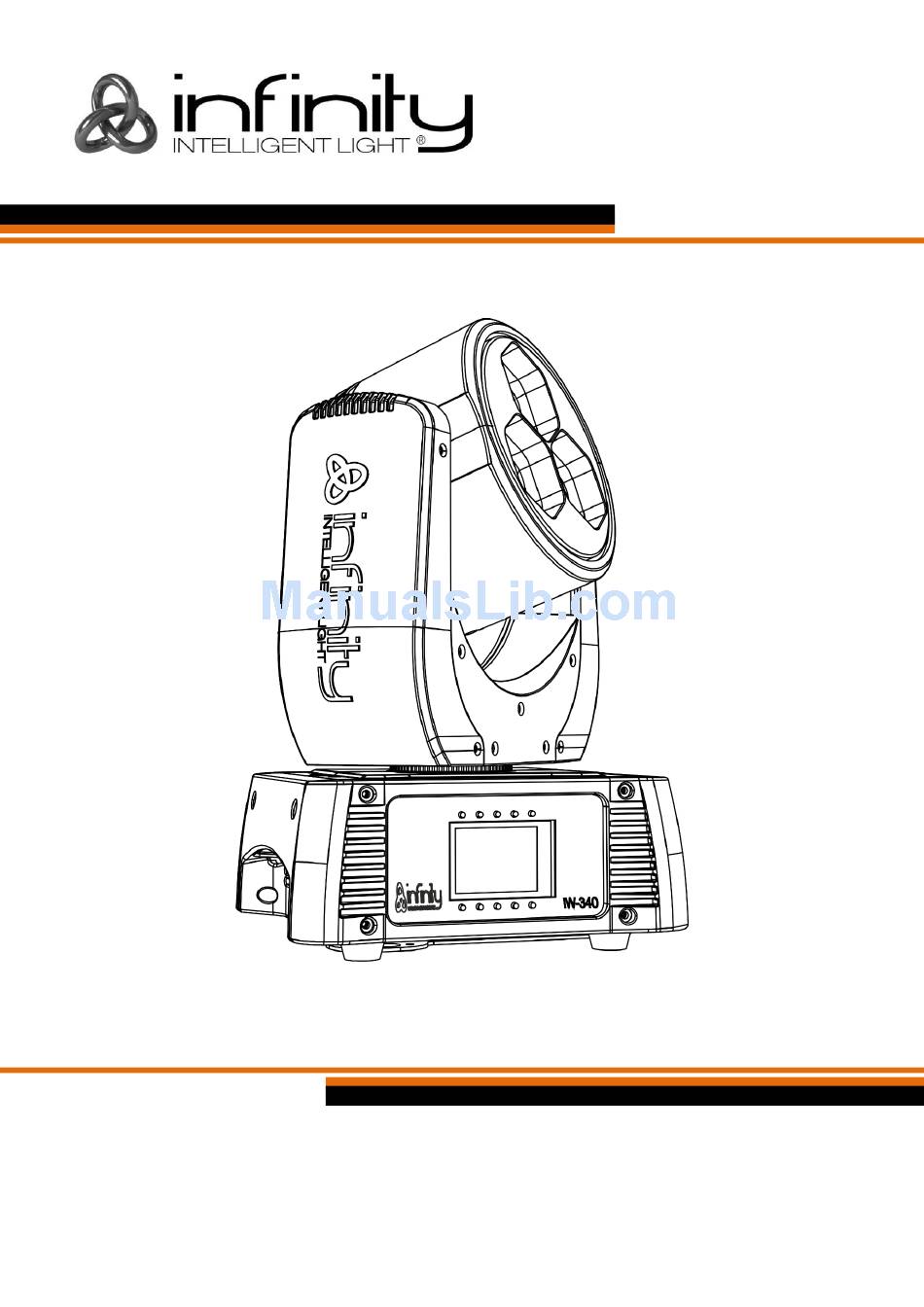

MANUAL
ENGLISH
Infinity iW-340 RDM
V1
Ordercode: 41525
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-340 RDM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity iW-340 RDM

Summary of Contents for Infinity iW-340 RDM

  • Page 1 MANUAL ENGLISH Infinity iW-340 RDM Ordercode: 41525 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Infinity iW-340 RDM Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories..............................7 Overview ..................................

  • Page 3: Warning

    Your shipment includes:  Infinity iW-340 RDM with PowerCON True 1 power cable (1,4 m)  1 bracket for truss mounting ...
  • Page 4 For replacement use fuses of same type and rating only.  The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.

  • Page 5: Operating Determinations

    When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 41525...

  • Page 6: Connection With The Mains

    Infinity iW-340 RDM Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.

  • Page 7: Return Procedure

    Infinity iW-340 RDM Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 8: Description Of The Device

    Infinity iW-340 RDM Description of the device Features The Infinity iW-340 RDM is a wash moving head with high output and great effects.  Input voltage: 100-240V AC, 50/60Hz  Power consumption: 145W  Light source: 3 x 40W RGBW 4-in-1 Osram Ostar LED ...

  • Page 9: Overview

    Infinity iW-340 RDM Overview Fig. 01 01) 3 x 40W RGBW 4-in-1 Osram Ostar LED 02) Control buttons + LCD display Beam angle 4,5°-Electronic adjustment Beam angle 36°- Electronic adjustment Fig. 02 Ordercode: 41525...

  • Page 10: Backside

    10) 5-pin DMX signal connector IN Installation Remove all packing materials from the Infinity iW-340 RDM. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 11: Control Modes

    03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see page 23 for more information about the built-in programs.

  • Page 12: Multiple Infinitys (Dmx Control)

    Infinity iW-340 RDM Multiple Infinitys (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket.

  • Page 13: Multiple Infinitys (Artnet Control)

    Infinity iW-340 RDM Multiple Infinitys (ArtNet control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a CAT-5/CAT-6 cable to connect your ArtNet controller to a network switch as shown in fig. 06.

  • Page 14: Connecting To A Network

    04) Set the IP address of your software/light controller to 2.x.x.x or 10.x.x.x, depending on the ArtNet settings. 05) Set the subnet mask to 255.0.0.0. on both – the Infinity and your software/light controller. Make sure that all the fixtures in the network have a unique IP address.

  • Page 15: Fixture Linking

    FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Infinity iW-340 RDM can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 41525...

  • Page 16: Control Panel

    When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+28=29 (029); the DMX address of the third Infinity should be 29+28=57 (057), etc.

  • Page 17: Menu Overview

    Infinity iW-340 RDM Menu Overview Ordercode: 41525...

  • Page 18: Main Menu Options

    Infinity iW-340 RDM Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Settings Mode OK/Enter Address Setting Left Previous screen/Infinity Logo Right 1. DMX Address With this menu you can set the DMX address.

  • Page 19: Edit Mode

    Infinity iW-340 RDM 2. Edit Mode With this menu you can set your desired DMX personality and running mode. 01) Press the button and select 02) Press the button, to confirm. You can choose between 2 submenus. 03) Press the buttons to select the required mode.

  • Page 20: Settings Menu

    Infinity iW-340 RDM 10) If you have chosen RUN MODE you can choose the desired operation mode. 11) Press the buttons to select the desired operation mode. 12) Press the button, to confirm. 13) Once you have selected the desired operation mode, press the buttons to change the value from NO to YES.

  • Page 21: Performance

    Infinity iW-340 RDM 3.1 Performance With this menu you can set the performance settings. 01) Choose PERFORMANCE in the settings menu. 02) Press the buttons to select the desired setting. 03) Press the button, to confirm. 04) If you choose option PAN/TILT, you will enter a submenu.
  • Page 22 Infinity iW-340 RDM DMX FAIL: Hold or Blackout. If you have chosen Blackout, the device will blackout the output, in case of a DMX signal error. If you have chosen Hold, the device will fall back on the last working DMX signal, which will ensure undisrupted performance.

  • Page 23: Service

    Infinity iW-340 RDM 3.2 Service With this menu you can set the service settings. 01) Choose SERVICE in the settings menu, you will enter a screen to insert the password. 02) Press the buttons to insert the numbers in the following order: 1234.
  • Page 24 Infinity iW-340 RDM 20) Press the button, to confirm. 21) If you choose option RESET TOTAL.T you will enter a screen to insert the password. 22) Press the buttons to insert the numbers in the following order: 1234. 23) Press the button, to confirm.

  • Page 25: Built-In Programs

    Infinity iW-340 RDM 4. Built-in Programs With this menu you can choose your desired built-in program. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different built-in programs. 03) Press the Up / Down buttons to select the required program:...

  • Page 26: Information Menu

    Infinity iW-340 RDM 03) Press the buttons to select the required test mode. 04) Press the button, to confirm. 05) If you have chosen AUTO TEST the device will automatically start its auto test program. 06) If you have chosen MANUAL TEST you will enter a submenu. You can choose between 9 test options: Pan, Tilt, Red, Green, Blue, White, Dimmer, Strobe or Zoom.

  • Page 27: Dmx Channels

    Infinity iW-340 RDM DMX Channels 21 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 28 Infinity iW-340 RDM Channel 13 – Color Macros (CH6 must be set between 1-255 and CH7 between 5-9 No function 2700K 3200K 4200K 5600K 9-10 8000K Blue 12-48 From blue to cyan Cyan 50-86 From cyan to green Green 88-124...
  • Page 29 Infinity iW-340 RDM Channel 16- Speed Dynamic LED control (CH15 must be set between 15-255 0-255 Gradual adjustment Speed, from slow to fast Channel 17- Fade time Dynamic LED control (CH15 must be set between 15-255 0-255 Gradual adjustment Fade time, from slow to fast Channel 18 –...

  • Page 30: Channels

    Infinity iW-340 RDM 180-189 PWM 25000Hz 190-199 Fan slow 200-209 Fan fast 210-219 Fan auto 220-229 Auto test 230-239 Pan/Tilt reset 240-249 Zoom reset 250-255 Total reset 28 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN).
  • Page 31 Infinity iW-340 RDM Channel 11 – Green Dimmer intensity (CH6 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Green from 0-100% Channel 12 – Green Dimmer intensity 16Bit (CH6, CH7 and CH11 must be set between 1-255 and CH8 between 5-9...
  • Page 32 Infinity iW-340 RDM Channel 19 – Static LED pixel control (CH6 and CH7, CH9, CH10, CH11, CH12, CH13, CH14, CH15, CH16 or CH18 must be set between 1-255 and CH8 between 5-9 0-11 No function 12-51 LED Pixel 1 52-91...
  • Page 33 Infinity iW-340 RDM Channel 25 – Background Color Macros (CH23, CH24 must be set between 1-255, CH19 between 12- 255 or CH20 between 15-255 and CH8 between 5-9 No function 2700K 3200K 4200K 5600K 9-10 8000K Blue 12-48 From blue to cyan...

  • Page 34: Channels

    Infinity iW-340 RDM 27 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
  • Page 35 Infinity iW-340 RDM Channel 13 – Zoom 0-255 Gradual zoom adjustment, from small to big (4,5º-36º) Channel 14 – Zoom 16Bit (CH13 must be set between 1-255 0-255 Fine gradual zoom adjustment, from small to big (4,5º-36º) Channel 15 – Channel Functions (Desired function starts after 5 seconds setting DMX value)
  • Page 36 Infinity iW-340 RDM Channel 17 – Green LED Pixel 1 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Green from 0 – 100% Channel 18 – Blue LED Pixel 1 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Blue from 0 –...
  • Page 37 Infinity iW-340 RDM Channel 23 – White LED Pixel 2 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment White from 0 – 100% Channel 24 – Red LED Pixel 3 (CH6, CH7 must be set between 1-255 and CH8 between 5-9 0-255 Gradual adjustment Red from 0 –...

  • Page 38: Channels + 12 Channels (Dmx + Artnet)

    Infinity iW-340 RDM 15 Channels + 12 channels (DMX + Artnet) Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
  • Page 39 Infinity iW-340 RDM Channel 14 – Zoom 16Bit (CH13 must be set between 1-255 0-255 Fine gradual zoom adjustment, from small to big (4,5º-36º) Channel 15 – Channel Functions (Desired function starts after 5 seconds setting DMX value) No Function...
  • Page 40 Infinity iW-340 RDM Channel 4 – White LED Pixel 1 0-255 Gradual adjustment White from 0 – 100% Channel 5 – Red LED Pixel 2 0-255 Gradual adjustment Red from 0 – 100% Channel 6 – Green LED Pixel 2 0-255 Gradual adjustment Green from 0 –...

  • Page 41: Channel Settings

    Infinity iW-340 RDM Channel 11 – Blue LED Pixel 3 0-255 Gradual adjustment Blue from 0 – 100% Channel 12 – White LED Pixel 3 0-255 Gradual adjustment White from 0 – 100% Channel settings Fig. 09 Ordercode: 41525...

  • Page 42: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Showtec Infinity iW-340 RDM requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth.

  • Page 43: Troubleshooting

    06) If all of the above appears to be O.K., plug the unit in again. 07) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void.
  • Page 44 Infinity iW-340 RDM Problem Probable cause(s) Remedy One or more No power to the fixture. Check if power is switched on and  fixtures do not cables are plugged in. function at all. Primary fuse blown.  Replace fuse. Fixtures reset The controller is not connected.

  • Page 45: Product Specifications

    Infinity iW-340 RDM Product Specifications Model: Infinity iW-340 RDM Input Voltage: 100-240V AC, 50/60Hz Power consumption: 145W (full output) DMX linking: 30pcs Power linking @120V 8pcs Power linking @240V 16pcs Fuse: T2,5AL/250V Dimensions: 250 x 190 x 350 mm (LxWxH)

  • Page 46: Dimensions

    Infinity iW-340 RDM Dimensions Ordercode: 41525...

  • Page 47: Notes

    Infinity iW-340 RDM Notes Ordercode: 41525...
  • Page 48 ©2017 Infinity...
