- Page 1 MANUAL ENGLISH Infinity iB-5R Ordercode: 41530 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Installing the Lamp ................................ 8 Lamp Adjustment ...............................10 Lock / Unlock the Moving-head ..........................10 Set Up and Operation ..............................11 Control Modes ................................11 One Infinity (Stand-alone) ............................11 Multiple Infinitys (Master/Slave control) .......................11 Multiple Infinitys (DMX Control) ..........................12 Fixture Linking ................................13 Data Cabling ................................13 Control Panel ................................14... -
Page 3: Warning
Your shipment includes: ● Infinity iB-5R with PowerCON power cable (1 m) ● 2 x quick-lock brackets for truss mounting ●... - Page 4 For replacement use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the Infinity, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Ordercode: 41530... - Page 6 Infinity iB-5R Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41530...
-
Page 7: Connection With The Mains
Infinity iB-5R Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE... -
Page 8: Description Of The Device

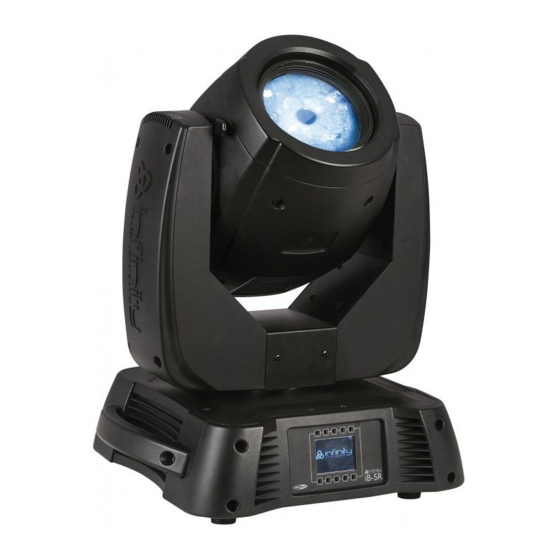

Infinity iB-5R Description of the device Features The Infinity iB-5R is a moving-head with high output and great effects. ● DMX control via standard DMX-controller ● User-selectable Pan & Tilt ranges, 540° / 360° / 180° / 90° ● Reverse Pan / Tilt movement ●... -
Page 9: Overview
NOTE: Knowledge of DMX is required to fully utilize this unit. Installation Remove all packing materials from the Infinity iB-5R. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. - Page 10 Infinity iB-5R Procedure: 01) Loosen the 8 screws on both sides of the housing and remove both covers (fig. 03). 02) Push on the lamp protection. Pull the lamp out of the housing (fig. 04). 03) Gently disconnect the 2 black cables from the lamp.
-
Page 11: Lamp Adjustment
Infinity iB-5R Lamp Adjustment Using a screwdriver, turn the adjustment screw to adjust the lamp position. The lamp position is set in the factory. As the lamps differ from manufacturer to manufacturer, it may be necessary to readjust their position. The lamp must be readjusted if the light does not seem to be evenly distributed within the ray of light. -
Page 12: Set Up And Operation
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see page 20 for more information about the built-in programs. -
Page 13: Multiple Infinitys (Dmx Control)
Infinity iB-5R Multiple Infinitys (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 14: Fixture Linking
Infinity iB-5R Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
When using multiple Infinitys, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+18=19 (019); the DMX address of the third Infinity should be 19+18=37 (037), etc. -
Page 16: Menu Overview
Infinity iB-5R Menu Overview Ordercode: 41530... -
Page 17: Main Menu Options
Infinity iB-5R Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 18: Edit Mode
Infinity iB-5R 2. Edit Mode With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button, to confirm. You can choose one of the 3 available modes. 03) Press the... -
Page 19: Life Time
Infinity iB-5R 03) Once you have selected the desired mode, press the buttons to change the value from NO to YES. 04) A couple of menus have more options than the regular YES or NO function: ● Pan Angle: 540°, 360°, 180°... -
Page 20: Lamp Settings
Infinity iB-5R 3.2. Lamp Settings With this menu you can set the lamp settings. 01) Press the buttons to select LAMP SETTINGS and press the button to open the menu. 02) You can now adjust the following options: ● ON/OFF (Set whether the lamp is ON/OFF, on start-up) ●... -
Page 21: Built-In Programs
Infinity iB-5R 4. Built-in Programs With this menu you can set the desired built-in program. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) Press the buttons to select the desired built-in program. -
Page 22: Test Menu
Infinity iB-5R 5. Test Menu With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) Press the buttons to choose one of the 2 modes: ●... -
Page 23: System Information
Infinity iB-5R 6. System Information With this menu you can set your desired mode. 01) Press the button or press the buttons to select 02) Press the button to enter the menu. 03) The display will show: 04) You can now monitor the device’s status. -
Page 24: Dmx Channels
Infinity iB-5R DMX Channels 18 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 25 Infinity iB-5R Channel 9 – Color wheel Linear color change following the movement of the slider. Between 128-189 and 194-255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 9-12 Deep Yellow/Orange 13-16 Turquoise 17-20 Green 21-24 Light Green/Yellow...
- Page 26 Infinity iB-5R 60-63 Gobo Shake 1 from slow to fast 64-67 Gobo Shake 2 from slow to fast 68-71 Gobo Shake 3 from slow to fast 72-75 Gobo Shake 4 from slow to fast 76-79 Gobo Shake 5 from slow to fast...
- Page 27 Infinity iB-5R 170-179 Reset Shutter/Prism, after 3 seconds 180-189 Not functional 190-199 Reset Frost Effect/Focus, after 3 seconds 200-209 Reset all, after 3 seconds 210-219 Blackout Pan/Tilt/Color wheel/Gobo wheel, after 3 seconds 220-229 Disable blackout Pan/Tilt/Color wheel/Gobo wheel, after 3 seconds...
-
Page 28: Channels (Basic)
Infinity iB-5R 15 Channels (Basic) Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 29 Infinity iB-5R 93-97 Rose Red/Light Yellow 98-101 Light Yellow/Pink 102-105 Pink/Blue 106-110 Blue/Warm White 111-114 Warm White/½ CTO 115-119 ½ CTO/Cool White 120-123 Cool White/UV 124-127 UV/Open 128-189 Counterclockwise rotation (CCW) rainbow effect from fast to slow 190-193 Stop 194-255 Clockwise rotation (CW) rainbow effect from slow to fast Channel 9 –...
- Page 30 Infinity iB-5R Channel 11 – Prism rotation CH10 must be set between 5-255 0-127 Prism-indexing 128-189 Counterclockwise rotation (CCW) from fast to slow 190-193 Stop 194-255 Clockwise rotation (CW) from slow to fast Channel 12 – Prism Enlargement CH10 must be set between 5-255...
-
Page 31: Channel Settings
Fig. 11 Maintenance The Infinity iB-5R requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. -
Page 32: Static Gobo Wheel And Color Wheel
05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 33 Infinity iB-5R Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check if power is switched on and fixtures do not cables are plugged in. function at all. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 34: Product Specifications
Infinity iB-5R Product Specifications Model: Infinity iB-5R Input Voltage: 100-240V AC Power consumption: 385W max. at full output Fuse: F7AL / 250V Dimensions: 346 x 417 x 490 mm (LxWxH) Weight: 20,5 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) - Page 35 Infinity iB-5R Dimensions Ordercode: 41530...
